Key conclusion: Plastic coolant reservoirs commonly crack after prolonged exposure to engine-bay heat cycles, cooling-system pressure changes, vibration, material aging, or accidental mechanical stress. A cracked reservoir can leak coolant, admit air into the cooling loop, prevent normal pressure or vacuum recovery, and contribute to engine overheating.
Common warning signs include:

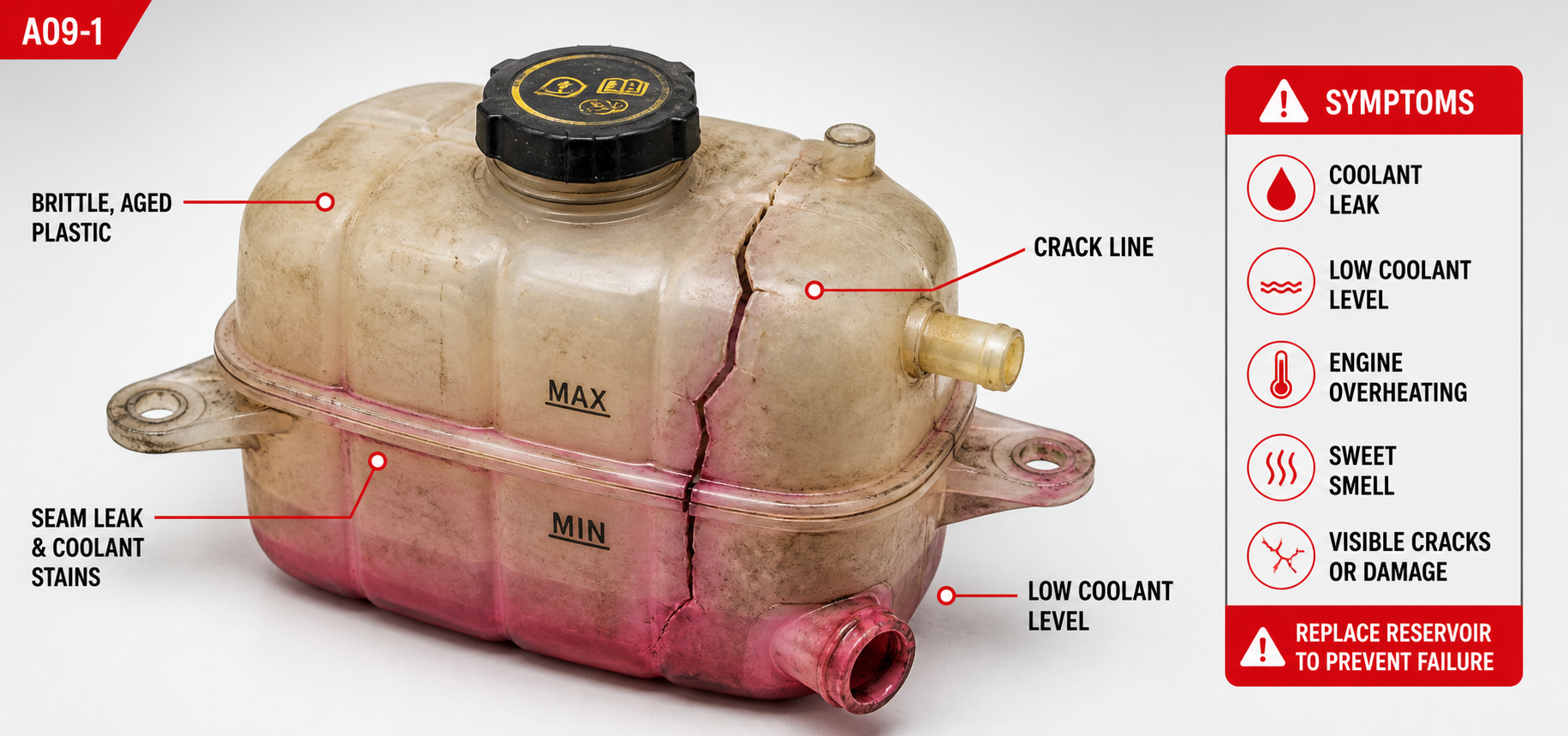

- Hairline cracks or splits along molded or sonic-welded seams.
- Dried, chalky coolant residue or wet trails around corners, seams, hose ports, or the filler neck.
- A repeatedly low coolant level.
- A sweet chemical odor under the hood.
- Plastic that has become dark yellow, cloudy, or brittle.
A cracked coolant reservoir, overflow bottle, or pressurized expansion tank should be replaced rather than patched. Temporary surface repairs may fail under repeated heat and pressure cycles, allowing coolant loss to continue.
For an explanation of the component’s role in the cooling system, see what a coolant reservoir does.
Why Plastic Coolant Reservoirs Crack
Coolant reservoirs operate in a demanding environment. During normal driving, the plastic repeatedly heats, expands, cools, and contracts. Over thousands of miles, these cycles can reduce the molded polymer’s elasticity and structural strength. Aging plastic may become yellow, cloudy, or brittle before it cracks.
Once the material loses elasticity, routine vibration and cooling-system pressure changes place more stress on weak areas. Cracks commonly develop around:
- Molded center seams and sharp structural corners.
- Plastic hose nipples and auxiliary line ports.
- Integrated mounting tabs.
- The threaded filler neck beneath the pressure cap.
Damage can also occur during routine maintenance. Pulling forcefully on an attached hose during a coolant flush or overtightening the cap during a top-off can stress aging plastic. On older, high-mileage vehicles, the reservoir may eventually fail under normal operating loads because the material has reached the end of its service life.
Other indicators are covered in the guide to bad coolant reservoir symptoms.
How to Find a Hairline Crack in a Coolant Reservoir
A micro-fissure can be difficult to see. Inspect the reservoir for:
- Fine lines running across the plastic.
- Crusty or chalky coolant residue.
- Localized dampness.
- Dark fluid stains following a molded factory seam.
- Leak traces around hose connections, mounting points, or the cap neck.
Fine cracks may appear closed while the reservoir is cold. They can become more apparent after the vehicle reaches operating temperature and is then safely shut down and allowed to cool.
Safety warning: Never remove the coolant cap or pressurize the cooling system while the engine is hot. Hot coolant and steam can escape under pressure.
When the engine and cooling system are cold:
- Use an inspection light.
- Examine the reservoir from several angles.
- If road dust hides the surface, carefully wipe the outside of the tank clean.
- Trace any residue or dampness back toward its highest visible point.
- Pay particular attention to seams, hose nipples, the filler neck, corners, and mounting tabs.
A crack around a sealing surface, such as a hose nipple or cap neck, requires complete replacement because the damaged area cannot reliably maintain an airtight pressure seal.
For a broader inspection procedure, see how to check the tank, cap, hoses, and connections. Additional replacement guidance is available in cracked coolant reservoir: when to replace it.
Can a Cracked Coolant Reservoir Cause Overheating?
Yes. A cracked reservoir can contribute directly to overheating in several ways:
- Coolant loss: Escaping fluid reduces the amount of coolant available to absorb and transfer engine heat.
- Air entry: A leak can introduce trapped air pockets into the cooling loop.
- Pressure or vacuum loss: The system may be unable to build or retain the conditions required for normal coolant recovery.
A cracked reservoir is not the only possible cause of overheating. Other potential causes include:
- A failed thermostat.
- A leaking water pump.
- A clogged radiator core.
- A broken cooling fan.
- An internal cylinder-head-gasket failure.
If the engine is running hot and the reservoir is cracked, replace the tank and inspect the rest of the cooling loop. Do not assume that one visible crack explains every symptom.
Do not drive a vehicle that is losing coolant rapidly. The risks are discussed in can you drive with a leaking, cracked, or empty coolant reservoir.
If the reservoir is empty while the radiator remains filled, investigate the recovery path and possible vacuum blockage. See why the coolant reservoir is empty.
Should a Cracked Reservoir Be Patched or Replaced?
A cracked automotive coolant reservoir should be replaced. Epoxy, JB Weld, silicone sealant, and similar surface adhesives are not reliable permanent repairs for a tank exposed to recurring pressure spikes, vibration, hot coolant, and engine-bay heat cycles. A temporary patch may separate from the plastic and allow the leak to return.
Even a small hairline crack is a serious concern. As the cooling system heats and pressure rises, the crack can widen and cause sudden coolant loss followed by rapid overheating.
Replacement Coolant Reservoir Buying Checklist
The terms coolant reservoir, overflow bottle, and expansion tank are sometimes used interchangeably in parts listings, but the underlying system designs may differ. The replacement must match the original tank’s geometry, mounting points, cap design, and internal plumbing configuration.
Before ordering, compare the replacement with the existing reservoir using the following checklist:
| Feature | What to Verify |
|---|---|
| System type | Determine whether the vehicle uses a traditional atmospheric overflow tank or a pressurized expansion-tank layout. See coolant reservoir vs. overflow tank vs. expansion tank. |
| OE part number | Cross-reference the original-equipment interchange numbers stamped on the current tank. |
| Mounting profile | Verify the position, spacing, and style of every mounting tab and locating pin. |
| Hose-port configuration | Compare the number, outside diameter, position, and exit angle of all inlet and outlet connections. |
| Cap and sensor provisions | Confirm the required cap thread and determine whether the replacement includes a cap or coolant-level-sensor port. Check whether those components must be purchased separately. |
| Overall geometry | Compare the tank shape, filler-neck position, hose connections, sensor opening, mounting tabs, and available installation space. |
A tank may look similar while having different port positions or cap threads. These differences can cause hose kinking, poor pressure sealing, or installation problems.
Use the full coolant reservoir replacement buying checklist before ordering. After confirming fitment, follow the procedure in how to replace a coolant reservoir.
Frequently Asked Questions
Frequently Asked Questions
Q: Can I permanently seal or glue a cracked coolant reservoir?
A: No. Using temporary fixes like epoxy, JB-weld, or silicone sealants is not a reliable solution for an automotive tank. These components endure constant high-pressure spikes and intense engine bay heat cycles that will quickly degrade and pop off surface adhesives. Full replacement is the only reliable fix.
Q: Why has my plastic coolant reservoir turned yellow and cloudy?
A: Years of exposure to extreme engine heat cycles, road vibration, and hot chemical fluids naturally discolor the white molded plastic. A dark yellowed tank is a clear indicator that the material has become brittle and is approaching the end of its service life. To preserve the clarity of a new unit, read our coolant reservoir maintenance guide.
Q: Is a tiny hairline crack in the reservoir bottle considered serious?
A: Yes, even micro-fissures are a serious concern. A small crack can quickly widen when the cooling system heats up and builds pressure, leading to sudden fluid loss and rapid engine overheating. If you spot signs of venting or internal boiling, follow our diagnostic checklist: why is my coolant reservoir bubbling, boiling, or overflowing.
Q: Do I need to replace my radiator hoses when I swap the reservoir?
A: It is always best to inspect your hoses and spring clamps during a tank replacement. If a hose feels hardened, swollen, or shows small cracks near the connection point, replace it along with the tank. For advice on setting safe fluid targets during your installation, see how much coolant should be in the reservoir. To avoid overfilling your fresh tank, reference our guide: what happens if you overfill the coolant reservoir.
Q: I am struggling to find the container under my hood. Where is it located?
A: Exact tank placement varies widely based on your vehicle's make, model, and engine configuration. To locate your unit quickly under the hood, check where is the coolant reservoir located. To better understand how your tank interacts with the radiator core, read coolant reservoir vs radiator: where should you add coolant.
Summary
- Coolant reservoirs crack because of material aging, repeated heat cycles, pressure changes, vibration, and mechanical stress.
- Typical signs include hairline fractures, coolant residue, wet trails, low fluid levels, a sweet odor, and brittle or discolored plastic.
- A cracked tank can cause coolant loss, admit air, interfere with pressure or vacuum recovery, and contribute to overheating.
- Never open the cooling system while it is hot.
- Replace a cracked reservoir rather than relying on adhesives or sealants.
- Before buying a replacement, verify the system type, OE number, tank shape, mounting points, hose ports, cap thread, and sensor provisions.
