Quick Answer

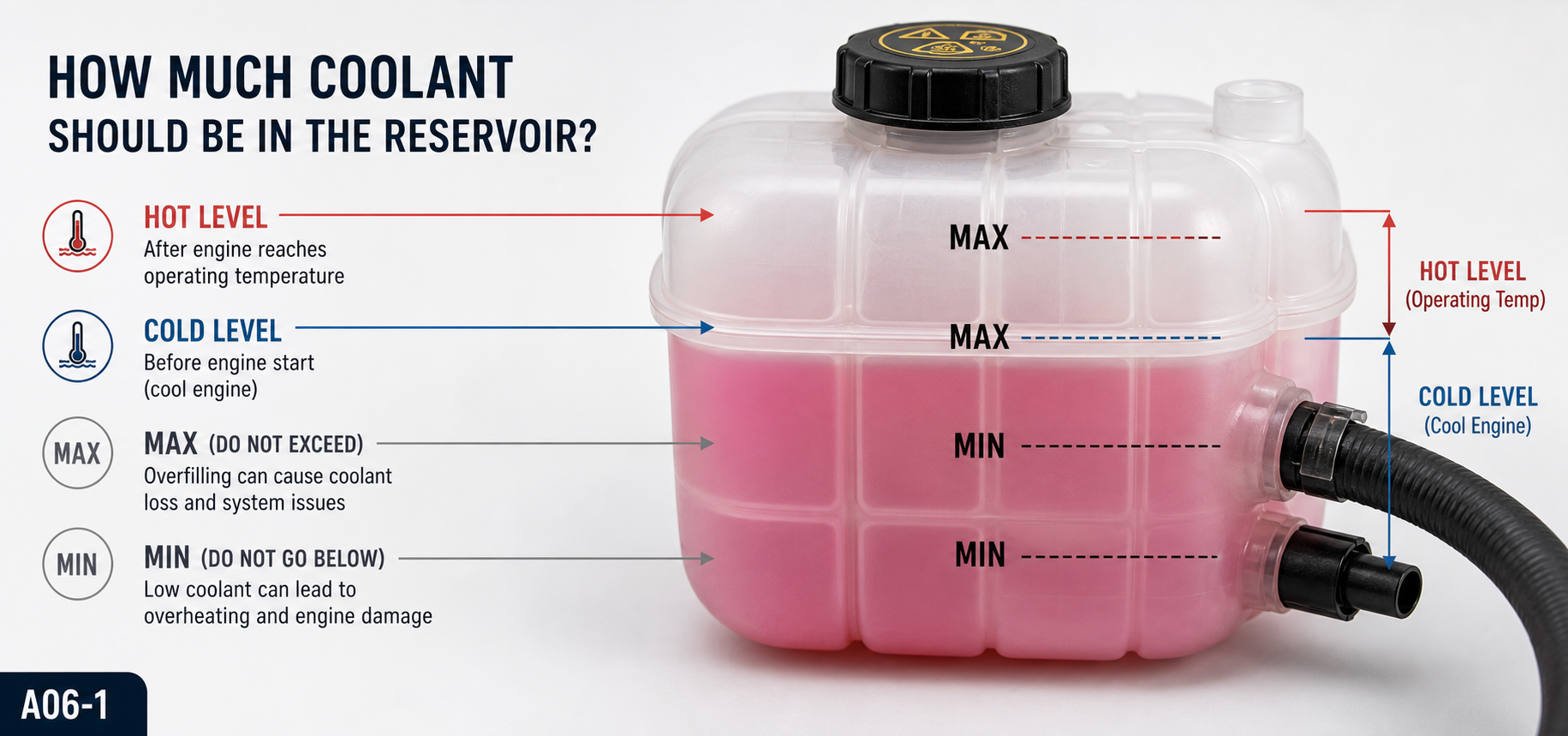

Engine coolant should normally sit precisely between the molded MIN and MAX or COLD and HOT lines located on the translucent plastic tank body. The exact operational fluid volume fluctuates because automotive fluid naturally expands as engine temperatures rise and contracts as they fall. Maintaining an incorrect level disrupts system dynamics: a low reservoir usually signals a hidden leak or drop in overall system volume, while an overfilled reservoir lacks proper expansion room and will violently purge excess fluid once hot. To properly monitor your engine's thermal health, you must understand exactly how much coolant should be in the reservoir and never open a hot, pressurized cooling system.
Why Coolant Level Changes
As an engine cycles, coolant undergoes extreme thermal expansion and contraction. To accommodate these volume changes, automotive engineers include dedicated, molded parameters for distinct thermal states. Checking your tank immediately after driving will yield a significantly higher fluid reading than a measurement taken after the vehicle has rested overnight.
A properly serviced system is never filled to the absolute top of the plastic container. Overfilling minimizes vital air space required for expanding gases, forcing fluid out of the relief valves. Conversely, an underfilled reservoir can pull air into the primary loop, causing hot spots, or obscure early warning signs of fluid loss. If you are trying to decipher if your tank is simply an atmospheric overflow unit or a pressurized component, check out our guide on a coolant reservoir vs overflow tank vs expansion tank. If the plastic housing has become too cloudy, yellowed, or weathered to accurately read the factory markings, it compromises maintenance safety and requires cleaning or immediate replacement.
Checking Coolant Level When Cold
Executing a cold inspection is the safest and most accurate way to establish a baseline fluid reading. Park the vehicle on flat, level ground, allow the engine block to cool completely, and observe the fluid level against the molded COLD, LOW, or MIN parameters. Under no circumstances should you twist or remove a hot pressurized cap.
If the fluid sits below the designated low marker, do not blindly add fluid without first diagnosing the underlying system integrity. Conduct a thorough visual inspection around the tank perimeter, the sealing cap, the rubber plumbing, the radiator core, the water pump assembly, and the floor beneath the engine bay. If you spot localized cracking or weeping on the plastic body, read our advice on a cracked coolant reservoir: when to replace it. When a reservoir is completely empty but the radiator core remains full, it typically signals a broken recovery hose, a failed cap vacuum valve, or a serious structural issue. If you discover a bone-dry tank, systematically isolate the failure using our guide on why is my coolant reservoir empty.
Checking Coolant Level When Hot
When an engine reaches its optimal operating temperature, the fluid level should naturally rise toward the HOT or MAX markers. However, if the hot fluid expands beyond these engineering limits, the container is either overfilled or the system is experiencing localized boiling due to an over-pressure condition.
Never attempt to remove a hot cap to siphon off excess fluid; severe thermal injuries can occur. If your vehicle continuously expels fluid from the overflow neck during operation, dive into our technical guide on what happens if you overfill the coolant reservoir. Furthermore, an active boiling or bubbling phenomenon inside the tank immediately after driving indicates severe pressure loss, combustion gas leakage, or a stuck thermostat. If you are experiencing this issue, isolate the problem with our technical walkthrough on why is my coolant reservoir bubbling, boiling, or overflowing.
When Level Readings Mean Replacement
When heat damage, UV exposure, and internal chemical scale render the translucent plastic too cloudy or stained to read, you can no longer accurately monitor your engine's fluid levels. Operating a vehicle with an unreadable, brittle, or weeping tank places the entire engine block at risk of sudden pressure loss. Before buying new hardware, learn exactly what to look for by reading our guide: before you buy a coolant reservoir replacement.
If you are wondering whether it is safe to commute with an unreadable or damaged tank, evaluate the operating risks in our breakdown: can you drive with a leaking, cracked, or empty coolant reservoir. Once your new component arrives, execute a seamless DIY installation by following our step-by-step instructions on how to replace a coolant reservoir.
FAQs
Q: Should the coolant reservoir be completely full when the engine is cold?
A: No. When cold, the fluid level should rest squarely on or just above the COLD/MIN mark. Filling the tank to the top removes the essential expansion room required when the system heats up.
Q: Why does my vehicle's coolant level read notably higher when hot?
A: Liquid coolant naturally expands in volume as it absorbs thermal energy from the engine block. This fluid expansion shifts volume out of the engine loop and into the reservoir tank.
Q: What are the exact mechanical consequences if I overfill the tank?
A: As the engine warms up, the expanding fluid will completely fill the container, build excessive pressure, and violently vent through the cap's relief valve. This coats your engine bay in residue and mimics a false cooling system failure.
Q: Why does my coolant reservoir level continuously drop after repeated top-offs?
A: A consistently dropping level means your vehicle is actively losing fluid. This points to a mechanical leak, an unsealed joint, or an internal engine issue. Review the baseline indicators by checking our guide on bad coolant reservoir symptoms.
Q: How can I perform a comprehensive visual check of my entire tank assembly?
A: You can systematically inspect all hose attachments and structural joints by utilizing our specialized protocol on how to check the tank cap, hose, and connections.
Q: How do the radiator and the expansion reservoir work together?
A: They operate as a joint thermal cycle. To understand their specific plumbing, individual configurations, and fluid routing rules, read our technical breakdown comparing a coolant reservoir vs radiator.
Q: How do I locate the exact position of the reservoir under my vehicle's hood?
A: Layout designs differ significantly across vehicle makes and models. If you need assistance tracking down your unit's location, see our routing guide on where is the coolant reservoir located.
Q: What is the best way to clean my cloudy tank and prolong its life?
A: You can maintain optimal tank transparency and extend component life by executing our step-by-step coolant reservoir maintenance guide.
