Quick Answer
- A fuel pump assembly sends fuel from the tank to the engine and usually combines the electric pump, fuel level sender, strainer, module housing, seal, and electrical connector in one service unit.
- Common warning signs include long cranking, no-start, sputtering under load, stalling after the vehicle gets hot, loss of power, a louder tank whine, or an inaccurate fuel gauge.
- These symptoms can also come from a weak relay, poor ground, damaged wiring, restricted filter, bad regulator, injector issue, or ignition fault, so testing matters before replacement.
- Before ordering, confirm year, make, model, engine, tank size, emissions version, connector style, outlet direction, and OE reference number when available.
- For many OE-style repairs, a complete direct-fit fuel pump module is safer than replacing only the pump motor because the sender, strainer, seal, and connector may already be worn or contaminated.
Introduction
Long cranking, power loss on acceleration, highway-speed sputtering, and random stalling all put the fuel delivery system on the suspect list. Plenty of drivers start searching for bad fuel pump symptoms only after the vehicle refuses to start. Others come to fuel pump replacement after a shop has already seen low pressure, a missing pump command, or an intermittent signal at the tank connector.
Fuel problems rarely announce themselves in a neat way. A weak pump, plugged strainer, failing fuel level sensor, damaged harness, restricted filter, or tired relay can all produce the same kind of drivability complaint. That is what makes a fuel pump assembly job half diagnosis and half parts matching.
This article walks through what the pump module does, the symptoms that are worth taking seriously, the difference between the pump, the full assembly, and the sending unit, plus the fitment checks that save headaches. Once the application is confirmed, the BDFHYK electric fuel pump assemblies collection can be used as the vehicle-specific starting point.

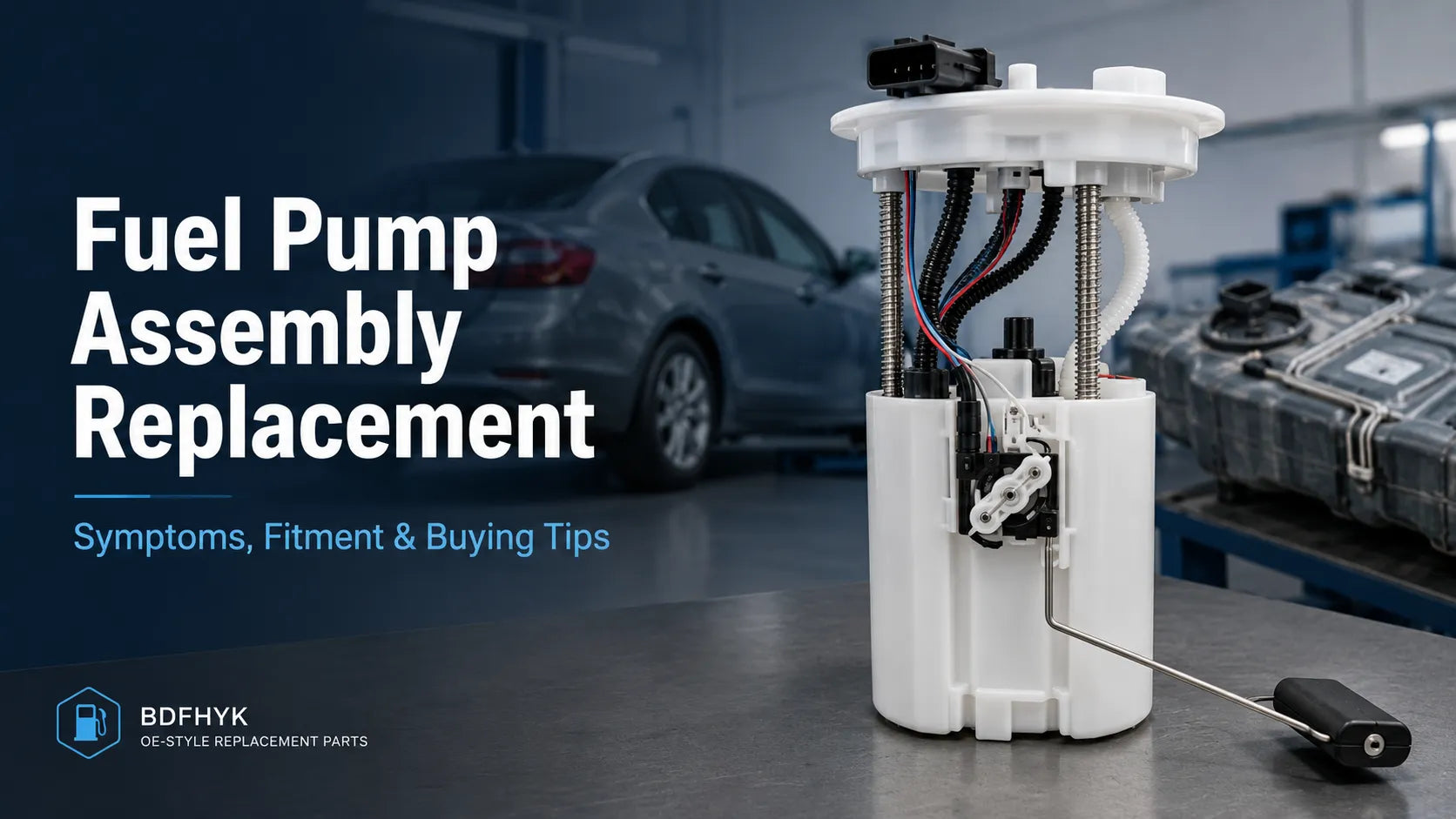

What Is a Fuel Pump Assembly?
A fuel pump assembly , often called a fuel pump module, is the service unit mounted in or near the tank. Its job is simple on paper: send fuel to the engine at the pressure the system expects. The actual module is more of a small package of parts, and one weak piece can make the whole unit look bad.
| Component | What It Does | Why It Matters |
|---|---|---|
| Electric fuel pump | Moves fuel from the tank toward the engine under pressure. | A weak pump can cause hard starting, hesitation, sputtering, or stalling. |
| Fuel level sending unit | Sends fuel level information to the dashboard gauge. | A faulty sender may cause the gauge to read empty, full, or move erratically. |
| Strainer or inlet filter | Helps keep larger debris from entering the pump. | A restricted strainer can reduce flow and overwork the pump. |
| Module housing | Holds the pump, sender, float arm, and related parts in place. | Cracks, poor sealing, or incorrect shape can affect installation. |
| Electrical connector | Supplies power and signal connections. | A mismatched connector can prevent installation or cause intermittent operation. |
| Outlet fitting and seal | Connects the module to the fuel line and tank opening. | Incorrect fittings or seals may cause leaks or low pressure. |
These pieces live together in the same housing, so one problem can drag the rest of the module into the diagnosis. The pump may still run while the sender lies to the dash gauge. The strainer may be half plugged and make the engine feel like it has a weak pump. A loose connector can create the kind of intermittent stall that disappears the moment the vehicle gets towed into the shop.
Bad Fuel Pump Assembly Symptoms
Bad fuel pump symptoms usually creep in instead of showing up all at once. The pump may get noisy, weak, hot-sensitive, or unable to keep pressure when the engine asks for more fuel. The signs below are useful clues, but they are not a verdict. Ignition, air intake, sensor, and fuel-control problems can copy the same behavior.
| Symptom | What You May Notice | Possible Fuel System Cause | What to Check Next |
|---|---|---|---|
| Hard start or long crank | The engine turns over but takes longer than normal to start. | Weak pump, pressure bleed-down, clogged strainer, or poor connection. | Check fuel pressure, relay, fuse, and residual pressure. |
| No start | The engine cranks but does not start. | Pump not running, failed relay, wiring fault, or no pressure. | Listen for pump prime and test voltage at the connector. |
| Engine sputtering | The engine hesitates, jerks, or loses smooth power. | Fuel flow may be restricted when demand increases. | Check pressure under load and inspect the filter or strainer. |
| Stalling | The vehicle may shut off while driving or idling. | Intermittent pump operation or weak electrical supply. | Inspect wiring, ground, relay, and pump operation when hot. |
| Loss of power | The vehicle struggles during acceleration or hills. | Pump may not supply enough pressure or volume. | Compare measured pressure with vehicle specifications. |
| Whining noise from tank | A loud humming or whining sound comes from the rear of the vehicle. | Pump wear, low-fuel operation, or restricted inlet. | Check fuel level habits, contamination, and pump noise. |
| Fuel gauge not working | The gauge reads empty, full, or moves unpredictably. | Faulty sending unit, float arm, or wiring issue. | Test sender signal and inspect connector pins. |
| Check engine light | Lean condition, fuel trim, or misfire codes may appear. | Low fuel pressure can affect the air-fuel mixture. | Scan codes and confirm pressure before replacement. |
One symptom by itself does not convict the module. A vehicle that sputters may have low fuel pressure, but it may also have a weak ignition coil, a vacuum leak, a sensor fault, or dirty injectors. Symptoms tell you where to start looking. Pressure, flow, power, ground, and connector checks tell you whether the pump assembly actually deserves to be replaced.
Fuel Pump vs Fuel Pump Assembly vs Fuel Pump Sending Unit
The fuel pump, complete module, and fuel pump sending unit get mixed up all the time. They are related parts, but they are not the same purchase. Knowing the difference helps prevent the classic mistake: replacing the part that moves fuel while leaving the part that caused the gauge problem untouched.
| Term | What It Usually Means | When It May Be Replaced |
|---|---|---|
| Fuel pump | The pump motor that moves fuel. | When the motor is weak, noisy, or not running, and the rest of the module can be reused. |
| Fuel pump assembly | The complete module, often including pump, strainer, sender, housing, seal, and connector. | When several module parts are worn, contaminated, damaged, or easier to service as one unit. |
| Fuel pump sending unit | The level-sensing component that reports fuel level to the gauge. | When the gauge reads incorrectly but pump pressure and operation are normal. |
| Fuel pump module | Another common name for a complete pump unit. | Often used for modern in-tank electric pump designs. |
A pressure problem and a gauge problem together usually point beyond a bare pump motor. A pump-only repair may move fuel again, but it will not fix a worn float arm, bad sender track, corroded connector, or harness issue. On the other hand, a vehicle with normal pressure and only a bad gauge reading may need sender-related diagnosis rather than a full pump replacement.
What Causes a Fuel Pump Assembly to Fail?
A fuel pump assembly wears out from heat, contamination, electrical resistance, age, and sometimes from being run low on fuel over and over. Tank-mounted pumps rely on surrounding fuel for cooling and lubrication, so low-fuel habits are not doing the motor any favors. Bosch identifies contamination, overheating, and low fuel level among the conditions that can shorten pump life.
The usual troublemakers are dirty fuel, a clogged strainer, corroded terminals, poor grounds, weak relays, damaged wiring, and plain age. Some vehicles also use an external fuel filter, and a restricted filter can make the pump work harder than it should. Delphi’s failed-pump guidance treats debris, burned terminals, and restriction marks as evidence to inspect, not just background noise.
Mechanic note: A burned pump connector, dark strainer, or gritty fuel around the old module should change the repair plan. The new pump may run, but the same contamination or voltage drop can shorten its life if the root cause is left in the tank or wiring.
| Cause | How It Affects the Unit | Prevention or Next Step |
|---|---|---|
| Low fuel level habits | May reduce cooling and expose the pump to more heat. | Avoid repeatedly driving with the tank near empty. |
| Dirt or tank debris | Can clog the strainer and restrict flow. | Inspect tank condition during replacement. |
| Electrical resistance | Can reduce voltage to the pump. | Check connector, wiring, relay, fuse, and ground. |
| Aging seal or housing | May affect fuel system sealing or module position. | Replace seals correctly and inspect the housing. |
| Restricted filter or line | Can increase pump workload and reduce delivery. | Inspect related fuel delivery parts. |
How to Confirm the Problem Before Ordering
Do not order the part just because the symptom sounds familiar. A fuel pump replacement can be a slow, messy job on vehicles that require the tank to come down. ASE-style training puts the same idea in technician language: diagnose the fuel system and rule out related electrical or delivery faults before blaming the pump.
A practical check starts with the basics. Listen for pump prime with the key on, then look at the fuse, relay, connector, and ground. A vehicle with a fuel pressure test port makes the next step easier: compare pressure with the manufacturer’s specification, then consider volume and leak-down testing where the service information calls for it. Delphi and Underhood Service both stress pressure and volume testing because a pump can show pressure briefly and still fail to deliver enough fuel under load.
| Diagnostic Step | Why It Helps | What the Result May Indicate |
|---|---|---|
| Listen for pump prime | Confirms whether the pump runs briefly at key-on. | No sound may point to pump, relay, fuse, or wiring issue. |
| Check fuse and relay | Rules out simple electrical faults. | A failed relay can mimic pump failure. |
| Test fuel pressure | Confirms whether the system reaches required pressure. | Low pressure may indicate weak pump, restriction, or regulator issue. |
| Inspect connector voltage | Confirms power and ground at the pump. | Low voltage may indicate wiring or control circuit problems. |
| Check fuel gauge behavior | Helps identify sender issues. | Incorrect gauge readings may not always mean pump failure. |
| Scan diagnostic codes | Reveals related fuel trim, sensor, or misfire issues. | Codes help narrow the system to inspect. |
Fuel work is not the place to 'learn by spilling.' Anyone uncomfortable around fuel, wiring, and pressurized lines should let a qualified shop handle the diagnosis. Gasoline vapor, poor ventilation, and improvised tools make a bad combination, and the vehicle-specific service information matters.
Common Diagnosis Patterns Before Replacement
In a shop, a bad fuel pump assembly is usually proven by a pattern. The vehicle might start fine cold, then crank longer after a hot soak because pressure bleeds down while it sits. Another common pattern is a clean idle in the driveway followed by sputtering during a hill climb or highway merge, right when fuel demand rises.
Noise needs context too. A soft hum from the tank can be normal. A sharper whine that gets worse with a low tank is more suspicious, especially with a dirty strainer or contamination around the module. Burned terminals, rust, or heavy debris on the old unit should change the repair plan, because those clues often point to a cause outside the pump motor itself.
Fuel gauge complaints are where experience helps. An engine that runs normally while the gauge drops to empty, stays full, or jumps after bumps may have a sender, float-arm, connector, or ground issue. Guessing at the pump alone can miss the actual failure.
A practical shop-style pattern looks like this: the vehicle starts normally first thing in the morning, then cranks longer after a short hot soak. The driver hears the pump prime, so the first guess is often 'the pump still works.' A better path is to check residual pressure after shutdown, verify voltage and ground at the module, and compare pressure under load. If pressure drops quickly and the connector, relay, and regulator checks do not explain it, the complete module becomes a stronger suspect than the pump motor alone. That kind of pattern-based diagnosis prevents the common mistake of buying a module before the failure has been narrowed down.
| Common driver report | What a diagnosis should check | Why it matters before ordering |
|---|---|---|
| Long crank after sitting | Residual pressure loss, relay operation, pressure regulator, and pump check-valve behavior. | The pump may be weak, but the cause should be confirmed before replacing the module. |
| Sputtering only under load | Fuel pressure under acceleration, restricted filter or strainer, and voltage at the pump. | A driveway idle test may miss a weak delivery problem. |
| Loud tank whine | Low fuel habits, contaminated tank, restricted inlet, and pump noise change with fuel level. | Replacing the module without cleaning contamination can shorten new pump life. |
| Gauge reads incorrectly | Sender signal, float movement, connector condition, and module fitment. | A sending-unit issue may not be solved by a pump-only repair. |
Fitment Checks Before Buying a Fuel Pump Assembly
Fitment is where many online fuel pump orders go wrong. Two modules can look close in a photo and still differ in tank depth, connector shape, outlet direction, seal size, sender range, or emissions configuration.
Confirm the full vehicle information before ordering, then compare it with the listing. VIN-based information, the original equipment number, and a detailed fitment chart are worth using when they are available.
| Fitment Detail | Why It Matters |
|---|---|
| Year, make, and model | Basic compatibility can change across model years and trims. |
| Engine size | Different engines may use different pressure or flow requirements. |
| Fuel tank size | Module height and sender range may vary by tank capacity. |
| Emissions specification | Some vehicles have different federal or California emissions configurations. |
| Connector style | A mismatched connector can prevent installation. |
| Outlet fitting direction | Incorrect outlet position may affect hose or line connection. |
| Fuel level sending unit type | The gauge may not read correctly if the sender does not match. |
| Included seals and strainers | Missing or incorrect installation parts may delay the repair. |
Doubt is a sign to slow down. Compare the replacement with the original module before it goes into the tank. Forcing a module into place or modifying connectors is how a parts problem turns into an electrical problem.
Common Buying Mistakes to Avoid
A fuel pump assembly is not a universal part. Small differences cause big installation problems, and many returns happen after someone matches the photo but skips the tank size, engine, emissions version, or connector notes.
| Mistake | Why It Causes Problems | Better Approach |
|---|---|---|
| Buying by appearance only | Similar modules may have different connectors, float arms, or tank depth. | Match fitment notes and OE reference numbers. |
| Ignoring engine or tank size | Different configurations may require different modules. | Confirm engine, tank, and trim details. |
| Replacing the pump without checking wiring | A wiring issue can make the new pump seem defective. | Test voltage and ground before replacement. |
| Overlooking the sender | A new pump motor may not fix a bad fuel gauge. | Decide whether the full module is needed. |
| Reusing old seals | Old seals can leak or fail to seat correctly. | Use the correct new seal when supplied. |
| Not inspecting tank contamination | Debris can damage the new pump quickly. | Check and clean the tank if contamination is found. |
The safer buying path is a direct-fit fuel pump assembly that clearly matches the vehicle and includes the installation pieces needed for that application. Shoppers already looking for a complete module can start with the Fuel Pump Assemblies – OE Replacement collection instead of choosing by appearance alone.
Fitment note: Product links are useful for narrowing the replacement search, but the final order should still be based on confirmed diagnosis, OE reference numbers where available, and the original module’s connector, tank depth, outlet direction, and sender layout.
Related Parts to Inspect Before Replacement
A pump module does not live in isolation. Restriction, electrical resistance, contamination, or a bad ground can kill the new part the same way they hurt the old one.
Check the relay, fuse, wiring harness, ground, fuel filter, fuel lines, tank condition, injectors, and pressure regulator where the system uses one. Vehicles with an external fuel filter deserve extra attention; a restricted filter should be handled according to the service schedule or the diagnosis. Related delivery, filtration, or flow components can be reviewed in the broader BDFHYK Fuel System category.
| Related Part | Why It Should Be Checked |
|---|---|
| Fuel pump relay | A weak relay can cause intermittent pump operation. |
| Fuse | A blown fuse may indicate a circuit issue. |
| Wiring harness | Corrosion, heat damage, or loose pins can reduce pump voltage. |
| Fuel filter | A clogged filter may restrict flow and strain the pump. |
| Fuel pressure regulator | Pressure problems may come from regulation, not the pump. |
| Fuel injectors | Clogged injectors can cause lean symptoms or rough running. |
| Fuel tank | Rust, debris, or contamination can damage the new module. |
DIY vs Professional Fuel Pump Replacement
Experienced DIYers can replace a fuel pump assembly at home on some vehicles, especially when there is an access panel under the rear seat or cargo floor. The job changes quickly on vehicles that need the tank lowered. Rusty straps, seized line fittings, a nearly full tank, and brittle vapor lines are often the worst part of the repair.
Fuel-system work brings together gasoline, vapor, electrical connectors, and pressurized lines. Use the service manual for the vehicle, relieve pressure before opening lines, disconnect the battery when required, and work with real ventilation. Shortcuts around fuel rarely save time.
| Situation | DIY May Be Reasonable | Professional Help Is Better |
|---|---|---|
| Vehicle has an access panel | Easier to reach the module from inside the vehicle. | Still requires care with fuel lines and seals. |
| Tank must be lowered | Possible with proper tools and support. | Recommended if the tank is heavy, full, rusted, or difficult to access. |
| Electrical diagnosis is unclear | Basic fuse and relay checks may be manageable. | Recommended for voltage-drop testing and intermittent faults. |
| Fuel leaks are present | Do not ignore leaks. | Professional inspection is strongly recommended. |
Fuel Pump Replacement Cost and Labor Factors
Fuel pump assembly replacement cost depends less on the pump name and more on vehicle design, access, diagnosis time, and what else is found inside the tank. Some vehicles have an access panel under the rear seat or cargo area. Others require lowering the fuel tank, which adds labor and safety steps.
| Cost Factor | Why It Changes the Job | What to Check |
|---|---|---|
| Tank access | An access panel usually makes the job faster than lowering the tank. | Check the service procedure for your exact vehicle. |
| Fuel level | A full tank is heavy and harder to handle safely if the tank must be lowered. | Plan the repair with fuel weight and ventilation in mind. |
| Electrical damage | Burned terminals, weak grounds, or damaged connectors can cause repeat failure. | Inspect the harness and connector before installing the new module. |
| Contamination | Rust, sediment, or old fuel can damage a new pump quickly. | Inspect the tank, strainer, and filter path before closing the repair. |
| Fitment mismatch | Wrong sender range, outlet direction, seal, or connector can create new problems. | Compare the replacement module with the original unit before installation. |
OE repair note: If the old pump failed because of burned terminals, restricted flow, or tank debris, replacing only the module may not fix the root cause. Correct the cause before trusting the new fuel pump assembly.
After Replacement: What to Check Next
A new module is not the finish line. Prime the system as the repair procedure recommends, then slow down and look for leaks before starting the engine. Burned terminals, rust, or a strainer packed with debris should be treated as evidence from the old failure, not just trash in the box.
Once the engine starts, listen to the idle, watch the fuel gauge, and scan for new trouble codes. A short road test matters because some weak-delivery problems only show up during acceleration, hill climbs, or steady highway load.
| After-Replacement Check | What to Look For |
|---|---|
| Fuel leaks | Inspect around the tank seal, fuel lines, and fittings. |
| Fuel pressure | Confirm pressure is within specification if testing equipment is available. |
| Fuel gauge | Make sure the gauge responds correctly. |
| Engine start | The engine should start without long cranking. |
| Idle and acceleration | The engine should run smoothly without hesitation. |
| Diagnostic codes | Clear old codes and confirm whether any return. |
| Road test | Check for sputtering, stalling, or loss of power. |
Shop BDFHYK Fuel Pump Assemblies
A confirmed worn or failing pump module is where a direct-fit replacement makes sense. BDFHYK fuel pump assemblies are built around vehicle-specific fitment, so the goal is to match the correct unit to the exact year, make, model, and engine rather than forcing a close-looking part to work.

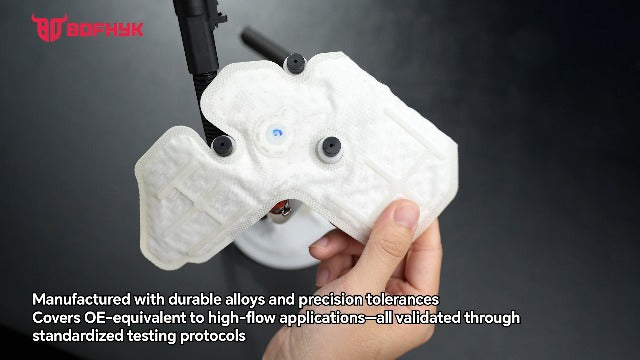

Start with the BDFHYK Electric Fuel Pump Assembly collection for a complete replacement module. Vehicle-specific examples include the F-150, F-250, F-350 fuel pump module , F-150 Heritage / Lincoln Mark LT / Ford Lobo fuel pump assembly , and the Chevrolet Venture / Oldsmobile Silhouette / Pontiac Montana fuel pump assembly .
Make the final check before ordering, not after the tank is open. Compare the listing with the original part, especially on vehicles with multiple tank sizes, emissions versions, or connector styles. The right fuel pump assembly the first time saves the kind of delay nobody wants in the middle of a repair.
FAQs About Fuel Pump Assembly Replacement
Q: How can I tell if the fuel pump assembly is really the problem?
A: Look for a pattern instead of hanging the whole diagnosis on one symptom. A weak fuel pump assembly often shows up as long cranking, sputtering under load, stalling, low power on hills, or a louder-than-usual tank whine. A bad relay, poor ground, clogged filter, or ignition fault can act the same way, so pressure and electrical checks still matter.
Q: Does every fuel pump assembly come with the fuel level sending unit?
A: Not every listing includes the same pieces. Many complete modules include the sender, float arm, strainer, seal, and connector, but vehicle applications vary. Gauge trouble is a good reason to study the photos, included components, and fitment notes instead of assuming 'assembly' automatically means every sender-related part is included.
Q: Is it better to replace the whole module or just the pump motor?
A: A clean, reusable module can sometimes take a pump-only repair. Most real repairs are not that tidy. A complete fuel pump assembly is usually the safer call when the strainer is dirty, the housing is aged, the connector is worn, or the sending unit is acting up. The cheaper repair can become expensive if the tank has to come down again.
Q: Can a weak fuel pump assembly make the engine sputter only while driving?
A: Yes. That is one reason weak pumps get missed early. A vehicle may idle politely in the driveway and then stumble when merging, climbing a hill, or cruising at highway speed. Fuel demand is higher under load, and a tired pump may not keep up even though it sounds fine at idle.
Q: Why did my fuel gauge start reading wrong after a fuel pump replacement?
A: A wrong gauge reading after replacement usually sends me back to the sender connection, float-arm movement, ground, and fitment match. A slightly different sender design or connector can cause gauge issues even with a pump that runs normally.
Q: Can I keep driving if the fuel pump assembly is starting to fail?
A: That depends on the symptoms, but it is not something to shrug off. Stalling, power loss in traffic, longer and longer starts, or unreliable fuel delivery can strand the vehicle. Fuel smell or visible leakage is different: stop driving and get the system inspected before using the vehicle again.
Q: How long does fuel pump assembly replacement usually take?
A: Vehicle design decides most of the labor time. An access panel under the rear seat or cargo area can make the job straightforward. A tank-drop job is slower, especially with rust, a nearly full tank, stuck fittings, or brittle connectors. Diagnosis takes time too, but it is still cheaper than replacing the wrong part.
Q: What should I double-check before ordering a fuel pump assembly online?
A: Match the part to the vehicle, not to the picture. Confirm the year, make, model, engine, tank size, emissions version, connector style, outlet direction, and included components. OE numbers and detailed fitment notes are worth comparing with the original module or VIN-based information before ordering.
Final Thoughts
A fuel pump assembly replacement is really about getting the whole fuel delivery system back to predictable behavior: steady pressure, an honest fuel level reading, and reliable delivery under load. Symptoms overlap with other systems, so diagnosis and fitment confirmation still do the heavy lifting. Bosch warns about frequent fuel-pump misdiagnosis, and Delphi recommends pressure, volume, and electrical integrity checks before blaming the pump itself.
For a vehicle that truly needs a pump module, inspect the related parts, confirm the exact configuration, and choose a direct-fit replacement that matches the original unit. Once the diagnosis and fitment are locked down, BDFHYK fuel pump assemblies can help match the repair to the vehicle.
