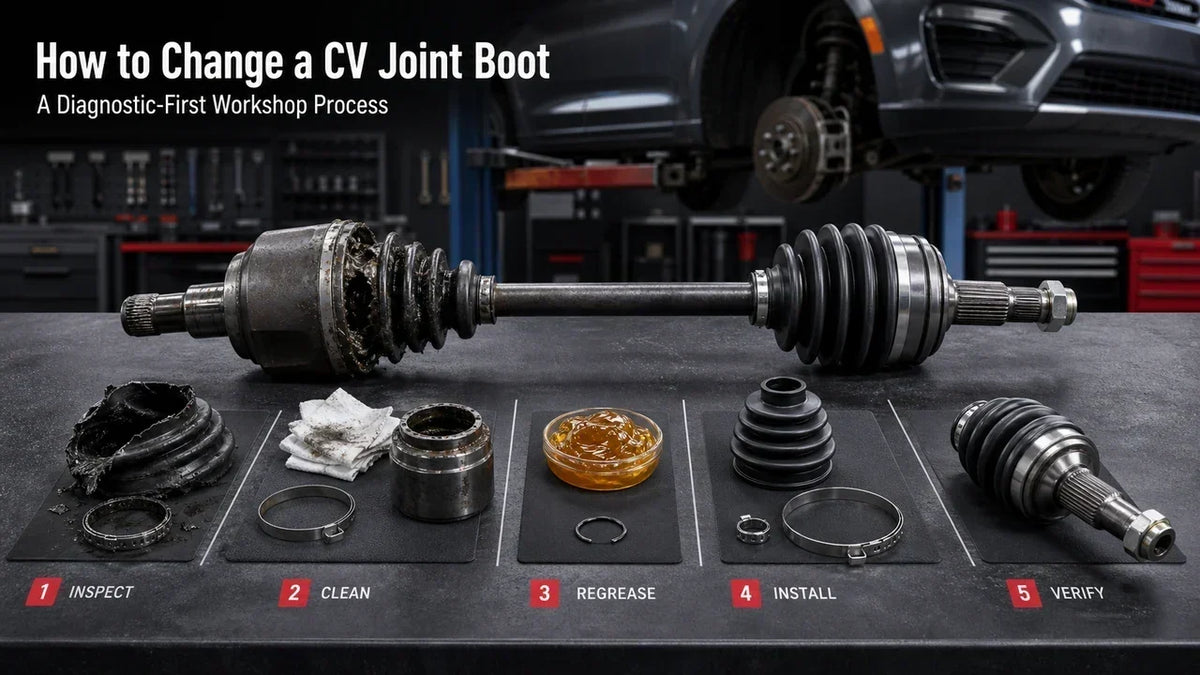

CV joint boot replacement workshop showing a removed axle, torn boot, new boot, clamps, CV grease, circlip, inner and outer joints, and pre-repair joint inspection.

How to Change a CV Joint Boot: A Diagnostic-First Workshop Outline

How to Change a CV Joint Boot: Start With a Go-or-No-Go Inspection

Changing a CV joint boot is not simply a matter of removing the old rubber cover and installing a new one. A proper CV boot repair starts by confirming that the joint is still worth saving, then follows the vehicle-specific axle removal procedure, joint inspection process, grease specification, clamp method, and reinstallation requirements.

The most important decision is made before the new boot is installed:

Is the CV joint still mechanically healthy enough for a boot-only repair?

If the joint already clicks, shudders, binds, feels rough, contains contaminated grease, or shows pitting or metallic wear, replacing only the boot may seal in an existing mechanical problem.

If the boot damage was found recently, the grease is clean, the joint remains smooth and quiet, and no internal damage is found, a proper boot service may preserve the original axle.

For the repair decision before disassembly, review how to evaluate a torn CV boot. If grease leakage is the original complaint, first use CV joint grease-leak diagnosis to confirm the source.

Workshop Checkpoint 1: Confirm the Joint Is Worth Saving

CV boot repair go-or-no-go comparison showing a clean quiet joint suitable for boot service versus clicking, binding, contaminated grease, pitting, and damaged splines.

Do not begin with the assumption that a new boot is the correct repair.

Check the original complaint

When safe and appropriate, reproduce the operating condition that led to the repair.

Check for:

  • Clicking during powered turns
  • Acceleration shudder
  • Clunk during torque reversal
  • Binding
  • Rough or notchy movement
  • Excessive joint play
  • Grease leakage
  • Boot distortion

Read the grease evidence

Inspect the leaked and remaining grease for:

  • Road grit
  • Sand
  • Water contamination
  • Rust staining
  • Milky appearance
  • Metallic particles
  • Dry joint surfaces

Stop planning a boot-only repair when:

  • The joint repeatedly clicks
  • The joint binds or moves roughly
  • Acceleration shudder is traced to the joint
  • Metallic debris is present
  • The grease is heavily contaminated
  • Internal tracks are pitted or scored
  • Splines are damaged
  • The axle shaft is bent

For help comparing the broader repair options, review CV boot repair kit vs complete CV axle replacement.

Workshop Checkpoint 2: Stage the Correct Parts Before Disassembly

CV boot repairs frequently become longer jobs when the correct clamps, grease, retaining rings, or one-time-use hardware are not available after the axle is already removed.

Confirm the exact axle application

  • Year, make, and model
  • Engine
  • Transmission
  • Drivetrain configuration
  • Left or right axle
  • Inner or outer joint
  • Production-date split where applicable

Confirm the boot kit

Verify:

  • Boot material
  • Small-end diameter
  • Large-end diameter
  • Boot length
  • Fold geometry
  • Clamp type
  • Specified grease
  • Retaining ring or circlip
  • Axle nut or other one-time-use hardware where required

Confirm the service information

Before removal, obtain the current vehicle-specific procedure for:

  • Axle removal
  • Joint disassembly
  • Retaining-ring position
  • Grease type and quantity
  • Clamp installation
  • Axle-seal protection
  • Axle-nut tightening method
  • Any required post-installation checks

Do not replace vehicle-specific torque specifications with a generic CV axle torque value.

Workshop Checkpoint 3: Prepare the Vehicle Without Damaging the Axle

CV axle removal risk map showing the axle nut, hub splines, ABS sensor, inner joint, transmission seal, suspension support, and overextension risks.

Many CV axle problems created during service are not caused by the new boot. They result from overextension, impact damage, damaged splines, axle-seal damage, or incorrect support during removal.

Support the vehicle correctly

  • Use approved lifting points
  • Use appropriate vehicle support equipment
  • Do not work under a vehicle supported only by a hydraulic jack
  • Maintain stable access to the suspension and axle

Do not let the axle carry suspension weight

When the steering knuckle or hub is separated, do not allow the assembly to hang from the CV axle.

This can:

  • Overextend the inner joint
  • Displace rollers
  • Stress the boot
  • Damage the joint cage
  • Pull against the transmission-side retention system

Protect ABS-related components

Depending on the vehicle, inspect and protect:

  • ABS tone ring
  • Magnetic encoder
  • Wheel-speed sensor
  • Sensor wiring
  • Sensor mounting surfaces

Protect splines and seals

Avoid striking axle splines, prying directly against sealing surfaces, or forcing the axle through the transmission or differential seal.

Use the removal method specified for the application.

Axle Removal: Control the Risk at Each Connection

Hub-side removal

Before forcing the outer stub from the hub, verify:

  • Axle nut is fully removed as required
  • Staked or locked retaining features are released correctly
  • Spline corrosion is addressed using an approved method
  • Wheel-speed sensor components are protected

Direct hammer impact on the threaded end can damage the threads or deform the axle stub.

Transmission or differential-side removal

The inner joint may use:

  • Circlip retention
  • Snap-ring retention
  • Flange bolts
  • Intermediate-shaft connection
  • Application-specific locking hardware

Do not assume every inner joint is removed by prying outward.

Watch for fluid loss

Some applications may lose transmission or differential fluid when the axle is removed.

Prepare for:

  • Fluid containment
  • Seal inspection
  • Fluid-level verification after assembly

Bench Checkpoint: Inspect Before Cutting the Old Boot Away

Before cleaning everything, examine the original assembly. The grease pattern and boot position may reveal why the failure occurred.

Document the old boot

Check:

  • Tear location
  • Clamp position
  • Fold distortion
  • Abrasion marks
  • Contact with nearby parts
  • Stretching or collapse
  • Evidence of boot twist

Compare the new boot before disassembly continues

Place the new and old boots side by side and compare:

  • Free length
  • Small-end opening
  • Large-end opening
  • Number of folds
  • Fold spacing
  • Clamp-groove locations
  • Material stiffness

A visually similar boot can still be wrong if the geometry differs significantly.

Disassemble the Joint Without Losing Assembly Information

Joint construction varies. Some joints can be separated from the shaft through a retaining ring or clip, while others require a different service sequence.

Record orientation where required

Before disassembly, note the original relationship between components if the service procedure requires matched or indexed reassembly.

Remove clamps correctly

Cut or release the old clamps without damaging:

  • Axle shaft
  • Joint housing
  • Clamp grooves
  • Boot sealing lands

Remove the joint using the specified method

Avoid uncontrolled hammering against:

  • Joint tracks
  • Rollers
  • Bearing surfaces
  • Splines
  • Threaded ends

Cleaning Is Part of the Inspection

CV joint cleaning and inspection showing outer joint tracks, balls, cage, inner joint rollers, plunge surfaces, splines, pitting, scoring, and contaminated grease.

A joint cannot be evaluated accurately while old grease hides the working surfaces.

Remove the old grease

Use a cleaning method and materials compatible with the joint and service instructions.

The purpose is to expose:

  • Tracks
  • Balls
  • Rollers
  • Cage
  • Joint housing
  • Shaft splines
  • Retaining-ring grooves

Inspect outer-joint components

Look for:

  • Pitting
  • Scoring
  • Discoloration
  • Cracks
  • Ball-track wear
  • Cage damage
  • Excessive looseness

Inspect inner-joint components

Depending on joint design, inspect:

  • Rollers or tripod bearings
  • Inner housing tracks
  • Plunge surfaces
  • Bearing movement
  • Shaft retention

For symptoms related specifically to the inner joint, review inner CV joint symptoms.

The Grease Decision: Use the Specification, Not Guesswork

CV boot assembly process showing specified joint grease, protected shaft splines, correct boot orientation, even fold spacing, and joint positioning before clamping.

CV joint grease is selected for the joint’s load, movement, materials, and operating conditions. More grease is not automatically better.

Confirm:

  • Correct grease type
  • Correct grease quantity
  • Where the grease should be distributed
  • Whether grease is supplied with the boot kit
  • Whether inner and outer joints use different specifications

Do not:

  • Mix unknown grease types
  • Add fresh grease over contaminated grease
  • Fill the boot completely by guess
  • Use general-purpose chassis grease without verified compatibility

Install the New Boot Before Final Joint Assembly

The boot should be installed in the correct orientation and position before the joint is fully reassembled.

Check boot direction

Some boots have different shaft-side and housing-side profiles. Do not assume the boot can be reversed.

Protect the boot from splines

Sharp spline edges can cut the new sealing lip during installation. Follow the boot or service procedure for protecting the lip as it passes over the shaft.

Do not twist the boot

A twisted boot may:

  • Pull against one clamp
  • Collapse individual folds
  • Rub itself
  • Fail prematurely

If a split, universal, or stretch design is being considered instead of a conventional application-specific boot, review split, universal, and stretch CV boot fitment.

Repack the CV Joint and Restore the Correct Position

Distribute the specified grease correctly

Place the required grease according to the joint and kit instructions rather than filling only the visible boot cavity.

Reassemble the joint

Confirm:

  • Retaining ring is correctly installed
  • Joint is fully seated on the shaft
  • Rollers, balls, or cage move correctly
  • No internal component is displaced

Set joint or boot position before clamping

Some boot installations require a defined joint position, axle length, or air-volume setting before the second clamp is tightened.

This matters because a boot installed in the wrong position may:

  • Balloon
  • Collapse
  • Pull off the housing
  • Stretch excessively during suspension travel

Clamp Installation: Sealing Pressure Without Boot Damage

CV boot clamp installation comparison showing correct clamp position, loose clamp leakage, over-tightening, wrong groove placement, and grease under the sealing land.

CV boot clamps must apply enough pressure to seal the boot without cutting or deforming the material.

Check the clamp type

Common designs vary by application and may require:

  • Dedicated ear-clamp tools
  • Band-tensioning tools
  • Application-specific tightening procedures

Before tightening, confirm:

  • Boot lip is fully seated
  • Clamp is centered in the intended groove
  • No grease is trapped under the sealing land
  • Boot is not twisted
  • Clamp size matches the boot

Too loose can cause:

  • Grease leakage
  • Boot rotation
  • Water entry

Too tight can cause:

  • Boot cutting
  • Material distortion
  • Clamp damage
  • Premature tearing

Clamp tension should follow the correct boot and tool procedure rather than visual judgment alone.

Before the Axle Goes Back In: Perform a Bench Function Check

Move the assembled joint through its serviceable range by hand.

Confirm:

  • Joint articulates smoothly
  • Inner joint plunges smoothly where applicable
  • No binding is present
  • Boot folds remain evenly positioned
  • Boot does not twist
  • Clamps remain seated
  • No fresh grease appears at the sealing edges

Reinstall the Axle Without Creating a New Problem

CV axle reinstallation diagram showing correct circlip engagement, full axle seating, transmission seal contact, partial engagement, and seal-damage risk.

Protect the axle seal

Align the inner stub carefully when entering the transmission or differential. Avoid dragging sharp splines across the seal lip.

Confirm retention engagement

Where a circlip or snap ring is used, verify that the axle has fully engaged the retention feature.

An axle that appears installed but has not fully engaged may cause:

  • Fluid leakage
  • Axial movement
  • Incorrect inner-joint position
  • Potential disengagement

Reconnect the suspension without loading the axle incorrectly

Keep the joint within a reasonable operating range during reassembly. Avoid using the axle as a lever or support.

The Axle Nut Is a Critical Installation Step

The axle or spindle nut may affect hub retention, wheel-bearing preload, spline engagement, or joint clamping depending on the vehicle design.

Always use:

  • The vehicle-specific torque specification
  • The specified tightening sequence
  • The specified torque-angle method where applicable
  • New hardware when required

An impact wrench may be useful during removal or preliminary installation where permitted, but it should not replace the specified final tightening method.

Scenario-Based Workshop Problems After CV Boot Replacement

CV boot replacement problem scenarios showing clamp leakage, stretched and collapsed boots, clicking, acceleration vibration, axle seating issues, and transmission seal leakage.

Scenario 1: Fresh grease appears around the clamp immediately after the road test

Check:

  • Clamp tension
  • Clamp position
  • Boot seating
  • Grease beneath the sealing land
  • Boot diameter

For leak-pattern diagnosis, review CV grease leak diagnosis.

Scenario 2: The new boot looks stretched at normal ride height

Possible causes include:

  • Wrong boot length
  • Incorrect boot position
  • Incorrect axle
  • Axle not fully seated
  • Modified ride height

Do not leave the boot under continuous tension.

Scenario 3: The boot collapses or folds into itself

Check:

  • Boot too long
  • Incorrect fold geometry
  • Improper air volume
  • Incorrect clamp position
  • Joint position during clamping

Scenario 4: A clicking noise remains after boot replacement

A boot repair cannot correct worn joint tracks, balls, rollers, or cage surfaces. If clicking was present before repair, the joint should have been evaluated before reuse.

Scenario 5: New vibration appears under acceleration

Do not assume the new boot itself is responsible.

Check:

  • Inner joint assembly
  • Roller placement
  • Joint plunge position
  • Axle seating
  • Intermediate-shaft support
  • Engine and transmission mounts
  • Axle shaft condition

Scenario 6: Transmission fluid leaks after the axle was reinstalled

Inspect:

  • Axle-seal lip
  • Seal contact surface
  • Axle seating
  • Seal damage from splines
  • Incorrect replacement axle dimensions

Scenario 7: ABS warning light appears after the repair

Check:

  • Wheel-speed sensor connector
  • Sensor wiring
  • Tone ring
  • Magnetic encoder
  • Sensor gap where applicable
  • Debris or accidental impact during axle removal

Scenario 8: The axle will not fully seat into the transmission

Do not force it.

Check:

  • Circlip orientation
  • Spline alignment
  • Incorrect axle or joint
  • Damaged splines
  • Retention-ring distortion
  • Foreign material in the connection

Scenario 9: The boot tears shortly after replacement

Repeat failure usually indicates a root cause beyond boot age.

Inspect:

  • Wrong boot geometry
  • Boot twist
  • Incorrect clamp location
  • Excessive axle angle
  • Suspension modification
  • Powertrain mount movement
  • Contact with nearby components

Scenario 10: The original joint was quiet, but metal appears during cleaning

Metallic debris changes the repair decision. Do not continue with a boot-only service simply because the joint had not yet produced obvious noise.

Post-Repair Validation: Do More Than Check for a Leak

Post-installation CV boot dynamic check showing normal ride height, steering movement, suspension compression, extension, plunge travel, overstretch, fold collapse, and rubbing.

Static check

Before the vehicle moves, confirm:

  • Both boot ends are seated
  • Both clamps are secure
  • Boot is not twisted
  • Axle is fully retained
  • Suspension hardware is installed correctly
  • No fluid leak is visible

Steering and suspension check

Where applicable, inspect boot shape through:

  • Normal ride height
  • Left steering angle
  • Right steering angle
  • Available suspension travel

Watch for:

  • Fold contact
  • Boot stretching
  • Boot collapse
  • Contact with suspension or underbody parts

Controlled road test

Check for:

  • Clicking during turns
  • Acceleration shudder
  • Clunking
  • Vibration
  • ABS warnings

Final reinspection

After the road test, inspect:

  • Both boot clamps
  • Boot folds
  • Wheel-side grease spray
  • Transmission-side leakage
  • Axle-seal area
  • Suspension clearance

Common CV Boot Replacement Mistakes

Workshop Mistake What It Can Cause Better Practice
Replacing the boot without inspecting the joint Existing wear sealed inside Clean and inspect before final repair decision
Choosing a boot by diameter alone Stretching, collapse, or rubbing Verify material, length, folds, diameters, and clearance
Adding new grease over contaminated grease Abrasive wear continues Clean the joint and inspect working surfaces
Letting the axle hang Inner-joint overextension or damage Support suspension and axle during service
Striking the axle threads or splines Thread and spline damage Use specified removal tools and procedures
Guessing clamp tension Leakage or boot damage Use the correct clamp tool and procedure
Twisting the boot during assembly Uneven folds and early failure Set the boot in a neutral position before clamping
Reusing required single-use hardware Retention or preload problems Follow service information and kit requirements
Using a generic axle-nut torque Wheel-bearing or retention damage Use the exact vehicle specification
Skipping the post-road-test inspection Early leak or fitment problem missed Clean and reinspect after operation

Professional Stop-Work Conditions

Pause the boot-only repair and reassess the joint or axle when inspection finds:

  • Repeated clicking
  • Acceleration shudder traced to the joint
  • Joint binding
  • Metallic grease
  • Water or severe dirt contamination
  • Pitted tracks
  • Damaged rollers, balls, or cage
  • Damaged shaft splines
  • Bent axle shaft
  • Severe housing damage

A replacement boot cannot repair these conditions.

Safety and Technical Boundaries

  • Use approved lifting points and vehicle support equipment.
  • Do not work beneath a vehicle supported only by a hydraulic jack.
  • Do not use a generic axle-nut torque value.
  • Do not assume every CV joint disassembles the same way.
  • Do not allow the axle or hub assembly to hang from the inner joint.
  • Do not strike threads, splines, ABS components, or sealing surfaces unnecessarily.
  • Do not mix unknown grease types.
  • Do not reuse single-use hardware when replacement is specified.
  • Do not guess clamp tension.
  • CV boot material, grease quantity, clamp design, retention method, joint construction, and torque specifications vary by application.

Frequently Asked Questions

Q1: How do you change a CV joint boot?

A1: The general process is to confirm the joint is serviceable, remove the axle as required, disassemble and clean the joint, inspect for wear, install the correct boot and grease, clamp it using the specified method, reinstall the axle, and verify the repair after a road test.

Q2: Can you change a CV boot without removing the axle?

A2: Some split, universal, or stretch systems can reduce disassembly, but suitability depends on the boot design, joint condition, application, and installation procedure.

Q3: Do I have to remove the CV joint to replace the boot?

A3: Many conventional boot repairs require joint or axle disassembly. The exact procedure depends on joint design and vehicle service information.

Q4: How much grease goes in a CV joint?

A4: Use the exact quantity supplied with the correct kit or specified for that joint. There is no universal fill quantity.

Q5: Can I reuse the old CV grease?

A5: Old grease should generally be removed so the joint can be inspected. Contaminated grease should not be reused.

Q6: Can I reuse CV boot clamps?

A6: New clamps supplied for the repair are generally preferred. Follow the boot and vehicle instructions for the exact clamp type.

Q7: Why is my new CV boot leaking?

A7: Possible causes include incorrect clamp tension, poor boot seating, grease under the sealing land, wrong boot dimensions, boot twist, or incorrect axle geometry.

Q8: Why did my new CV boot tear quickly?

A8: Check boot geometry, clamp position, installation twist, suspension clearance, axle angle, powertrain mounts, and contact with nearby parts.

Q9: Can a new boot fix a clicking CV joint?

A9: No. Clicking indicates mechanical wear that a new boot and grease cannot reverse.

Q10: Should the CV joint be cleaned before installing a new boot?

A10: Yes, when the service procedure permits. Cleaning allows contamination, pitting, scoring, rust, and metallic wear to be identified before the joint is resealed.

Q11: Why should the axle nut use the OE torque specification?

A11: The axle nut can affect bearing preload, hub retention, spline engagement, or joint clamping depending on the design. Incorrect tightening can create bearing or retention problems.

Q12: Can an impact gun be used to tighten the axle nut?

A12: Follow the vehicle procedure. An impact tool should not replace the specified final torque or torque-angle method.

Q13: How do I know the CV axle circlip is seated?

A13: Verify full insertion using the vehicle-specific retention check. Excessive axial movement or incomplete engagement indicates the axle should be rechecked.

Q14: Why is transmission fluid leaking after CV axle removal?

A14: The axle seal may have been damaged, the axle may not be fully seated, or the replacement axle may have an incorrect sealing surface.

Q15: Can a CV boot be installed backward?

A15: Some boot designs have different shaft-side and housing-side profiles, so orientation should be confirmed before installation.

Q16: Why is the CV boot collapsed after installation?

A16: Possible causes include excessive boot length, incorrect joint position, trapped or incorrect air volume, wrong geometry, or poor clamp placement.

Q17: Why does the vehicle vibrate after CV boot repair?

A17: Check inner-joint assembly, roller placement, axle seating, plunge position, intermediate-shaft support, mounts, and axle shaft condition.

Q18: What should be checked after replacing a CV boot?

A18: Verify boot seating, clamp security, fold position, steering and suspension clearance, axle retention, grease leakage, transmission fluid leakage, ABS operation, clicking, shudder, and binding.

Final Workshop Takeaway

Changing a CV joint boot correctly is a condition-based repair, not a simple cover replacement. The joint must first be proven serviceable, then cleaned and inspected before the correct grease, boot, clamps, and hardware are installed.

The repair is complete only after axle retention, seal integrity, boot geometry, suspension clearance, axle-nut procedure, ABS operation, and road-test behavior have been verified. Vehicle-specific service information should always override generic grease quantities, clamp settings, removal methods, or torque values.

Leave a comment

Please note, comments need to be approved before they are published.
