Inner CV Joint Symptoms: How to Separate Axle Shudder From Other Faults

Inner CV Joint Symptoms: Why Acceleration Load Matters More Than the Sound Alone

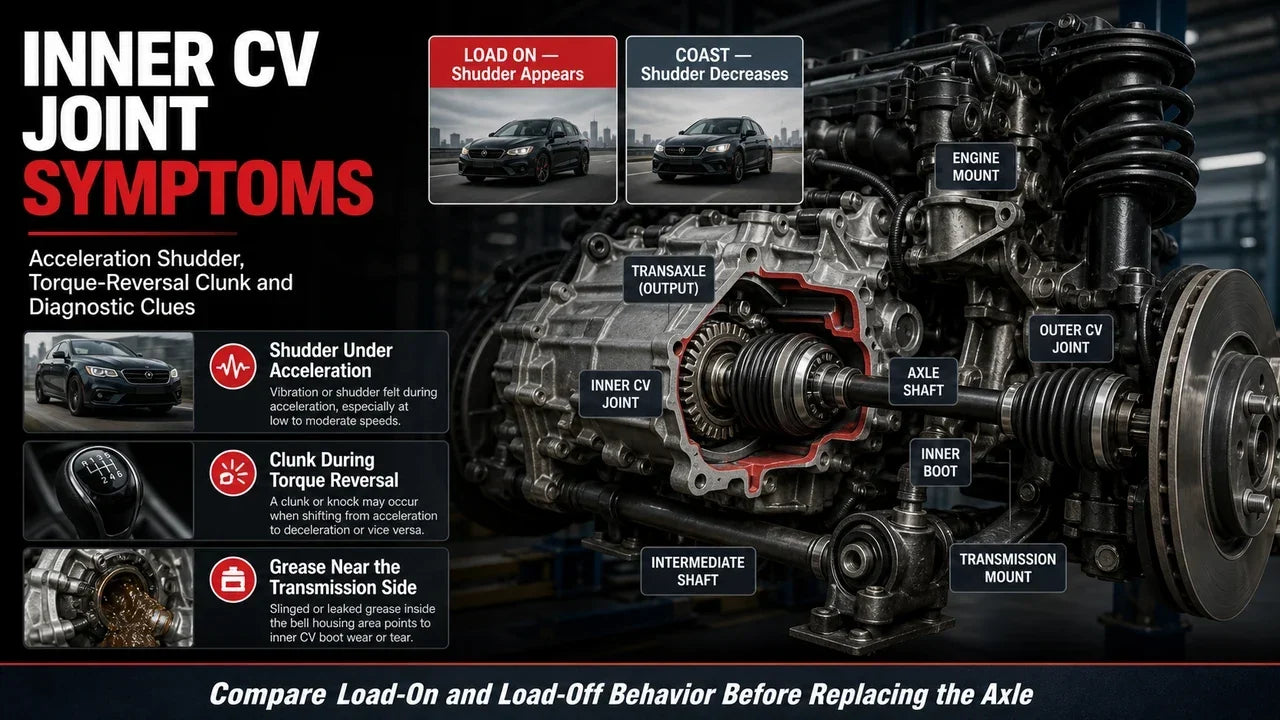

Inner CV joint symptoms usually become more noticeable when engine torque loads the driveline. A vibration that appears during acceleration and decreases when the accelerator is released points in a different direction from a vibration that remains unchanged at the same road speed.

The most useful diagnostic distinction is:

• Torque-dependent shudder: Inspect the inner CV joint, engine and transmission mounts, intermediate shaft, axle angle, and drivetrain alignment.
• Road-speed-dependent vibration: Begin with tires, wheels, wheel bearings, and shaft balance.
• Steering-angle clicking: Outer CV joint inspection is usually more relevant.
• Clunk during torque reversal: Check inner-joint clearance together with mounts, splines, differential lash, and axle seating.

An inner CV joint should not be replaced from vibration alone. The complaint must be reproduced under controlled load and compared with coast, steady-speed, turning, and braking conditions.

For a broader symptom overview, review bad CV axle symptoms. For outer-joint clicking and general driving risk, see whether a vehicle can be driven with a bad velocity joint.

What Makes the Inner CV Joint Different?

The inner CV joint connects the axle shaft to the transmission, transaxle, differential, or intermediate shaft. In addition to transmitting torque, many inner joints allow controlled axial movement, commonly called plunge.

This movement compensates for changes caused by:

• Suspension travel
• Steering and wheel movement
• Engine and transmission movement
• Changes in axle angle
• Vehicle load and ride height

Depending on the application, the inner joint may use a tripod, double-offset, ball-and-cage, or other plunge-capable design. The exact construction changes the wear pattern, but torque-sensitive vibration remains one of the most important diagnostic clues.

Why inner-joint wear causes shudder

Wear can develop in the tracks, rollers, bearings, housing, or plunge surfaces. Under load, the internal components may no longer move smoothly through their working range. The resulting force variation can travel through the axle, powertrain mounts, subframe, floor, seat, or steering structure.

This may feel like:

• A low-frequency shudder
• A pulsing vibration during acceleration
• A repeated surge through the floor or seat
• A clunk as torque changes direction
• A rough sensation that disappears during coast

The Load-On, Load-Off Test

The safest useful road test compares the same road speed under acceleration and coast. This separates torque-sensitive driveline faults from speed-sensitive rotating faults.

Test condition 1: Light acceleration

On a smooth, level road, apply light throttle while keeping steering nearly straight. Record whether the vibration:

• Begins as torque is applied
• Increases with throttle
• Appears through the floor or seat
• Changes with engine load more than road speed

Test condition 2: Moderate acceleration

Repeat the test with moderate throttle without aggressive driving. A stronger shudder under increased load supports inspection of:

• Inner CV joint tracks and rollers
• Engine and transmission mounts
• Intermediate shaft and support bearing
• Axle angle and ride height
• Incorrect or damaged axle assembly

Test condition 3: Coast at the same speed

Release the accelerator while maintaining the same approximate road speed.

If the vibration decreases quickly when torque is removed, the diagnostic direction moves toward a load-sensitive source. If the vibration remains nearly unchanged, inspect tires, wheels, bearings, and rotating runout before condemning the inner joint.

Test condition 4: Steady-speed cruise

A wheel or tire vibration often remains present during steady-speed cruising. Inner-joint shudder may become much less noticeable once torque demand stabilizes.

Test condition 5: Uphill acceleration

Uphill operation increases driveline load and can make inner-joint wear more obvious. A vehicle that feels smooth on level ground but shudders while climbing may require checks of both the inner joint and powertrain mounts.

Inner CV Joint Symptom Profiles

Acceleration shudder that fades during coast

This is one of the strongest inner CV joint patterns, but it is not conclusive by itself.

Supporting evidence includes:

• Vibration follows throttle input
• Shudder is stronger uphill
• Vibration decreases when torque is removed
• Tire and wheel balance checks are satisfactory
• Inner boot shows grease loss or damage
• Joint movement feels rough through its plunge range

Clunk when shifting from drive to reverse

A clunk during torque reversal may occur when clearance exists in the inner joint or spline connection. However, several components can produce the same symptom.

Check:

• Engine mount movement
• Transmission mount movement
• Inner-joint rotational play
• Intermediate-shaft coupling
• Differential backlash
• Axle seating
• Outer spline and hub engagement
• Loose suspension or subframe hardware

Grease near the transmission side

Grease concentrated around the transmission-side joint may indicate an inner CV boot tear, loose clamp, incorrectly seated boot, or damage caused by excessive axle angle.

Do not confuse CV grease with transmission or differential fluid.

Compare:

• Fluid color and consistency
• Leak origin
• Boot folds and clamp grooves
• Transmission seal area
• Axle seating depth
• Retaining-clip engagement

For grease-leak diagnosis, review CV joint grease leakage patterns. For boot construction and protection, see what a CV boot does.

Vibration after suspension or mount repair

A new acceleration shudder after strut, control-arm, engine-mount, transmission-mount, subframe, or ride-height work may result from a changed axle angle or component position.

Possible causes include:

• Incorrect ride height
• Powertrain shifted from its original position
• Mount installed under preload
• Subframe position changed
• Axle operating outside its previous plunge range
• Previously worn joint now operating on a different track area

Vibration after CV axle replacement

Acceleration vibration that begins immediately after axle replacement should direct attention to fitment and installation before another part is ordered.

Check for:

• Incorrect axle length
• Wrong inner-joint housing
• Incorrect spline configuration
• Axle not fully seated
• Retaining clip not engaged
• Damaged seal surface
• Boot overstretch or compression
• Missing or different vibration damper
• Incorrect intermediate-shaft connection

Shudder only with passengers, cargo, or towing load

Added vehicle load changes suspension position and axle angle. A marginal inner joint may become symptomatic only when the vehicle is carrying additional weight.

This scenario also requires inspection of:

• Ride height
• Rear or front suspension sag
• Engine and transmission mounts
• Axle angle under load
• Incorrectly sized replacement axle

Shudder after lifting or lowering the vehicle

Suspension-height changes alter inner-joint operating angle and plunge position. A joint may run near the edge of its intended travel or operate continuously at a higher angle.

Potential results include:

• Acceleration vibration
• Boot stretching
• Boot contact with nearby components
• Reduced plunge margin
• Accelerated track wear

Diagnostic Split: Inner CV Joint or Something Else?

Test Result	Inner CV Joint Direction	Other Components to Check
Shudder under acceleration; smooth during coast	Strong inner-joint or driveline-angle direction	Engine mount, transmission mount, intermediate shaft
Vibration remains at the same speed on and off throttle	Less supportive of inner-joint wear	Tire balance, wheel runout, wheel bearing
Rhythmic clicking during tight powered turns	Inner joint less likely as primary source	Outer CV joint, brake shield, suspension hardware
Clunk when selecting drive or reverse	Inner-joint clearance possible	Mounts, differential lash, splines, loose hardware
Grease near transmission-side joint	Inner boot or clamp leak possible	Axle seal, transmission fluid leak, boot installation
Vibration began after mount replacement	Axle angle or plunge position may have changed	Mount position, preload, subframe alignment
Vibration began after axle replacement	Incorrect axle or assembly problem possible	Length, seating, splines, damper, retention
Hum or growl follows road speed	Not the classic inner-joint pattern	Wheel bearing, tire tread, differential bearing

How Engine and Transmission Mounts Change the Diagnosis

Powertrain mounts control engine and transmission movement. When a mount softens, tears, collapses, or separates, the powertrain can rotate excessively under torque.

This movement can:

• Change the inner-joint angle
• Shift the joint within its plunge range
• Stretch or compress the boot
• Increase shaft misalignment
• Create a clunk that resembles joint clearance
• Aggravate wear in an already marginal joint

Mount-related clues

• Visible engine lift or rotation during torque loading
• Clunk when selecting drive or reverse
• Vibration at idle in gear
• Exhaust or hose contact
• Shudder after a recent mount replacement
• Different vibration behavior with the brake applied

A worn mount and worn inner CV joint can exist at the same time. Replacing only one component may reduce but not eliminate the complaint.

How an Intermediate Shaft Can Mimic Inner CV Joint Wear

Some drivetrains use an intermediate shaft between the transmission and one CV axle. The support bearing, splines, bracket, and connections can produce acceleration vibration or clunking similar to an inner-joint fault.

Inspect:

• Support-bearing play
• Bearing roughness
• Mounting-bracket alignment
• Fastener condition
• Spline wear
• Corrosion at mating surfaces
• Axle-to-intermediate-shaft engagement

A bearing may feel acceptable without load but move excessively when torque is applied.

Workshop Inspection: Evaluate the Joint Through Its Working Range

Inspect the inner CV boot

Check the complete circumference and every fold for:

• Cracks
• Splits
• Hardening
• Twisting
• Clamp movement
• Heat damage
• Contact marks

Inspect grease condition

Grease condition helps determine whether boot-only service remains appropriate.

Grease Evidence	Possible Condition	Repair Direction
Clean grease with no noise	Damage may have been detected early	Boot service may remain possible after inspection
Low or dry grease quantity	Extended lubrication loss	Inspect tracks, rollers, and housing for wear
Gritty grease	Dirt contamination	Joint or complete axle replacement may be more reliable
Milky or rusty grease	Water entry and corrosion	Inspect for pitting and rough movement
Metallic particles	Internal component wear	Joint or axle replacement usually indicated

Check plunge movement

The joint should move through its intended range without roughness, sticking, or abnormal resistance. Acceptable movement and play vary by joint design, so vehicle-specific service information should be used.

Look for:

• Notchy movement
• Binding
• Uneven resistance
• Excessive looseness
• Discoloration from heat
• Pitting or scoring

Check the axle shaft and damper

Inspect for:

• Visible bending
• Impact marks
• Corrosion
• Missing or damaged vibration damper
• Contact with the subframe or suspension
• Incorrect weld or balance-weight condition

Check axle seating and seal contact

Confirm:

• The inner joint is fully seated
• The retaining clip is engaged
• The seal surface matches the application
• No transmission or differential fluid is leaking
• The housing is not pulled outward under suspension travel

Boot Service, Inner-Joint Repair, or Complete CV Axle?

Boot service may remain appropriate when:

• The leak was found early
• The joint remains quiet
• Plunge movement is smooth
• The grease remains clean
• No rust, pitting, or metallic debris is present
• The shaft and splines are undamaged

For the service process, review how to change a CV joint boot.

Separate inner-joint service may be considered when:

• The correct joint is available separately
• The shaft remains straight
• The outer joint remains serviceable
• The retaining components are available
• Correct assembly and grease procedures are known

Complete axle replacement is usually more appropriate when:

• Acceleration shudder is repeatable and joint wear is confirmed
• The joint binds or moves roughly
• The grease contains dirt, water, rust, or metal
• The shaft is bent
• The splines or seal surface are damaged
• The boot has been open for an unknown period
• Multiple axle components are worn

For a direct comparison, review CV boot repair kit vs complete CV axle replacement.

Replacement Axle Fitment: Avoid Creating a New Shudder

An incorrect replacement axle can create the same vibration pattern as a worn inner joint. Fitment should be confirmed before installation.

Vehicle configuration

• Year, make, and model
• Engine
• Transmission
• Drivetrain configuration
• Left or right side
• Front or rear position
• Production-date split

Axle comparison

• Overall compressed length
• Inner-joint housing design
• Inner and outer splines
• Seal diameter and surface position
• Retaining clip
• Intermediate-shaft connection
• ABS tone ring or magnetic encoder
• Vibration damper location
• Axle-nut thread

Stop installation when:

• The axle does not seat fully
• The shaft appears too long or too short
• The inner housing differs from the original
• The boot is stretched at normal ride height
• The seal surface does not align correctly
• The retaining clip or splines differ

Post-Repair Verification Under the Original Load Condition

The repair should be tested under the same condition that originally produced the shudder.

1. Confirm full axle seating.
2. Inspect the transmission or differential seal.
3. Verify axle-nut installation according to service information.
4. Check both boots at normal ride height.
5. Inspect mount position and powertrain movement.
6. Perform light acceleration on a smooth road.
7. Repeat with moderate load where safe.
8. Compare acceleration with coast at the same speed.
9. Check uphill acceleration if it previously triggered the complaint.
10. Inspect for new grease or fluid leakage.
11. Confirm that no vibration, clunk, warning light, or abnormal noise remains.

Professional Inner CV Joint Diagnostic Sequence

1. Document the road speed, throttle, load, and suspension condition that produces the complaint.
2. Compare acceleration, steady cruise, and coast.
3. Determine whether the vibration follows torque or road speed.
4. Inspect the inner boot, clamps, and grease condition.
5. Inspect engine and transmission mounts.
6. Inspect the intermediate shaft and support bearing.
7. Check axle angle, ride height, and shaft alignment.
8. Inspect plunge movement and inner-joint play.
9. Rule out tire, wheel, hub, and bearing faults.
10. Determine whether boot, joint, or complete axle service is justified.
11. Verify exact fitment before ordering parts.
12. Repeat the original load condition after repair.

Safety and Technical Boundaries

• Do not reproduce severe vibration with aggressive acceleration.
• Use a clear and controlled road-test area.
• Do not work below a vehicle supported only by a hydraulic jack.
• Keep clear of rotating axles, wheels, and suspension components.
• Do not run driven wheels at road speed on unsupported or unsuitable lifting equipment.
• Acceptable joint movement and play vary by design.
• Axle-nut procedures and torque specifications are vehicle-specific.
• Some axle nuts, retaining clips, and related hardware are single-use.
• Incorrect axle fitment can damage seals, hubs, bearings, and transmission components.
• Final diagnosis and repair should follow current vehicle-specific service information.

Frequently Asked Questions

Q1: What are the most common inner CV joint symptoms?

A1: Common symptoms include shudder under acceleration, vibration that decreases during coast, clunking during torque reversal, and grease leakage near the transmission-side joint.

Q2: Can an inner CV joint cause vibration under acceleration?

A2: Yes. Wear in the plunge tracks, rollers, bearings, or housing can produce vibration when torque loads the joint.

Q3: Why does inner CV joint vibration disappear when coasting?

A3: Removing engine torque reduces load on the joint. A rapid change between acceleration and coast supports a torque-sensitive driveline source.

Q4: Can a bad inner CV joint vibrate at highway speed?

A4: It can, particularly under load, but vibration that remains unchanged during acceleration and coast more strongly supports tire, wheel, bearing, or shaft-balance checks.

Q5: Can an inner CV joint click while turning?

A5: It may make noise, but rhythmic clicking during a tight powered turn more commonly points toward the outer CV joint.

Q6: Can a bad inner CV joint cause a clunk when shifting into drive?

A6: Yes, but mounts, differential lash, spline clearance, axle seating, and intermediate-shaft movement can create the same symptom.

Q7: Can engine mounts mimic inner CV joint symptoms?

A7: Yes. Excessive powertrain movement changes the axle angle and plunge position, which can create or aggravate acceleration shudder.

Q8: Can worn mounts damage an inner CV joint?

A8: Worn mounts can increase joint angle and movement under torque, which may accelerate boot and joint wear.

Q9: Can an intermediate shaft cause acceleration vibration?

A9: Yes. A worn support bearing, damaged spline, or misaligned bracket can produce vibration and clunking similar to an inner-joint fault.

Q10: Why did vibration begin after axle replacement?

A10: Possible causes include incorrect axle length, wrong joint design, incomplete seating, mismatched splines, damaged retention, or a different vibration-damper configuration.

Q11: Can lifting or lowering a vehicle cause inner CV joint vibration?

A11: Yes. Ride-height changes alter axle angle and plunge position, potentially increasing load on the inner joint.

Q12: Does grease near the transmission mean the inner CV boot is torn?

A12: It may, but transmission or differential fluid from an axle-seal leak must be distinguished from CV grease.

Q13: Can an inner CV boot be replaced without replacing the axle?

A13: Boot service may be appropriate when the joint remains clean, smooth, quiet, and free of rust or internal wear.

Q14: Should a shuddering inner CV joint receive only a new boot?

A14: No. A boot cannot repair worn tracks, rollers, or bearings. Confirmed joint wear usually requires joint or complete axle replacement.

Q15: How is an inner CV joint checked?

A15: Compare acceleration with coast, inspect the boot and grease, check mounts and intermediate shaft, and evaluate joint play and plunge movement according to service information.

Q16: Should both CV axles be replaced when one inner joint fails?

A16: Not automatically. Replace the confirmed failed side unless inspection or application-specific requirements support additional replacement.

Q17: What should be checked before ordering a replacement CV axle?

A17: Confirm side, position, drivetrain, engine, transmission, length, splines, inner-joint housing, seal surface, retaining clip, ABS configuration, and damper.

Q18: What should be tested after inner CV joint or axle replacement?

A18: Verify seating, seals, mounts, boot position, acceleration behavior, coast behavior, uphill load response, noise, and grease or fluid leakage.

Final Diagnostic Takeaway

Inner CV joint symptoms are most meaningful when they change with torque. A shudder that appears under acceleration and decreases during coast supports inspection of the inner joint, mounts, intermediate shaft, axle angle, and replacement fitment.

Road-speed vibration that remains unchanged with throttle should direct diagnosis toward tires, wheels, bearings, and shaft balance. Repair scope should reflect boot condition, grease contamination, plunge movement, internal wear, shaft damage, and exact vehicle fitment rather than vibration alone.
