Bad CV Axle Symptoms: A Diagnostic Guide Before You Replace Parts

Bad CV Axle Symptoms: Diagnose the Operating Pattern Before Replacing Parts

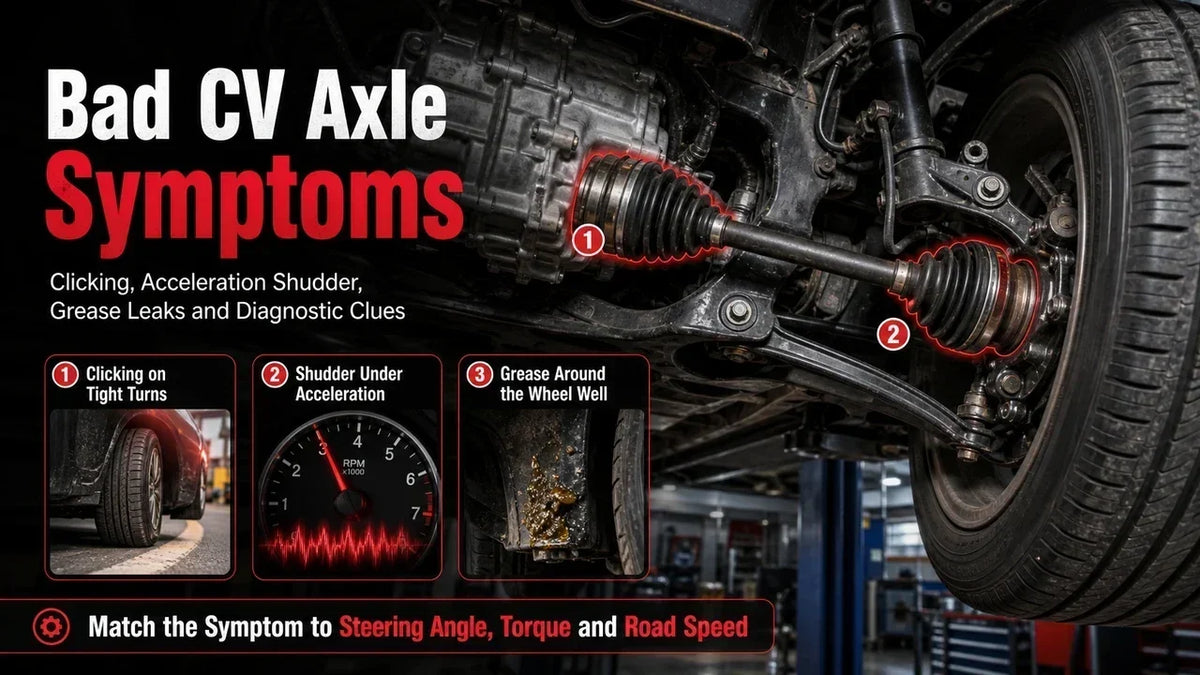

Bad CV axle symptoms usually change with steering angle, engine torque, suspension position, or road speed. A rhythmic click during a powered tight turn points in a different diagnostic direction from a shudder that appears only during straight-line acceleration.

The most common patterns are:

• Repeated clicking on tight turns: Commonly associated with outer CV joint wear.
• Shudder or vibration under acceleration: More consistent with an inner plunge-joint problem.
• Clunk when shifting between drive and reverse: May involve inner CV joint clearance, mounts, or driveline lash.
• Grease around the wheel well or suspension: Usually indicates a torn CV boot or loose clamp.
• Binding, severe knocking, or loss of drive: Requires immediate inspection and may indicate advanced joint or axle failure.

None of these symptoms confirms a failed CV axle by itself. Tire and wheel problems, wheel bearings, engine or transmission mounts, brake shields, suspension joints, and intermediate-shaft bearings can create similar complaints.

For a focused explanation of acceleration-related problems, review inner CV joint symptoms. For damaged boot diagnosis, see the guide to a torn CV boot.

First Separate the Symptom Into One of Four Operating Patterns

The condition under which the noise or vibration appears is usually more valuable than the sound description alone.

Operating Pattern	Primary Diagnostic Direction	Important Look-Alikes
Clicking during slow, powered turns	Outer CV joint wear	Brake shield contact, loose wheel hardware, steering or suspension joint
Shudder during straight-line acceleration	Inner plunge joint or shaft-angle problem	Engine mount, transmission mount, intermediate shaft, tire defect
Vibration mainly related to road speed	Tire, wheel, bent rim, or shaft imbalance first	Wheel bearing, bent CV axle shaft, driveline component
Clunk during torque reversal	Inner joint clearance or driveline lash	Mounts, differential play, transmission movement, loose hardware

Symptom Decoder: What Each CV Axle Complaint Usually Means

Rhythmic clicking or popping on a tight turn

A repeated click that follows wheel rotation during a slow, powered turn commonly supports outer CV joint wear. The sound may become more pronounced as steering angle and drive torque increase.

Supporting evidence includes:

• Clicking repeats at a regular rhythm
• Noise is stronger under light acceleration than while coasting
• Outer CV boot is torn or has lost grease
• Grease is distributed around the wheel well
• Noise changes between left-hand and right-hand circles

A single click when steering direction changes is weaker evidence than a continuous click that repeats with wheel rotation.

Shudder or vibration only under acceleration

An inner CV joint allows the axle to change length as the suspension and powertrain move. Wear inside this plunge joint can create a vibration or shudder when torque loads the joint.

The pattern may include:

• Shudder during moderate or heavy acceleration
• Reduced vibration when the accelerator is released
• Greater vibration while climbing a hill
• More noticeable movement at lower road speeds under high torque
• Little or no vibration during steady-speed cruising

This pattern should be separated from wheel imbalance, which normally follows vehicle speed more consistently and does not disappear immediately when engine torque is removed.

Clunk when selecting drive or reverse

A clunk during torque reversal may result from excessive clearance in an inner CV joint, but it can also originate from engine mounts, transmission mounts, differential lash, suspension movement, or loose axle hardware.

Inspection should compare:

• Powertrain movement
• Inner-joint rotational play
• Intermediate-shaft support bearing
• Axle-nut and hub condition
• Transmission or differential movement

Grease thrown around the wheel well

Grease on the inside of the wheel, strut, control arm, brake hose, or surrounding bodywork usually indicates that a CV boot has split or a clamp has loosened.

The grease pattern often helps locate the source:

• Outer circular spray pattern: Commonly produced by an outer boot rotating near the wheel.
• Grease concentrated near the transmission: May indicate an inner boot or clamp leak.
• Grease only around a clamp: May indicate clamp movement, incorrect seating, or boot damage beneath the clamp.
• Dry boot with dirt inside: Suggests grease loss and contamination have already progressed.

For a detailed leak assessment, review why a CV joint may leak grease. For boot construction and function, see what a CV boot is.

Knocking or binding during low-speed turns

Heavy knocking, binding, steering resistance, or a sensation that the axle is catching may indicate advanced joint wear, incorrect axle length, damaged splines, joint displacement, or severe contamination.

This condition is more urgent than an early clicking complaint and should not be tested repeatedly under heavy steering angle or acceleration.

Vibration that increases with road speed

A vibration that rises progressively with vehicle speed, regardless of acceleration or coast, is not the strongest pattern for a worn CV joint.

Check first for:

• Tire imbalance
• Tire separation or deformation
• Bent wheel
• Wheel runout
• Wheel-bearing condition
• Bent axle shaft
• Debris trapped inside the wheel

Road-Test Pattern Map

A controlled road test should reproduce the complaint without aggressive maneuvers. Record steering angle, throttle position, road speed, suspension load, and whether the symptom appears during acceleration or coast.

Pattern 1: Clicking while turning left

A click during a left turn may increase load on one outer joint, but the noisy side cannot always be identified by steering direction alone. Vehicle layout, joint angle, suspension travel, and sound transmission can make side identification unreliable.

Confirm the side by combining:

• Left- and right-circle comparison
• Boot damage location
• Grease pattern
• Joint play
• Noise source inspection

Pattern 2: Clicking only under power

A click that appears on a tight turn under light acceleration but disappears while coasting provides stronger outer-joint evidence than a noise that remains unchanged with torque.

Pattern 3: Shudder while accelerating uphill

Uphill acceleration increases torque load and can make inner-joint wear more noticeable. The same condition may remain mild on level ground.

Checks should include:

• Inner CV joint condition
• Engine and transmission mounts
• Intermediate shaft
• Ride height and suspension geometry
• Axle shaft alignment

Pattern 4: Vibration during acceleration after suspension work

A new acceleration vibration after control-arm, strut, engine-mount, transmission, or ride-height work may involve altered axle angle, incorrect component position, fastener torque, or a joint operating outside its previous travel range.

Pattern 5: Noise begins after a boot was torn for an unknown period

A boot can lose grease while allowing water and abrasive debris into the joint. Installing a new boot does not reverse damage that has already occurred.

If clicking, rough movement, rust, or contaminated grease is present, complete joint or axle replacement may be more appropriate than boot-only service.

Pattern 6: Clicking began immediately after axle replacement

Noise after recent replacement may result from:

• Incorrect axle application
• Wrong axle length
• Incorrect spline engagement
• Axle not fully seated in the transmission or differential
• Axle nut incorrectly tightened
• Damaged seal or retaining clip
• Incorrect suspension or ride-height condition
• Manufacturing or assembly defect

Pattern 7: Clunk during drive-to-reverse changes after engine-mount failure

Excessive powertrain movement can load the inner CV joints beyond their normal operating angle and produce a clunk or shudder. The mount condition should be corrected before determining whether the axle itself is damaged.

Pattern 8: Grease leak without noise

A recently torn boot found before joint noise begins may still be a candidate for cleaning, inspection, regreasing, and boot replacement.

Boot-only service is less appropriate when:

• The tear duration is unknown
• Grease is heavily contaminated
• Water or rust is present
• The joint clicks or binds
• Joint surfaces show pitting or scoring

For repair-scope comparison, review CV boot repair kit vs complete CV axle replacement.

Workshop Inspection: Follow the Evidence From the Boot to the Hub

Boot folds and material

Flex each accessible boot fold while the vehicle is safely supported. Small cracks may remain hidden when the boot is in its normal position.

Inspect for:

• Splits between folds
• Heat hardening
• Surface cracking
• Twisting
• Contact with nearby components
• Incorrect boot position

Boot clamps

Check that both clamps are present, correctly positioned, and tight enough to seal without cutting into the boot.

A clamp-related leak may result from:

• Incorrect clamp size
• Insufficient tension
• Clamp installed over grease
• Boot not seated in its groove
• Reused or distorted clamp

Grease condition

Grease provides evidence about joint condition.

Grease Condition	Possible Meaning	Repair Direction
Correct consistency and no visible contamination	Boot damage may have been detected early	Boot service may remain possible after joint inspection
Dry or reduced grease quantity	Lubricant has escaped over time	Inspect for wear, scoring, and noise
Gritty grease	Dirt or road debris entered the boot	Joint damage likely; replacement may be safer
Milky or rusty grease	Water contamination	Inspect for corrosion and internal damage
Metallic particles	Internal surface wear	Joint or axle replacement usually indicated

Axle shaft condition

Inspect the shaft for:

• Visible bending
• Impact marks
• Corrosion
• Missing or damaged vibration damper
• Contact with suspension or subframe components
• Incorrect weld or balance-weight condition

Inner-joint housing and transmission seal

Grease from an inner boot should not be confused with transmission fluid leaking from an axle seal.

Confirm:

• Fluid type and color
• Leak origin
• Axle seating depth
• Seal condition
• Retaining-clip engagement

Outer splines, axle nut, and hub

Loose or damaged outer spline engagement can create clunking, hub movement, or bearing damage.

Inspect:

• Axle-nut condition
• Thread damage
• Splines
• Hub play
• Wheel-bearing noise
• Corrosion between the axle and hub

CV Axle Symptoms vs Common Look-Alikes

Observed Symptom	CV Axle Direction	Other Components to Exclude
Clicking during powered tight turns	Outer CV joint wear	Brake shield, loose wheel hardware, ball joint, tie-rod end
Shudder under acceleration	Inner CV joint wear	Engine mount, transmission mount, intermediate shaft, tire defect
Hum or growl with road speed	Not the strongest CV pattern	Wheel bearing, tire tread, differential bearing
Steering-wheel vibration at speed	Possible bent shaft, but less common	Tire balance, bent wheel, tire runout
Clunk over bumps	Usually not CV joint first	Control arm, sway-bar link, strut mount, ball joint
Clunk during drive/reverse change	Inner joint or spline clearance possible	Mounts, driveline lash, differential, loose axle nut
Grease inside wheel	Outer CV boot or clamp leak	Wheel-bearing grease or unrelated contamination
Fluid near transmission output	Inner boot grease possible	Transmission or differential axle-seal leak

Which Side Is the Bad CV Axle?

Noise direction from inside the cabin can be misleading. Sound can travel through the subframe, hub, suspension, and body structure.

Use multiple indicators rather than steering direction alone:

1. Compare left and right powered circles.
2. Inspect both outer boots.
3. Look for fresh grease patterns.
4. Check inner and outer joint play.
5. Compare joint movement through steering and suspension travel.
6. Inspect axle shaft and hub condition.
7. Rule out wheel-bearing and brake-shield noise.

Replacing the side assumed from noise direction alone can result in replacing a serviceable axle.

Can You Continue Driving With Bad CV Axle Symptoms?

Continued operation depends on the symptom severity and inspection result. Early boot damage without noise is different from a joint that binds or knocks heavily.

Condition	Risk Level	Recommended Response
Small boot crack with no grease loss	Developing concern	Schedule inspection before the crack opens further
Fresh boot tear with grease loss but no noise	Time-sensitive	Limit use and inspect promptly for contamination
Repeated clicking during turns	Joint wear present	Plan repair promptly and avoid aggressive steering or acceleration
Acceleration shudder	Possible inner-joint or driveline fault	Diagnose before continued highway or heavy-load use
Severe knocking, binding, or shaft displacement	High risk	Stop normal driving and arrange inspection or towing
Loss of drive or axle separation	Immediate failure	Do not continue driving

For a detailed safety assessment, review whether a vehicle can be driven with a bad velocity joint.

Boot Repair, Joint Replacement, or Complete CV Axle?

CV boot service may be reasonable when:

• The damage was detected early
• No clicking, binding, or shudder is present
• The joint remains smooth
• Grease is not contaminated
• No rust or pitting is visible
• The joint can be cleaned and inspected correctly

Boot replacement procedures are covered in how to change a CV joint boot.

Joint replacement may be considered when:

• A serviceable joint is available separately
• The shaft and opposite joint remain in good condition
• Correct disassembly, cleaning, grease, and assembly procedures are available
• Labor and part availability justify joint-only service

Complete CV axle replacement is more appropriate when:

• The joint already clicks or binds
• Grease contains dirt, water, rust, or metal
• The axle shaft is bent or damaged
• Both joint and boot condition are poor
• The spline, tone ring, damper, or mounting surfaces are damaged
• A complete axle provides the more reliable repair

Where a split CV boot fits

A split universal CV boot may reduce disassembly in limited temporary or application-specific situations, but sealing, sizing, joint condition, and installation quality remain critical.

Review the split universal CV boot guide before choosing this repair method.

Fitment Checks Before Ordering a Replacement CV Axle

Correct diagnosis does not guarantee correct part selection. A vehicle may use different axle assemblies based on drivetrain, transmission, engine, production date, suspension package, or ABS configuration.

Confirm vehicle configuration

• Model year
• Make and model
• Engine
• Transmission type
• Front-wheel drive, all-wheel drive, or four-wheel drive
• Left or right side
• Front or rear position
• Production-date split where applicable

Compare the original axle

• Overall compressed length
• Inner-joint housing style
• Outer spline count and diameter
• Transmission or differential spline
• Intermediate-shaft connection
• ABS tone ring or encoder configuration
• Vibration damper location
• Thread size and axle-nut design
• Boot and clamp clearance

Do not force an axle into place

Stop installation when:

• The inner joint will not seat fully
• The outer spline does not enter the hub correctly
• The axle appears too short or too long
• The boots stretch or compress abnormally at normal ride height
• The ABS tone ring or encoder differs
• The retaining clip or seal surface does not match

Replacement Validation After Installation

A repair should be evaluated under the same conditions that originally produced the complaint.

1. Confirm the axle is fully seated.
2. Inspect transmission or differential seal contact.
3. Verify axle-nut installation using the vehicle-specific procedure.
4. Check ABS wiring and tone-ring clearance.
5. Inspect both boots at normal ride height.
6. Check for contact through steering movement.
7. Check for contact through suspension travel where applicable.
8. Perform slow left- and right-circle testing.
9. Evaluate acceleration and coast behavior.
10. Inspect for new grease or fluid leaks.
11. Recheck for warning lights, noise, vibration, or clunking.

How Long Do CV Axles Usually Last?

CV axle service life varies with boot condition, joint angle, suspension height, road contamination, operating load, installation quality, and impact history. There is no single replacement interval that applies to every vehicle.

Factors that can shorten life include:

• Torn or hardened boots
• Loose clamps
• Lifted or lowered suspension
• Frequent full-lock acceleration
• High torque output
• Road salt and water exposure
• Incorrect axle length
• Damaged mounts
• Improper installation

For further service-life guidance, review how long CV axles typically last.

Professional CV Axle Diagnostic Sequence

1. Document when the symptom appears.
2. Separate steering-angle, torque-related, and road-speed patterns.
3. Inspect all CV boots and clamps.
4. Identify grease or fluid origin.
5. Perform controlled left- and right-turn testing.
6. Compare acceleration, cruise, and coast conditions.
7. Inspect engine and transmission mounts.
8. Inspect wheel, tire, hub, and bearing condition.
9. Inspect inner-joint, outer-joint, and shaft condition.
10. Determine whether boot, joint, or axle service is justified.
11. Verify exact replacement fitment before ordering.
12. Repeat the original test conditions after repair.

Safety and Technical Boundaries

• Use approved lifting points and support equipment before working below a vehicle.
• Do not rely on a hydraulic jack alone.
• Do not run a driven wheel at road speed while the vehicle is supported unless the service procedure and equipment specifically allow it.
• Keep clear of rotating axles, wheels, brake components, and suspension parts.
• Axle-nut procedures and torque values are vehicle-specific.
• Some axle nuts and retaining hardware are single-use.
• Improper hub or axle-nut tightening can damage the wheel bearing.
• ABS tone rings and magnetic encoders can be damaged during removal or installation.
• Final repair decisions should follow current vehicle-specific service information.

Frequently Asked Questions

Q1: What are the most common bad CV axle symptoms?

A1: Common symptoms include clicking on tight turns, shudder under acceleration, clunking during torque reversal, grease around the wheel well, binding, and vibration related to joint load.

Q2: Does clicking while turning mean the CV axle is bad?

A2: Repeated clicking during a powered tight turn strongly supports outer CV joint wear, but brake, suspension, wheel, and steering components should still be inspected.

Q3: Can an inner CV joint cause vibration?

A3: Yes. Inner plunge-joint wear commonly causes shudder during acceleration that decreases when torque is removed.

Q4: Can a bad CV axle cause vibration at highway speed?

A4: It can, especially if the shaft is bent or imbalanced, but tire, wheel, and wheel-bearing problems should usually be checked first.

Q5: Can a bad CV axle cause a clunk when shifting into drive?

A5: Yes, but engine mounts, transmission mounts, differential lash, spline clearance, and loose hardware can create similar clunks.

Q6: Which CV joint clicks during turns?

A6: The outer CV joint is more commonly associated with repeated clicking during tight, powered turns.

Q7: Which CV joint causes acceleration shudder?

A7: The inner plunge joint is more commonly associated with vibration or shudder under acceleration.

Q8: Does grease around the wheel mean the CV joint is bad?

A8: It confirms a boot or clamp leak but does not prove that the joint is already worn. Joint condition depends on grease loss, contamination, noise, and internal wear.

Q9: Can a torn CV boot be repaired without replacing the axle?

A9: Boot service may be possible when the damage is found early and the joint remains clean, smooth, and quiet.

Q10: Should a noisy CV joint receive only a new boot?

A10: Usually not. Clicking, binding, rust, contaminated grease, or metal wear indicates that boot replacement alone will not restore the joint surfaces.

Q11: Can a wheel bearing sound like a bad CV axle?

A11: Yes. Wheel-bearing noise commonly follows road speed and may change with side loading, while CV symptoms more often change with torque or steering angle.

Q12: How can the bad side be identified?

A12: Compare left- and right-turn behavior with boot condition, grease pattern, joint play, axle inspection, and nearby wheel or brake components.

Q13: Should both CV axles be replaced together?

A13: Not automatically. Replace the failed or damaged side unless inspection or vehicle-specific requirements support replacing both.

Q14: Can bad engine mounts cause CV axle vibration?

A14: Yes. Excessive powertrain movement changes inner-joint angle and can imitate or contribute to acceleration shudder.

Q15: Is it safe to drive with a clicking CV joint?

A15: Clicking indicates wear. Repair should be scheduled promptly, and aggressive steering, acceleration, or heavy-load operation should be avoided.

Q16: When should driving stop immediately?

A16: Stop normal driving when severe knocking, binding, axle displacement, rapid worsening, or loss of drive occurs.

Q17: What should be checked before ordering a CV axle?

A17: Confirm the side, position, engine, transmission, drivetrain, production split, axle length, splines, joint housing, ABS configuration, and retaining design.

Q18: What should be checked after CV axle replacement?

A18: Verify axle seating, seals, axle nut, hub condition, ABS components, boot position, steering clearance, acceleration behavior, turn noise, and leaks.

Final Diagnostic Takeaway

Bad CV axle symptoms are most useful when connected to a repeatable operating condition. Tight-turn clicking supports outer-joint inspection, while torque-dependent shudder supports inner-joint and mount inspection. Road-speed vibration should direct attention to wheels, tires, bearings, and shaft condition before the axle is condemned.

The repair decision should reflect boot condition, grease contamination, joint noise, shaft damage, and exact vehicle fitment. Early boot damage may allow boot service, while a noisy, contaminated, binding, or damaged joint usually requires joint or complete CV axle replacement.
