What Is a CV Boot and Why Does It Matter?

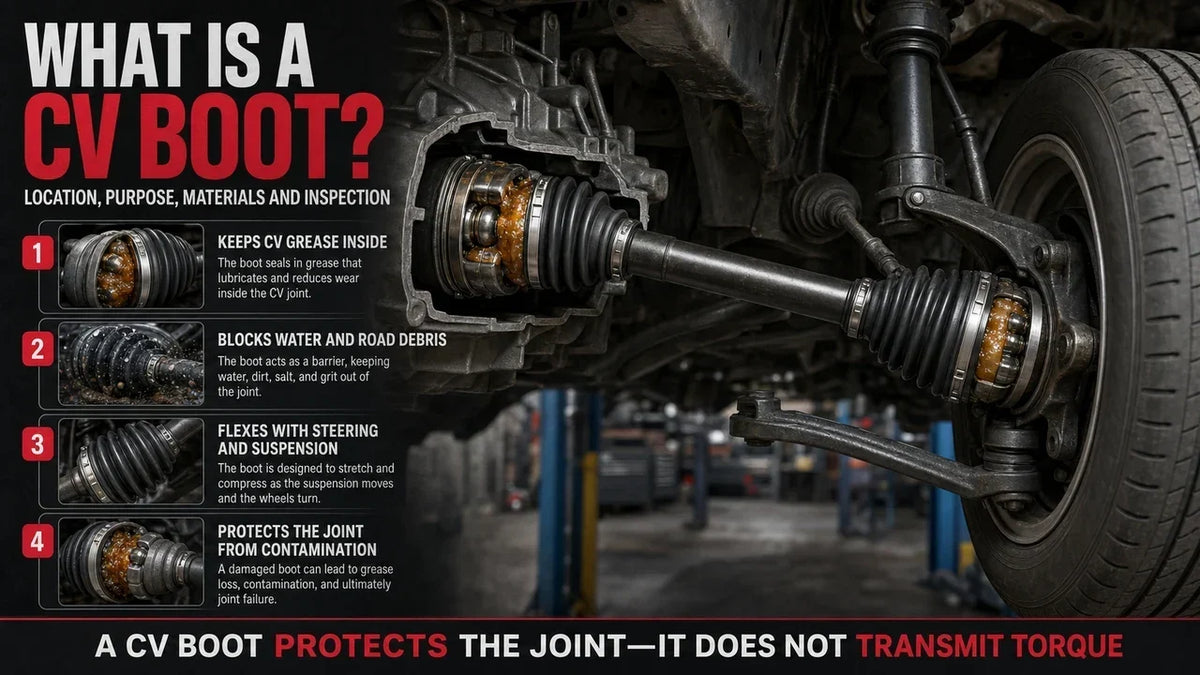

A CV boot is the flexible sealing cover installed around a constant velocity joint. Its job is to keep the specified CV joint grease inside while preventing water, grit, road salt, and other contamination from reaching the joint’s internal tracks, balls, rollers, and bearings.
The boot does not transmit engine torque. However, the condition of the boot strongly affects how long the CV joint can continue operating. Once the seal opens, grease can escape and abrasive contamination can enter, accelerating wear that may eventually produce clicking, shudder, binding, or complete axle failure.
On many front-wheel-drive vehicles, each front drive axle has:
- One outer CV boot near the wheel hub
- One inner CV boot near the transmission or transaxle
All-wheel-drive and four-wheel-drive layouts may use additional CV joints and boots at the front, rear, propeller-shaft, or differential connections.
For symptoms that may appear after the boot has been open for some time, review bad CV axle symptoms. For a direct explanation of damaged-boot evidence, see torn CV boot diagnosis.
A CV Boot Is a Sealing System, Not Just a Rubber Cover
A complete CV boot installation depends on several parts working together:
- The flexible boot body
- The small-diameter shaft sealing surface
- The large-diameter joint-housing sealing surface
- The inner and outer boot clamps
- The specified joint grease
- The correct internal air volume and boot position
A boot can appear visually intact and still leak if the clamp is loose, the sealing groove is contaminated, the boot is twisted, the wrong size is installed, or the boot is positioned incorrectly on the shaft.
The accordion-shaped folds
The ribbed or accordion-like shape allows the boot to:
- Flex as the wheel steers
- Change angle as the suspension moves
- Expand and compress with inner-joint plunge movement
- Rotate at axle speed without pulling away from the sealing surfaces
The folds are engineered around a specific joint diameter, axle angle, movement range, and available clearance. A boot that looks similar but has the wrong fold spacing or overall length may rub, stretch, collapse, or contact itself during operation.
The clamps
The clamps hold the boot against the shaft and joint housing. They must maintain sealing tension without cutting into the boot.
Clamp-related problems include:
- Insufficient tension
- Incorrect clamp size
- Clamp installed outside the intended groove
- Boot sealing surface covered in grease
- Clamp tail or ear contacting another component
- Reused clamp that no longer maintains tension
The grease
CV joint grease is part of the joint design. It lubricates highly loaded sliding and rolling surfaces while the joint operates through angle and torque changes.
The correct grease type and quantity depend on the joint and application. General-purpose chassis grease should not be substituted by guess.
Outer CV Boot and Inner CV Boot: Different Locations, Different Work
| Boot Position | Location | Primary Movement | Common Leak Evidence |
|---|---|---|---|
| Outer CV boot | Near the wheel hub | High steering angle and suspension movement | Grease on the inside of the wheel, strut, control arm, brake shield, or wheel-well liner |
| Inner CV boot | Near the transmission, transaxle, differential, or intermediate shaft | Plunge movement, axle-angle change, and powertrain movement | Grease on the inner joint housing, subframe, transmission-side area, or underbody |
| Boot clamps | At both ends of each boot | Maintain sealing pressure | Wet clamp edge, grease trail, rotated boot, or grease concentrated around the sealing band |
Why outer boots often show visible grease spray
The outer boot rotates close to the wheel and suspension. When it splits, centrifugal force can distribute grease in a circular pattern around the inside of the wheel and wheel well.
Why inner boot leaks can be harder to identify
An inner boot leak may remain hidden above the subframe or near the transmission. Grease may collect around the joint housing rather than producing a large spray pattern.
Transmission or differential fluid can also appear in the same area. The leak source should be identified by checking fluid color, consistency, sealing surfaces, axle seating, and the exact point where the wetness begins.
For transmission-side vibration and leak patterns, review inner CV joint symptoms.
How CV Boot Damage Progresses
CV boot failure usually develops through stages. The repair opportunity changes as grease loss and contamination increase.
Stage 1: Surface aging
Early evidence may include:
- Fine surface cracks
- Boot hardening
- Loss of flexibility
- Minor discoloration
- Light abrasion marks
At this stage, the boot may still be sealed. Inspection should determine whether the cracks are superficial or extend through the material.
Stage 2: Small split or clamp leak
Early leakage may appear as:
- A wet boot fold
- A narrow grease trail
- Grease around one clamp
- A small amount of grease on a nearby component
If found quickly and the joint remains clean, smooth, and quiet, boot service may still protect the original joint.
Stage 3: Active grease loss
As the opening grows, more grease leaves the joint and contamination can enter.
Evidence may include:
- Circular grease spray
- Dry joint areas
- Dirt adhered to escaped grease
- Grease distributed across suspension or underbody parts
- Boot folds collapsing or twisting
Stage 4: Contamination and internal wear
Water, grit, and road debris can damage the joint’s working surfaces. The grease may become gritty, milky, rusty, dry, or metallic.
Possible symptoms include:
- Clicking during powered turns
- Shudder during acceleration
- Clunking under torque reversal
- Rough joint movement
- Binding
Stage 5: Joint or axle failure
Advanced internal wear can damage the tracks, rollers, balls, splines, cage, or shaft. At this point, replacing only the boot will not restore the worn components.
What Causes a CV Boot to Fail?
Material aging
Heat, oxygen, ozone, road contamination, and repeated flexing gradually reduce material elasticity.
High operating angle
Lifted, lowered, overloaded, or incorrectly assembled suspension can increase the boot’s operating angle and stretch the folds beyond their intended position.
Contact with nearby parts
A boot may rub against:
- Subframe edges
- Control arms
- Heat shields
- Brake hoses
- Steering components
- Another boot fold
Incorrect installation
Installation-related causes include:
- Boot twisted during assembly
- Wrong clamp position
- Incorrect boot length
- Wrong material or joint profile
- Air volume set incorrectly
- Sharp tool damage
- Sealing groove left dirty or greasy
Axle or mount movement
Worn engine mounts, transmission mounts, intermediate-shaft supports, or suspension components can change axle angle and boot movement under load.
Road impact and debris
Stones, road debris, ice, and damaged underbody components can cut or puncture a boot.
Rubber, Thermoplastic, and TPE CV Boots
CV boots may be made from rubber compounds, thermoplastic materials, thermoplastic elastomers, or other application-specific materials. The correct choice is not based only on appearance or flexibility by hand.
Material must match the operating environment
The boot design must account for:
- Operating temperature
- Axle speed
- Steering angle
- Plunge movement
- Joint housing diameter
- Available clearance
- Grease compatibility
- Clamp type
Why a generic boot may fail even when it fits over the joint
A boot may slide onto the joint but still be unsuitable if:
- The folds collapse into each other
- The boot stretches at normal ride height
- The large end does not seat in the housing groove
- The shaft end is too loose
- The material is too stiff for the joint angle
- The boot contacts surrounding parts
Original-style geometry and verified application data provide stronger fitment evidence than visual similarity.
A Five-Zone CV Boot Inspection
A useful CV boot inspection follows the entire sealing system rather than checking only the most visible fold.
Zone 1: Boot folds
Use good lighting and inspect every fold for:
- Cracks
- Splits
- Abrasion
- Heat hardening
- Ballooning
- Collapse
- Twisting
Flexing the boot slightly may expose cracks hidden while the folds are compressed. Do not use sharp tools.
Zone 2: Small clamp and shaft seal
Check for:
- Wetness around the clamp
- Clamp movement
- Incorrect clamp position
- Boot slipping on the shaft
- Damage caused by a clamp edge
Zone 3: Large clamp and joint-housing seal
Inspect the large end for:
- Grease escaping beneath the clamp
- Boot not seated in the housing groove
- Clamp distortion
- Joint-housing corrosion
- Contact between the clamp and nearby components
Zone 4: Grease distribution
Follow the grease pattern to identify the source.
| Grease Pattern | Possible Source | Next Check |
|---|---|---|
| Circular spray inside the wheel | Outer boot split or clamp leak | Inspect all outer boot folds and both clamps |
| Grease concentrated near the transmission | Inner boot or inner clamp leak | Differentiate CV grease from axle-seal fluid |
| Wet band around one clamp | Clamp tension or sealing-surface problem | Check groove seating and clamp position |
| Grease only after recent service | Residual grease or active leak | Clean the area and recheck after operation |
| Grease with dirt or metallic material | Contamination or internal wear | Inspect joint condition before boot-only repair |
Zone 5: Surrounding clearance and axle position
Check whether the boot contacts the subframe, suspension, heat shield, steering component, or another rotating part.
Also confirm:
- Axle appears fully seated
- Boot is not overstretched at normal ride height
- Boot does not collapse excessively
- Suspension height is correct
- Engine and transmission mounts are controlling movement
Scenario Files: What Different CV Boot Evidence Means
Scenario 1: Fine cracks but no grease leakage
Fine surface cracking indicates material aging, but it does not confirm that the boot is open. Clean the area, inspect each fold under light flex, and confirm whether grease is escaping.
Response:
- Plan replacement if the material is hard or cracking is progressing
- Inspect the opposite boot on the same axle
- Check for heat or contact damage
Scenario 2: Fresh grease appears after highway driving
A boot opening may distribute more grease at higher axle speed. Clean the area and inspect for a split or loose clamp rather than assuming the grease came from a wheel bearing or another component.
Scenario 3: Grease is visible, but no clicking is present
The absence of noise may indicate the damage was found before substantial joint wear. Repair scope still depends on:
- How long the boot was open
- Grease quantity remaining
- Water or dirt entry
- Joint smoothness
- Rust, pitting, or metallic debris
For repair choices, review CV boot repair kit vs complete CV axle replacement.
Scenario 4: Grease is present around the inner joint and transmission case
Determine whether the material is CV grease or transmission fluid. A torn inner boot, loose clamp, axle-seal leak, or incomplete axle seating may create similar visual evidence.
Scenario 5: The boot repeatedly fails after replacement
Repeat failure suggests that the cause extends beyond boot age.
Check:
- Incorrect boot size or material
- Wrong axle assembly
- Boot installed twisted
- Incorrect clamp groove
- Excessive axle angle
- Worn powertrain mounts
- Suspension lift or lowering
- Contact with nearby parts
Scenario 6: The boot is stretched after CV axle replacement
A boot that appears unusually stretched or compressed at normal ride height may indicate:
- Incorrect axle length
- Wrong inner-joint housing
- Axle not fully seated
- Incorrect suspension position
- Replacement boot positioned incorrectly
Scenario 7: A clicking joint receives a new boot
A new boot can restore sealing, but it cannot repair worn joint tracks, rollers, balls, or cages. Repeated clicking, rough movement, or binding usually supports joint or complete axle replacement rather than boot-only service.
Scenario 8: A split universal boot is being considered
A split boot may reduce disassembly in limited situations, but seam sealing, boot shape, joint condition, grease cleanliness, and application fit remain critical.
Review the split universal CV boot guide before choosing this method.
When Is Boot-Only Repair Still Reasonable?
Boot service may remain appropriate when all of the following are supported by inspection:
- The damage was found early
- The joint remains quiet
- The joint moves smoothly
- The grease is clean
- No rust or pitting is present
- No metallic particles are found
- The axle shaft and splines are undamaged
- The correct boot, clamps, and grease are available
For the service process, review how to change a CV joint boot.
When Joint or Complete Axle Replacement Is More Appropriate
Joint or complete axle replacement is generally more appropriate when inspection finds:
- Repeated clicking
- Acceleration shudder
- Binding or rough movement
- Rust or water contamination
- Gritty grease
- Metallic particles
- Damaged splines
- Bent axle shaft
- Unknown duration of boot exposure
- Multiple worn axle components
A complete axle may also be the more practical repair when joint-only parts are unavailable or when labor and inspection requirements exceed the value of rebuilding the original assembly.
CV Boot Fitment Checks Before Installation
A replacement boot should match the joint and axle application rather than only fitting the visible diameters.
Confirm the vehicle and axle
- Year, make, and model
- Engine
- Transmission
- Drivetrain configuration
- Left or right side
- Inner or outer joint position
- Production-date split where applicable
Compare the original boot
- Small-end diameter
- Large-end diameter
- Overall boot length
- Number and shape of folds
- Material type
- Clamp-groove position
- Joint-housing profile
- Clearance at normal ride height
Stop installation when:
- The boot must be overstretched to reach both grooves
- The folds collapse into each other
- The boot contacts nearby components
- The clamps do not match the sealing grooves
- The material or profile differs significantly from the verified application
- The joint is already clicking, binding, rusty, or contaminated
Post-Installation CV Boot Checks
A boot repair should be inspected before and after a controlled road test.
- Confirm both boot ends are fully seated.
- Verify both clamps are secure.
- Check that the boot is not twisted.
- Inspect fold spacing at normal ride height.
- Turn the steering through its normal range.
- Check for contact with suspension or underbody parts.
- Confirm the axle is fully seated.
- Perform a controlled road test.
- Reinspect for fresh grease around both clamps and folds.
- Confirm no clicking, shudder, binding, or fluid leakage is present.
Routine CV Boot Inspection Timing
CV boots do not have one universal inspection interval, but they should be checked whenever the vehicle is already raised for tire, brake, suspension, oil-leak, or underbody service.
Inspection is especially useful after:
- Road-debris impact
- Suspension repair
- Engine or transmission mount replacement
- CV axle replacement
- Ride-height modification
- Driving through deep water or heavy road salt
- Finding unexplained grease inside a wheel
For broader service-life factors, review how long CV axles typically last.
Safety and Technical Boundaries
- Use approved lifting points and support equipment.
- Do not work under a vehicle supported only by a hydraulic jack.
- Keep hands, clothing, and tools away from rotating axles and wheels.
- Do not use sharp tools to probe boot folds.
- CV grease type and quantity vary by joint design.
- Boot materials and profiles are not interchangeable by appearance alone.
- Clamp type and tightening method vary by application.
- A new boot does not repair a worn or contaminated joint.
- Final repair decisions should follow verified application data and current vehicle-specific service information.
Frequently Asked Questions
Q1: What is a CV boot?
A1: A CV boot is the flexible seal around a constant velocity joint. It holds the specified grease inside and blocks water, dirt, and road debris.
Q2: What does a CV boot look like?
A2: It usually has a ribbed or accordion-shaped body with a small end sealing to the axle shaft and a larger end sealing to the joint housing.
Q3: Where is the CV boot located?
A3: Outer CV boots are near the wheel hubs, while inner CV boots are near the transmission, transaxle, differential, or intermediate shaft.
Q4: How many CV boots does a vehicle have?
A4: The number depends on drivetrain layout. A typical front-wheel-drive vehicle commonly has an inner and outer boot on each front axle.
Q5: Is a CV boot filled with grease?
A5: The boot encloses the grease-packed joint. It is not an empty dust cover.
Q6: What happens when a CV boot tears?
A6: Grease can escape and water or abrasive debris can enter, which may accelerate joint wear.
Q7: Does a torn CV boot mean the joint is already bad?
A7: Not always. Early damage may be repairable if the joint remains clean, smooth, and quiet.
Q8: What does CV boot grease leakage look like?
A8: An outer boot leak may spray grease around the inside of the wheel, while an inner boot leak may leave grease near the transmission or subframe.
Q9: Can a loose CV boot clamp cause a leak?
A9: Yes. A loose, incorrectly positioned, or damaged clamp can allow grease to escape even when the boot body is not torn.
Q10: Can a CV boot be inspected without removing the axle?
A10: Often yes. The folds, clamps, grease pattern, and surrounding clearance can usually be inspected with the axle installed and the vehicle safely supported.
Q11: Can a CV boot be replaced without replacing the axle?
A11: Yes, when the boot damage was found early and the joint remains clean, smooth, quiet, and free of internal wear.
Q12: Can a new boot fix a clicking CV joint?
A12: No. A new boot restores sealing but cannot repair worn joint tracks, rollers, balls, or cages.
Q13: What is the difference between an inner and outer CV boot?
A13: The outer boot operates through greater steering angles near the wheel, while the inner boot accommodates plunge movement and axle-angle changes near the transmission.
Q14: Are rubber and thermoplastic CV boots interchangeable?
A14: Not by assumption. Material, shape, flexibility, clamp design, and joint geometry must match the application.
Q15: Why does a replacement CV boot keep tearing?
A15: Possible causes include incorrect fitment, excessive axle angle, installation twist, loose clamps, worn mounts, contact with nearby parts, or an incorrect axle.
Q16: Can lifting or lowering a vehicle damage CV boots?
A16: Ride-height changes can alter axle angle and boot position, potentially increasing stretch, compression, or contact.
Q17: What should be included in a CV boot replacement?
A17: The repair normally requires the correct boot, clamps, specified grease, retaining hardware where applicable, and inspection of the joint and axle.
Q18: When should the complete CV axle be replaced instead?
A18: Complete axle replacement is generally more appropriate when the joint clicks, binds, shudders, contains contaminated grease, has damaged splines, or the shaft is bent.
Final Technical Takeaway
A CV boot protects the constant velocity joint by retaining grease and excluding contamination. The outer boot works through steering angle near the wheel, while the inner boot accommodates plunge movement and changes in axle position near the transmission.
Inspection should cover every fold, both clamps, grease distribution, sealing grooves, surrounding clearance, axle seating, and joint condition. Early boot damage may allow boot-only service, but clicking, shudder, binding, water contamination, metallic grease, or mechanical damage usually requires joint or complete axle replacement.
