CV Joint Leaking Grease: Diagnose the Source Before Replacing the Axle

CV joint grease around a wheel, suspension component, transmission housing, or underbody usually points toward a CV boot or clamp problem, but the first task is to confirm that the material is actually CV grease.

Transmission fluid, differential oil, engine oil, power-steering fluid, wheel-bearing grease, and leftover installation lubricant can coat the same area. Replacing a CV axle before identifying the first fresh leak point can leave the actual fault unchanged.

The most useful initial questions are:

• Is the material thick CV grease or a thinner fluid?
• Is it distributed in a radial spray or running downward from above?
• Does the first wet point begin at a boot fold, clamp, seal, or another component?
• How much grease has escaped, and how long has the joint been exposed?
• Is the joint still quiet and smooth, or has clicking, shudder, or binding started?

For a clear explanation of boot structure and location, review what a CV boot is. If a tear is already visible, see how to evaluate a torn CV boot.

Start With Fluid Identification, Not Part Replacement

Leak diagnosis becomes more reliable when the material itself is identified before the area is disturbed.

Observed Material	Typical Characteristics	Possible Source	Next Check
Thick, tacky grease	Clings to surfaces and may collect road dirt	CV joint, wheel bearing, or residual assembly grease	Trace the spray pattern and inspect CV boot folds and clamps
Thin fluid near transmission side	Runs downward and spreads more easily	Transmission or differential axle seal	Inspect the highest fresh point around the seal and axle seating area
Oil descending from above the axle	Coats the joint and nearby housing	Engine, transmission, or powertrain leak	Follow the wet path upward before condemning the CV boot
Grease limited to a recently serviced area	No clear active wet point	Residual installation grease	Clean the area and reinspect after operation
Grease concentrated around hub or bearing area	May not follow CV boot spray pattern	Wheel-bearing or hub-related source	Inspect hub seals, bearing condition, and axle splines

Why color alone is not enough

Grease and oil colors vary with age, contamination, heat, and product formulation. Texture, first wet point, distribution pattern, and component location provide stronger evidence than color alone.

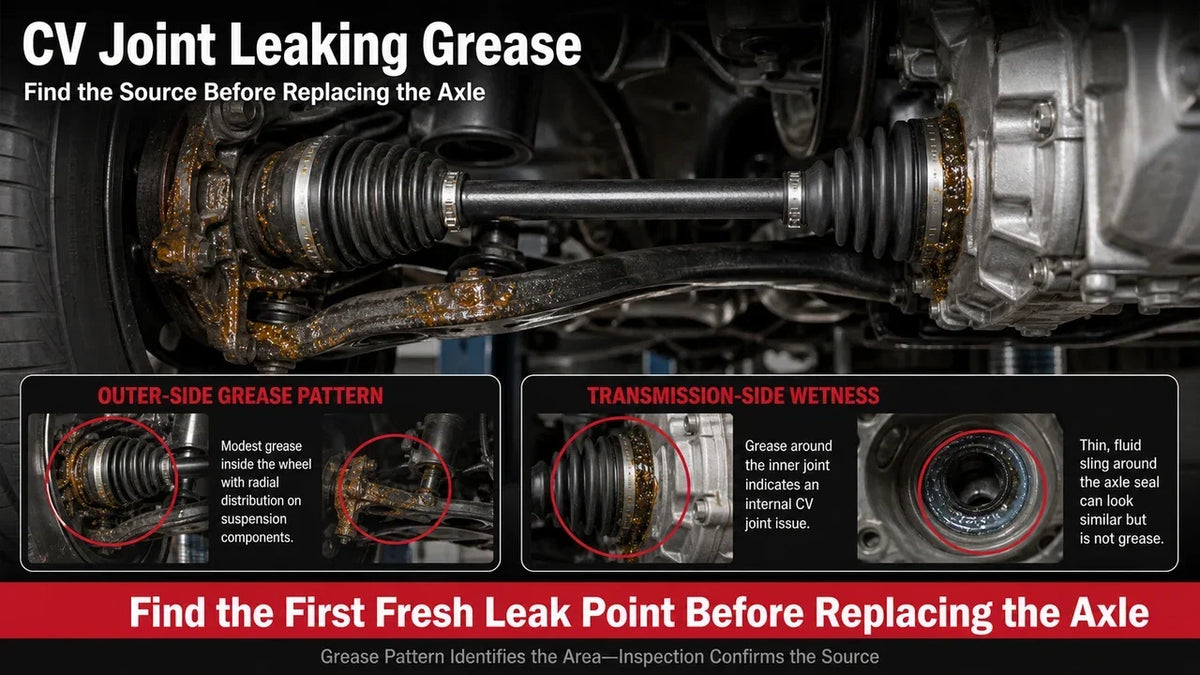

Use the Contamination Pattern as a Map

A rotating axle does not distribute grease the same way as a stationary fluid leak. The pattern often reveals whether the source is an outer boot, inner boot, clamp, seal, or unrelated fluid path.

Radial spray inside the wheel

A circular or fan-shaped grease pattern on the inside of the wheel commonly supports an outer CV boot or outer clamp leak.

Inspect:

• Every outer boot fold
• The small shaft-side clamp
• The large joint-housing clamp
• The boot lip at both sealing grooves
• Nearby contact marks

Grease may also appear on the strut, control arm, brake shield, steering knuckle, or wheel-well liner.

Grease concentrated around the inner joint housing

Grease near the transmission, transaxle, differential, intermediate shaft, or subframe may indicate an inner CV boot or clamp leak.

However, the same area may also be coated by transmission or differential fluid leaking from an axle seal. Clean the area and identify the highest fresh point before deciding which component is responsible.

For related transmission-side symptoms, review inner CV joint symptoms.

A wet band around one clamp

Grease concentrated along a clamp edge more strongly supports a sealing problem than a split in the center of the boot.

Possible causes include:

• Insufficient clamp tension
• Incorrect clamp size
• Clamp installed outside the intended groove
• Boot lip not fully seated
• Grease trapped beneath the sealing surface
• Clamp damage or distortion

Grease emerging from a boot fold

Grease beginning from the ribbed section usually supports a crack, puncture, abrasion point, or split hidden between folds.

Flex the boot gently under good lighting. Do not use a sharp pick or screwdriver to probe the material.

A downward fluid trail from above the joint

A leak that runs downward rather than forming a rotational spray may come from above the CV axle.

Check for:

• Engine-oil leakage
• Transmission-case leakage
• Valve-cover or timing-cover leakage
• Power-steering leakage where applicable
• Differential-cover or housing leakage

The Clean-and-Recheck Method



Old residue can hide the active source. A professional diagnosis often requires cleaning the area and checking again after controlled operation.

Step 1: Document the original pattern

Before cleaning, record:

• Where the material is heaviest
• The direction of the spray or run path
• Which components are coated
• Whether the grease is fresh, dry, gritty, or mixed with fluid

Step 2: Clean the affected surfaces

Clean the boot, clamps, joint housing, wheel, suspension, and nearby underbody surfaces so a new wet point can be identified.

Step 3: Inspect the sealing system at rest

Check:

• Boot folds
• Boot position
• Clamp grooves
• Clamp tension and damage
• Joint-housing sealing land
• Shaft-side sealing land
• Axle seating

Step 4: Reproduce the operating condition

Depending on the original complaint, perform a controlled road test that may include normal steering movement, low-speed turns, and moderate acceleration without aggressive maneuvers.

Step 5: Reinspect for the first fresh point

The first new wet point usually provides stronger source evidence than the final distribution pattern.

Outer CV Joint Grease Leak Scenarios

Scenario 1: Grease appears inside the wheel after highway driving

Higher axle speed can distribute grease farther from a small outer boot opening or clamp leak.

Check:

• Outer boot folds
• Outer boot clamps
• Boot contact with the steering knuckle or suspension
• Remaining grease quantity
• Clicking during powered turns

Scenario 2: Grease is visible, but no boot tear can be found

A small split may remain hidden inside a compressed fold. The leak may also come from a clamp or boot lip.

Rotate and position the axle as permitted by the service procedure so every boot fold can be inspected.

Scenario 3: Only the large outer clamp is wet

A wet large-end clamp may indicate poor seating between the boot and joint housing.

Possible causes include:

• Clamp not tightened correctly
• Boot lip outside the groove
• Grease beneath the sealing land
• Incorrect boot diameter
• Housing corrosion or damage

Scenario 4: Clicking begins after grease has been leaking

Clicking during a tight powered turn may indicate that the outer joint has already developed internal wear. Tightening the clamp or replacing the boot will not restore worn joint surfaces.

For broader symptom interpretation, review bad CV axle symptoms.

Inner CV Joint Grease Leak Scenarios

Scenario 5: Grease is concentrated around the transmission case

Confirm whether the source is:

• Inner CV boot fold
• Inner clamp
• Transmission or differential axle seal
• Incomplete axle seating
• Residual grease from prior work

Scenario 6: Grease appears near the inner joint after mount replacement

Engine or transmission mount work can change the powertrain position and inner-joint angle.

Inspect for:

• Boot stretch or compression
• Boot twist
• Mount preload
• Powertrain misalignment
• Changed plunge position

Scenario 7: The inner boot leaks only under acceleration

Torque can move the powertrain and change the joint’s plunge position. A marginal clamp or incorrectly seated boot may leak more when the joint is loaded.

Check engine and transmission mounts, intermediate-shaft support, axle angle, and boot position.

Scenario 8: Thin fluid and thick grease are both present

An inner boot leak and axle-seal leak can exist at the same time. Clean the area and determine whether there are two separate fresh leak points.

Why a New CV Boot May Still Leak Grease

Incorrect boot size

A boot that is too loose may not seal, while a boot that is too tight may stretch or distort the sealing lip.

Wrong boot material or geometry

The boot may fit over the joint but still fold incorrectly, collapse, rub, or fail to maintain sealing pressure through suspension and steering travel.

Boot installed twisted

A twisted boot concentrates stress and changes fold movement. It may leak at a clamp or crack prematurely.

Incorrect clamp tension

A loose clamp may allow grease to escape. Excessive clamp compression may damage the boot or deform the sealing lip.

Certain stainless-steel boot clamps require dedicated tools and application-specific procedures. Clamp tension should not be guessed.

Grease left under the sealing land

The boot lip and housing groove must be clean before clamping. Grease between the boot and sealing surface may create a leak path.

Axle not fully seated

An incorrectly seated axle may alter boot position, seal contact, or inner-joint alignment.

Axle geometry remains incorrect

Repeat leakage may result from:

• Incorrect axle length
• Wrong joint housing
• Lifted or lowered suspension
• Collapsed or incorrectly installed mounts
• Subframe position change
• Contact with nearby components

A Grease Leak Is Also an Internal-Condition Question

Stopping the external leak is only part of the repair. The joint condition must also be evaluated.

Estimate how much grease has been lost

A small wet clamp edge is different from grease spread across the wheel well or underbody.

Estimate how long the joint has been exposed

A recent clean leak may leave the joint serviceable. Long or unknown exposure increases the chance of dirt and water contamination.

Inspect grease condition

Grease Condition	Possible Meaning	Repair Direction
Clean and consistent	Leak may have been detected early	Boot or clamp service may remain possible after inspection
Dry or reduced quantity	Extended lubricant loss	Inspect tracks, rollers, balls, and housing for wear
Gritty	Dirt or road-debris contamination	Joint or axle replacement may be more reliable
Milky or rusty	Water entry and corrosion	Inspect for pitting, roughness, and binding
Metallic particles	Internal component wear	Joint or complete axle replacement usually indicated

Check operating symptoms

Inspect for:

• Clicking during powered turns
• Acceleration shudder
• Clunk during drive-to-reverse changes
• Rough plunge movement
• Binding
• Excessive mechanical play

For a detailed repair decision, review CV boot repair kit vs complete CV axle replacement.

Clamp Service, Boot Service, Joint Repair, or Complete Axle?

Repair Option	Appropriate Evidence	Important Limitation
Clamp correction or replacement	Boot intact, grease clean, joint quiet, sealing surfaces undamaged	Clamp service does not correct contamination or joint wear
Complete boot service	Recent leak, clean grease, smooth and quiet joint	Requires cleaning, inspection, correct grease, boot, clamps, and hardware
Separate joint replacement	Joint damage confirmed, shaft and opposite joint remain serviceable	Availability and labor vary by application
Complete CV axle replacement	Clicking, shudder, binding, contamination, damaged shaft, splines, or unknown exposure	Exact axle fitment must be verified

When tightening a clamp may be enough

Clamp-only service may be reasonable only when:

• The boot material is undamaged
• The boot lip is correctly seated
• The sealing lands are clean and intact
• The grease remains clean
• No significant grease quantity has been lost
• The joint is quiet and smooth
• The correct clamp and installation procedure are used

When tightening the clamp is not enough

Clamp correction alone is incomplete when:

• The boot is torn
• The boot is hardened or distorted
• The joint contains contaminated grease
• The joint clicks, shudders, binds, or moves roughly
• The sealing land is damaged
• The boot geometry or axle angle is incorrect

CV Boot and Clamp Fitment Checks

A replacement boot or clamp should match the exact joint and axle application.

Confirm the application

• Year, make, and model
• Engine
• Transmission
• Drivetrain
• Left or right side
• Inner or outer joint
• Production-date split

Compare the sealing system

• Small-end boot diameter
• Large-end boot diameter
• Boot length
• Fold geometry
• Material type
• Clamp width and style
• Clamp-groove position
• Joint-housing profile
• Shaft sealing surface

Stop installation when:

• The boot must be excessively stretched
• The folds collapse or contact each other
• The clamp does not sit in the intended groove
• The boot contacts suspension or underbody parts
• The sealing surface is corroded or damaged
• The joint already contains contaminated grease

Post-Repair Leak Verification

A clean repair should be verified under the same operating conditions that produced the original leak pattern.

1. Remove all old grease residue from nearby surfaces.
2. Confirm both boot ends are fully seated.
3. Verify both clamps are correctly positioned.
4. Check that the boot is not twisted.
5. Inspect fold spacing at normal ride height.
6. Turn the steering through its normal range where applicable.
7. Check suspension and underbody clearance.
8. Confirm the axle is fully seated.
9. Perform a controlled road test.
10. Reinspect the folds, clamps, wheel, suspension, transmission area, and underbody for fresh grease.
11. Confirm no clicking, shudder, clunking, or binding is present.

Professional CV Grease Leak Diagnostic Sequence

1. Identify whether the material is grease or fluid.
2. Document the original contamination pattern.
3. Trace the leak to the highest or first fresh point.
4. Inspect both boot folds and clamps.
5. Differentiate outer boot, inner boot, axle seal, and unrelated fluid sources.
6. Clean the area.
7. Reproduce the operating condition safely.
8. Reinspect for the first new wet point.
9. Evaluate grease quantity, contamination, noise, play, and movement.
10. Choose clamp, boot, joint, or complete axle service based on the evidence.
11. Correct fitment, geometry, mount, or clearance causes.
12. Verify the repair after a controlled road test.

Safety and Technical Boundaries

• Do not identify a leak by color alone.
• Do not tighten an unknown clamp without the correct tool and procedure.
• Do not add grease over contaminated grease without cleaning and inspection.
• Do not work beneath a vehicle supported only by a hydraulic jack.
• Keep hands, clothing, and tools away from rotating axles and wheels.
• CV grease type and quantity vary by joint design.
• Boot materials, sealing lands, and clamp styles vary by application.
• A new clamp or boot cannot repair worn joint surfaces.
• Axle-nut procedures and retaining hardware are vehicle-specific.
• Final diagnosis and repair should follow verified application data and current service information.

Frequently Asked Questions

Q1: Why is my CV joint leaking grease?

A1: Common causes include a torn boot, hidden fold crack, loose clamp, incorrect clamp tension, distorted boot, damaged sealing lip, or incorrect axle geometry.

Q2: Can a CV joint leak without a visible boot tear?

A2: Yes. Grease can escape through a hidden fold crack, loose clamp, poorly seated boot lip, or damaged sealing surface.

Q3: What does a CV grease leak look like?

A3: Outer boot leaks often create a radial spray inside the wheel, while inner boot leaks may leave grease near the transmission, subframe, or inner joint housing.

Q4: Is CV grease the same as transmission fluid?

A4: No. CV grease is generally much thicker, but texture, source location, and fresh leak path should be checked rather than relying on color alone.

Q5: Can transmission fluid look like an inner CV boot leak?

A5: Yes. An axle-seal leak may coat the same area as an inner boot leak.

Q6: Can I tighten the CV boot clamp to stop the leak?

A6: Only when the boot, sealing lands, grease, and joint remain serviceable and the correct clamp and installation procedure are used.

Q7: Why is grease leaking from the CV boot clamp?

A7: The clamp may be loose, incorrectly sized, installed outside the groove, or sealing against a dirty or damaged surface.

Q8: Why is there grease inside the wheel?

A8: A rotating outer CV boot can throw grease around the wheel when a fold or clamp leaks.

Q9: Why is there grease near the transmission?

A9: Possible sources include an inner CV boot, inner clamp, axle-seal leak, incomplete axle seating, or residual grease from previous service.

Q10: Does a CV grease leak mean the joint is bad?

A10: Not automatically. Joint condition depends on grease loss, contamination, exposure time, noise, play, and movement quality.

Q11: Can a leaking CV boot be repaired?

A11: Boot or clamp service may be possible when the joint remains clean, smooth, quiet, and mechanically undamaged.

Q12: Can a new clamp fix a torn boot?

A12: No. A clamp cannot seal a split boot body or repair worn material.

Q13: Why is a new CV boot still leaking?

A13: Common causes include wrong size, incorrect material, poor seating, clamp error, boot twist, axle misalignment, or contact with nearby components.

Q14: Should contaminated grease be replaced?

A14: Yes. The joint should be cleaned and inspected rather than adding fresh grease over contaminated material.

Q15: When should the complete CV axle be replaced?

A15: Complete axle replacement is usually more appropriate when the joint clicks, shudders, binds, contains contaminated grease, has damaged splines, or the shaft is bent.

Q16: Can a bad engine mount cause a CV boot leak?

A16: Yes. Excessive powertrain movement can change axle angle, boot position, and joint plunge under torque.

Q17: What should be checked after repairing a CV grease leak?

A17: Check boot seating, clamp position, boot twist, axle seating, steering and suspension clearance, fresh grease, noise, shudder, and binding.

Q18: Should both CV boots be replaced if one leaks?

A18: Not automatically. Inspect all boots and repair or replace components according to their actual condition and application requirements.

Final Diagnostic Takeaway

CV joint grease leakage should be diagnosed from the material, first fresh wet point, spray pattern, boot and clamp condition, and internal joint evidence. Grease inside the wheel commonly points toward the outer boot, while transmission-side contamination may come from an inner boot, clamp, axle seal, or another fluid source.

A clamp or boot repair may remain appropriate when the joint is clean, quiet, smooth, and mechanically undamaged. Contaminated grease, clicking, acceleration shudder, rough movement, damaged splines, or a bent shaft usually supports joint or complete CV axle replacement.
