Quick Answer
Jeep Wrangler JK and JL radiator problems are often better understood as an aging and operating-condition issue rather than simply a lack of cooling capacity. OE-style Wrangler radiators commonly use an aluminum core with plastic end tanks, and as the assembly ages, coolant leaks may develop around the plastic tank, hose neck, or tank-to-core sealing area.
Wrangler operating conditions can add additional stress. Low-speed off-road driving, climbing, towing, hot-weather use, vibration, and mud or debris packed into the radiator can increase cooling-system demand or reduce airflow. However, overheating alone does not confirm radiator failure. The exact coolant leak source, cooling-fan operation, thermostat, coolant circulation, system pressure, and coolant condition should be checked before replacing the radiator. For replacement options, see the BDFHYK radiator collection.
Why the Jeep Wrangler Radiator Deserves a Closer Inspection
The radiator construction used on many Jeep Wrangler applications is not unusual. Plastic end tanks combined with an aluminum radiator core are widely used across modern vehicles because the design provides a practical balance of weight, packaging, manufacturing efficiency, and heat-transfer performance. DENSO also identifies plastic tanks and aluminum cores as a common automotive radiator construction. DENSO radiator technical information.
The more useful question is not whether plastic-tank radiators are inherently poor designs. It is what happens to the radiator after years of repeated heat cycles, cooling-system pressure changes, hose-clamp load, vibration, contamination, and vehicle use.

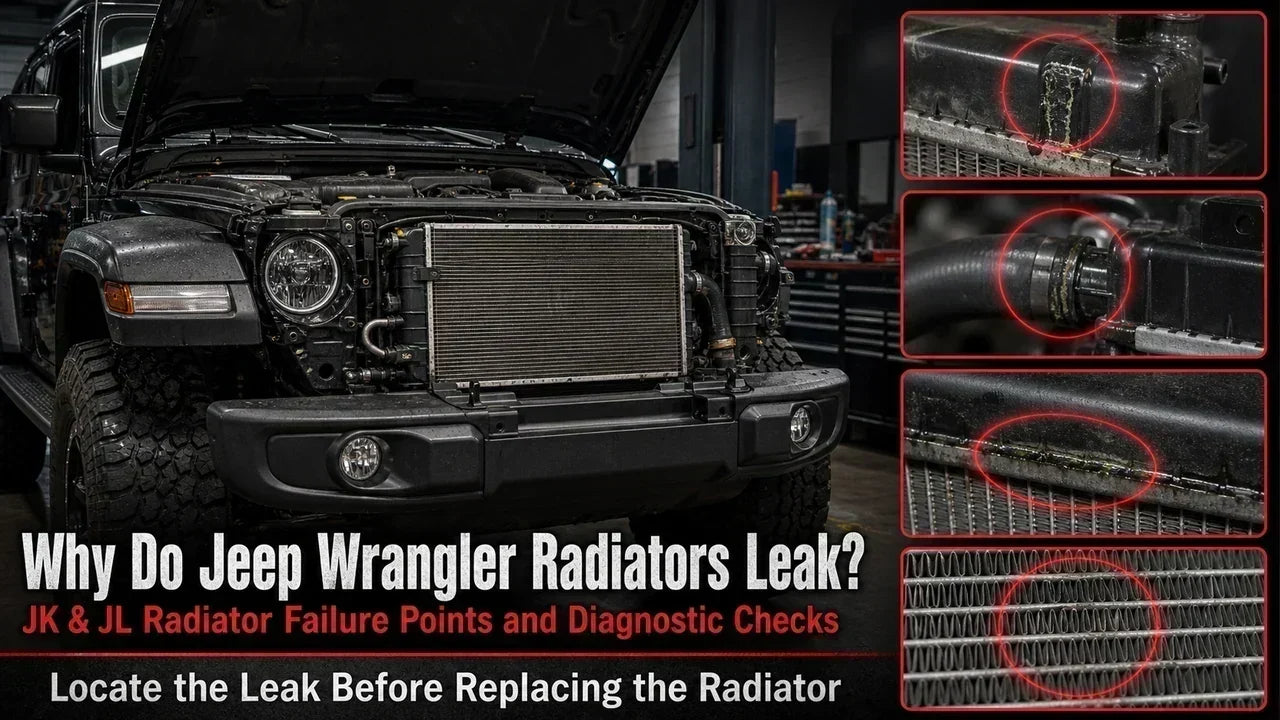

On an aging Wrangler, several areas deserve particular attention:
- Plastic end tanks
- Upper and lower hose necks
- Tank-to-core crimp and sealing areas
- Aluminum tubes and core
- Radiator fins and external airflow passages
How Heat Cycles and System Pressure Affect an Aging Radiator
Every normal drive cycle heats the coolant and radiator assembly, then allows them to cool again after shutdown. As temperature changes, the cooling system repeatedly experiences material expansion, contraction, and pressure variation.
The radiator therefore does not experience one isolated heat event. It experiences thousands of repeated thermal cycles over its service life.
From a repair standpoint, that matters because the radiator combines different materials and mechanical interfaces:
- Plastic end tanks
- Aluminum core and tubes
- Tank-to-core sealing surfaces
- Crimped retaining areas
- Plastic hose necks under hose and clamp load
As these components age, plastic can become less tolerant of repeated thermal and mechanical loading, while seals and joints continue to experience expansion and contraction. This does not mean every plastic-tank radiator will fail in the same way or at the same mileage, but it explains why end tanks, hose necks, and tank-to-core seams are important inspection areas on an older Wrangler.
1. Plastic End Tanks and Hose Necks Can Become Aging Points
The plastic end tanks contain hot, pressurized coolant while also supporting hose connections and the mechanical interface with the radiator core.
The upper and lower hose necks deserve particular attention because they also remain under hose and clamp load. As the radiator ages, a small crack or seep can initially appear only when the cooling system reaches operating temperature and pressure.
What a Technician Looks For
- Dried coolant residue around the upper or lower hose neck
- A wet line along the plastic end tank
- Hairline cracks around the inlet or outlet
- Coolant accumulating below the radiator after a heat cycle
- Staining that returns after the area has been cleaned
Do not condemn the radiator until the hose, clamp, nearby fittings, reservoir connections, and surrounding cooling-system components have also been inspected.
Coolant found underneath the radiator does not automatically prove that the radiator itself is leaking. Coolant can travel along hoses, brackets, shields, or other components before reaching the ground. If coolant repeatedly disappears but no obvious leak is visible, follow the diagnostic sequence in Why Is My Coolant Reservoir Empty? before replacing parts.
2. The Tank-to-Core Joint Is Another Important Inspection Area
A plastic-tank radiator relies on a sealed mechanical connection between the plastic end tank and the aluminum core. This joint must remain sealed while the two sections repeatedly experience temperature and pressure changes.
A leak around this area may appear as:
- Light coolant staining down one side of the radiator
- A damp tank-to-core seam after the engine reaches operating temperature
- Dried coolant residue along the crimped edge
- Slow coolant loss without a large puddle
The key diagnostic distinction is between a confirmed tank-to-core seam leak and coolant that has simply traveled across the seam from another source.
Clean the suspected area first and identify where the moisture begins. For a slow or difficult-to-find leak, an appropriate cooling-system pressure test may help expose the source.
Always follow the vehicle-specific pressure-testing procedure and pressure specification. Do not apply one universal PSI value to every Wrangler cooling system.
Common Jeep Wrangler Radiator Failure Areas to Inspect
| Inspection Area | Possible Failure | What to Look For |
|---|---|---|
| Plastic end tank | Aging crack or coolant seepage | Wetness, dried coolant residue, or a visible hairline crack |
| Tank-to-core joint | Slow seam or sealing-area leak | Coolant staining concentrated along the crimped edge |
| Upper or lower hose neck | Cracking or deformation | Leak around the hose, clamp, or plastic neck |
| Aluminum core and tubes | Impact, corrosion, or pinhole leak | Wet core, localized residue, or damaged coolant tube |
| Internal passages | Possible contamination or restriction | Requires cooling-system diagnosis rather than visual inspection alone |
| Radiator fins | Mud, insects, debris, or physical damage | Reduced open fin area or heavily damaged sections |
Why Wrangler Operating Conditions Can Expose Radiator Problems
A Wrangler radiator does not operate in exactly the same environment as a lightly loaded commuter vehicle. Depending on how the vehicle is used, the cooling system may regularly see low vehicle speed combined with substantial engine load.
Examples include:
- Low-speed trail driving
- Long climbs
- Hot-weather operation
- Towing
- Extended engine load at relatively low road speed
These conditions do not automatically make a Wrangler overheat. They increase the amount of heat the cooling system may need to reject while natural vehicle-speed airflow can be limited.
That distinction is important. The issue is not simply that the Wrangler always operates at a higher coolant temperature. The relevant repair question is whether the cooling system has enough coolant flow and airflow for the operating condition.
3. Off-Road Mud and Debris Can Reduce Radiator Airflow
External radiator contamination is especially relevant on a vehicle used off-road.
Mud, insects, leaves, vegetation, sand, and road debris can accumulate across the radiator or between the condenser and radiator. As the open fin area decreases, less air can pass efficiently through the heat exchangers.
Jeep specifically advises checking the radiator for mud and debris after off-road operation because deposits can reduce cooling-system effectiveness. Jeep Wrangler off-road inspection guidance.
A radiator can therefore remain structurally intact and still reject less heat because external airflow has been restricted.
Check Airflow Before Assuming an Internal Radiator Restriction
Airflow should move high on the diagnostic list when the complaint includes:
- Overheating during slow off-road driving
- Temperature rising in stop-and-go traffic
- Temperature increasing when the A/C is operating
- Temperature improving once vehicle speed increases
In these situations, inspect:
- Cooling-fan operation
- Fan command and electrical operation
- Fan shroud condition
- Radiator fin blockage
- Debris between the condenser and radiator
- Damaged or heavily flattened fins
Do not replace the radiator simply because the temperature rises while the Wrangler is stationary. A fan or external airflow problem can create a similar symptom.
4. Off-Road Vibration Adds Mechanical Stress, but It Does Not Automatically Cause a Leak
Off-road driving exposes the vehicle to vibration, chassis movement, rough-road impact, suspension articulation, and repeated changes in vehicle loading.
Jeep's own off-road guidance notes that off-road operation places greater stress on the vehicle than most normal road driving and recommends inspection after off-road use. See Jeep's off-road inspection recommendations.
From a radiator-diagnosis perspective, that does not mean vibration automatically causes a plastic tank or crimp joint to fail. It means mechanical stress becomes another variable acting on an aging radiator assembly.
Check for:
- Loose, damaged, or missing radiator mounts
- Evidence that the radiator is contacting surrounding components
- Stress around hose connections
- Physical impact damage
- Cracks developing near mounting or molded transition areas
- Coolant seepage around an already aged tank-to-core joint
Off-road use should therefore be treated as a contributing condition, not as proof of radiator failure.
5. Coolant Condition Can Affect Radiator Life and Cooling Performance
A replacement radiator should not be installed into a contaminated cooling system without first checking the condition of the existing coolant.
Before replacement, inspect for:
- Rust or corrosion residue
- Heavy sediment
- Oily contamination
- Mixed or unknown coolant
- Abnormal deposits
- Debris from a previous cooling-system failure
Jeep coolant requirements vary by model year and engine. Use the exact coolant specification listed for the vehicle rather than selecting coolant only by color or a generic "universal" label.
For example, Jeep's 2015 Wrangler guidance specifies the applicable OAT coolant and warns against mixing incompatible coolant chemistries. It also warns that incompatible supplemental rust inhibitors may contribute to radiator blockage. 2015 Jeep Wrangler coolant and cooling-system guidance.
This becomes especially important on an older or previously owned Wrangler when the cooling-system service history is unknown.
Coolant contamination does not automatically mean the radiator is internally clogged. But sediment, corrosion products, or incompatible coolant should be corrected before a new radiator is placed into the same system.
If you are not sure whether coolant should be added through the radiator, reservoir, or pressurized expansion tank, see Coolant Reservoir vs Radiator: Where Should You Add Coolant?.
6. Overheating Does Not Automatically Mean the Wrangler Radiator Is Bad
The radiator is only one component of the cooling system. An overheating Wrangler should be diagnosed as a complete system before the radiator is condemned.
Possible causes include:
- Low coolant
- External coolant leak
- Cooling-fan failure
- Blocked external airflow
- Thermostat malfunction
- Water-pump circulation problem
- Restricted or damaged hose
- Radiator restriction
- Trapped air after service
- Incorrect cooling-system bleeding
- Pressure-control problems
- Internal engine problems when other symptoms support further testing
If coolant is bubbling, boiling, or repeatedly being pushed into the reservoir, do not immediately assume the radiator is the cause. Review Why Is My Coolant Reservoir Bubbling, Boiling or Overflowing? for the pressure, trapped-air, overheating, and cooling-system checks that should be separated from radiator failure.
Wrangler Overheating Symptoms and What to Check
| Symptom | Possible Area | Professional Check |
|---|---|---|
| Coolant visible along the side tank | Tank, seam, or nearby hose | Clean the area and trace the exact starting point of the leak |
| Overheats mainly at idle | Cooling fan or airflow | Check fan operation, shroud condition, and blocked heat exchangers |
| Overheats during slow trail driving | Airflow and cooling demand | Check fan operation, mud/debris buildup, coolant level, and heat-exchanger airflow |
| Overheats under sustained load | Coolant flow or heat rejection | Check coolant level, thermostat, circulation, airflow, and radiator condition |
| Coolant level repeatedly drops | External or internal leak | Inspect the complete system and pressure-test when appropriate |
| New radiator but engine still overheats | Problem elsewhere in the cooling system | Check bleeding, fan, thermostat, water pump, coolant flow, and pressure control |
| Coolant smell without an obvious puddle | Small hot leak | Inspect after a heat cycle or appropriate pressure test |
| Upper hose connection is wet | Hose, clamp, or radiator neck | Determine whether the leak begins at the hose or plastic neck |
Why Does a Wrangler Overheat at Idle but Cool Down While Driving?
A Wrangler that runs hotter at idle but moves back toward normal temperature once vehicle speed increases should be checked for an airflow problem before an internally clogged radiator is assumed.
Vehicle speed increases natural airflow through the condenser and radiator. At idle and low road speed, the cooling system depends much more heavily on fan-generated airflow.
Inspect:
- Cooling-fan operation
- Fan control
- Fan shroud
- Mud or debris between heat exchangers
- External radiator blockage
- Damaged or heavily flattened fins
Why Does a Wrangler Overheat at Highway Speed or During a Long Climb?
Overheating under sustained engine load requires a different diagnostic approach.
Possible areas include:
- Low coolant level
- Thermostat restriction
- Radiator restriction
- Insufficient coolant circulation
- Water-pump problems
- Restricted hoses
- Insufficient heat rejection
A suspected circulation problem may involve components beyond the radiator. If diagnosis points toward the pump instead of the radiator, review compatible BDFHYK water pumps only after the fault has been confirmed.
If normal cooling-system checks do not explain repeated overheating, further engine diagnosis may be justified when the symptoms support it.
When Should a Jeep Wrangler Radiator Be Replaced?
Radiator replacement becomes much easier to justify when the failure is directly confirmed.
Confirmed Plastic End-Tank Crack
Coolant originates directly from a visible crack in the plastic tank.
Confirmed Hose-Neck Crack
The inlet or outlet neck itself is cracked, distorted, or structurally damaged rather than the hose simply leaking around the connection.
Confirmed Tank-to-Core Seam Leak
After cleaning the area, coolant repeatedly appears directly from the tank-to-core sealing or crimp area during the appropriate test condition.
Core or Tube Leak
Coolant is visibly escaping from an aluminum tube or damaged section of the heat-exchanger core.
Severe Physical Damage
Impact has damaged coolant tubes, tanks, mounting points, or the structural core.
Confirmed Internal Restriction
Testing supports a radiator flow or heat-transfer restriction after other likely cooling-system causes have been evaluated.
A few bent fins alone do not automatically justify replacement. Minor fin deformation should be distinguished from severe airflow restriction or damage to coolant tubes, tanks, seams, fittings, or mounting structures.
OE-Style Replacement vs All-Aluminum Radiator
Once radiator failure has been confirmed, the next decision should not be reduced to "plastic is bad and aluminum is good."
OE-Style Plastic-Tank and Aluminum-Core Radiator
An OE-style aftermarket replacement is generally intended to restore the original radiator configuration with minimal changes to the surrounding cooling system.
- Original-style packaging
- Factory-style mounting locations
- Factory hose routing
- Compatibility with the original fan and shroud when correctly matched
- Lower modification requirement for a standard replacement repair
All-Aluminum Radiator
An all-aluminum radiator removes the plastic end tanks and plastic hose-neck construction found in a conventional plastic-tank radiator. That directly eliminates those specific plastic-component failure modes from the radiator design.
That can make an all-aluminum configuration attractive for some off-road, towing, modified, or sustained-load applications.
However, all-aluminum construction does not automatically mean better cooling or longer service life.
Actual radiator performance and durability still depend on:
- Core design
- Tube size and construction
- Fin design and density
- Available frontal area
- Coolant flow
- Cooling-fan performance
- Airflow through the complete heat-exchanger stack
- Mounting and vibration isolation
- Construction quality
- Correct installation
Likewise, a thicker radiator or a radiator advertised with more rows should not automatically be assumed to provide better vehicle-level cooling.

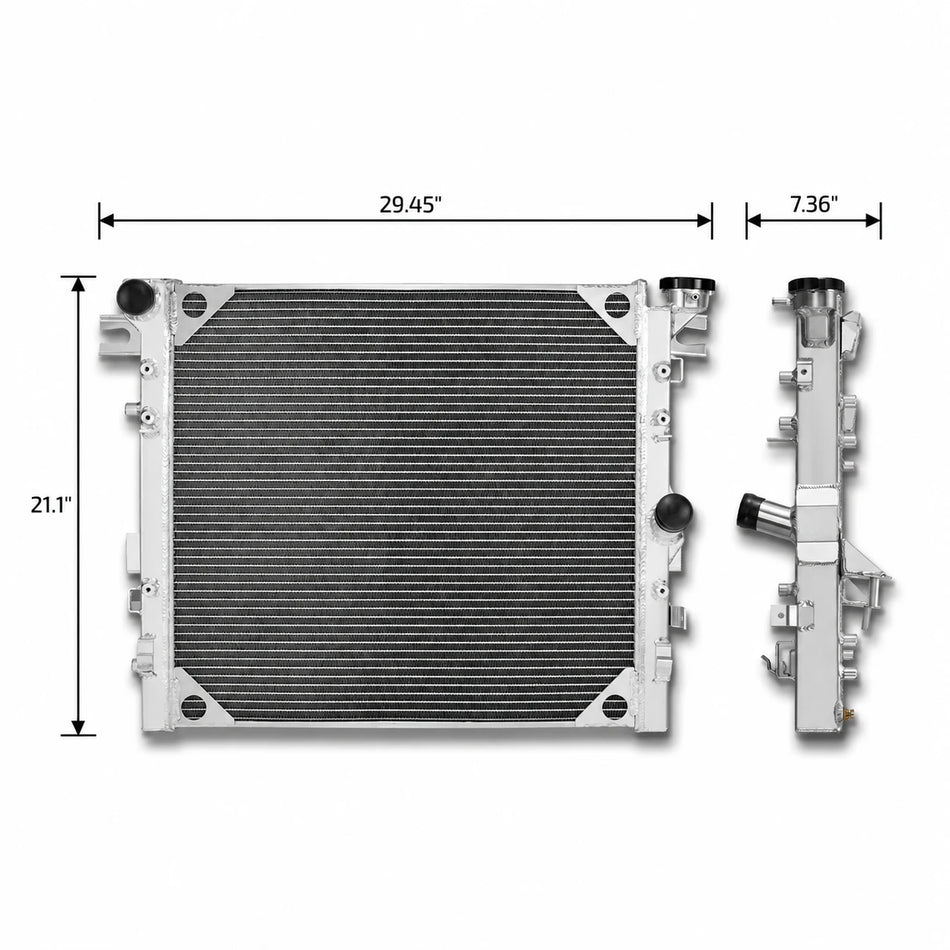

For compatible 2007–2018 Jeep Wrangler JK and JK Unlimited 3.8L/3.6L V6 applications, BDFHYK currently offers a CU2957 3-row 44 mm aluminum radiator for Jeep Wrangler JK. Confirm the model year, engine, dimensions, hose locations, mounting points, and fan-shroud configuration before ordering.

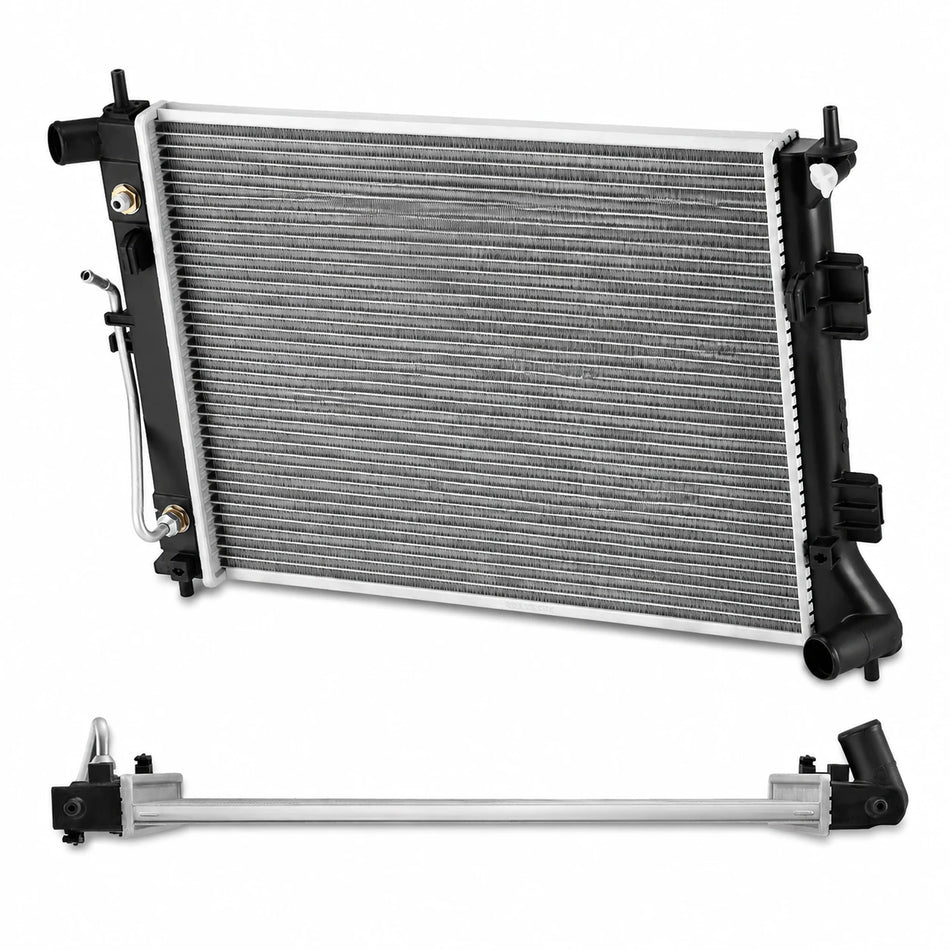

For other vehicles and radiator configurations, browse the BDFHYK radiator replacement collection and verify the complete application rather than choosing by appearance alone.
What Should Be Checked Before Ordering a Wrangler Radiator?
Do not choose a radiator using only the words "Jeep Wrangler."
- Model year
- JK or JL generation
- Engine
- Transmission where relevant
- Cooling-package configuration
- Overall radiator dimensions
- Core dimensions
- Upper inlet position and diameter
- Lower outlet position and diameter
- Mounting tabs and locating points
- Fan-shroud mounting points
- Transmission cooler connections where equipped
- Engine oil cooler connections where equipped
- Drain configuration
- Filler-neck or pressure-cap configuration
- Sensor or auxiliary ports where applicable
Two Wrangler radiators can look nearly identical in a product image while using different hose positions, cooler fittings, fan mounting points, or overall dimensions.
Fitment should therefore be confirmed by the complete vehicle and radiator configuration rather than appearance alone.
What Should Be Checked After Radiator Replacement?
- Confirm the correct coolant specification for the exact vehicle.
- Inspect the cooling system for contamination before filling.
- Reconnect every hose, cooler line, and electrical component that was disturbed.
- Fill the system according to the vehicle-specific procedure.
- Bleed trapped air correctly.
- Start the engine and inspect for leaks as temperature rises.
- Confirm normal cooling-fan operation.
- Verify that operating temperature stabilizes normally.
- Allow the vehicle to cool completely.
- Recheck the coolant level.
- Inspect the repaired area again after a complete heat cycle.
If coolant level behavior is unclear after service, see where coolant should be added in a radiator or reservoir system before assuming that the cooling system is underfilled.
Safety: Never remove a radiator cap or cooling-system pressure cap while the engine and cooling system are hot or pressurized. Hot coolant and steam can cause serious burns. Jeep provides the same warning in its cooling-system guidance. Jeep Wrangler cooling-system safety information.
Final Diagnosis
A Jeep Wrangler radiator problem should be approached as a location-and-condition diagnosis, not as proof that the Wrangler cooling system is fundamentally defective.
JK and JL radiators use construction that is common across many modern vehicles. As the assembly ages, plastic end tanks, hose necks, tank-to-core joints, aluminum tubes, and external fin surfaces all become legitimate inspection points.
Wrangler operating conditions can add additional variables. Low-speed high-load operation increases cooling demand, off-road debris can restrict airflow, rough operation can add mechanical stress, and poor coolant maintenance can contribute to contamination or restriction.
None of these conditions should replace actual testing.
Use this repair sequence:
Locate the exact coolant source → Check airflow and coolant circulation → Confirm radiator failure → Correct contamination or related cooling-system faults → Choose the correct replacement configuration.
Once radiator failure is confirmed, use the BDFHYK radiator catalog to compare application, dimensions, hose locations, mounting configuration, and cooling-system connections before ordering.
Jeep Wrangler Radiator FAQs
Q: Why do Jeep Wrangler radiators develop leaks?
A: Aging plastic end tanks, hose necks, tank-to-core sealing areas, core damage, and other cooling-system conditions can all contribute to a leak. Repeated heat cycles and mechanical loading explain why these areas deserve inspection, but the exact leak source should still be confirmed before replacement.
Q: Are Jeep Wrangler JK radiators prone to leaking at the plastic end tanks?
A: Plastic end tanks and hose necks are important inspection areas on an aging JK radiator because they repeatedly experience heat, cooling-system pressure, and hose-clamp load. A leak should be traced directly to the plastic component before the radiator is condemned.
Q: Where should I look first for a Jeep Wrangler radiator leak?
A: Inspect the plastic end tanks, upper and lower hose connections, tank-to-core seams, radiator core, drain area, and nearby coolant hoses. Clean existing residue first so the true starting point of the leak can be identified.
Q: Can off-road driving damage a Jeep Wrangler radiator?
A: Off-road driving adds vibration, chassis movement, impact exposure, and contamination from mud or debris. These conditions can increase stress on an aging cooling-system assembly, but off-road use by itself does not confirm radiator damage.
Q: Can mud cause a Jeep Wrangler to overheat?
A: Yes, heavy mud or debris can restrict airflow through the radiator and reduce heat rejection. After off-road operation in mud, sand, or heavy debris, inspect the radiator and condenser surfaces and clean them using a method that does not damage the fins.
Q: Does overheating mean my Wrangler radiator is clogged?
A: No. Low coolant, cooling-fan problems, thermostat malfunction, water-pump circulation, trapped air, restricted hoses, blocked airflow, and other cooling-system faults can create similar symptoms. Radiator restriction should be confirmed rather than assumed.
Q: Why does my Wrangler overheat at idle but cool down while driving?
A: That pattern makes airflow one of the first areas to inspect. Check the cooling fan, fan controls, shroud, condenser and radiator surfaces, and external fin blockage before assuming the radiator is internally clogged.
Q: Why is my Wrangler still overheating after installing a new radiator?
A: Check coolant level, bleeding, trapped air, cooling-fan operation, thermostat function, water-pump circulation, hose condition, airflow, and system pressure control. A new radiator cannot correct a fault elsewhere in the cooling system.
Q: Is an all-aluminum radiator better for a Jeep Wrangler?
A: Not automatically. An all-aluminum radiator eliminates plastic end tanks and plastic hose necks, but actual cooling performance and durability still depend on core design, airflow, coolant flow, mounting, construction quality, fitment, and installation.
Q: Can a leaking plastic Wrangler radiator tank be repaired?
A: Repair feasibility depends on the exact damage and radiator construction. A structural plastic-tank crack, broken hose neck, leaking tank-to-core joint, or damaged core often makes radiator replacement more practical than attempting an external seal repair.
Q: Can incorrect coolant damage a Jeep Wrangler radiator?
A: Incorrect or incompatible coolant can reduce corrosion protection or contribute to cooling-system problems. Always use the specification required for the exact model year and engine, and investigate contamination before installing a new radiator.
Q: Can I keep driving with a small Wrangler radiator leak?
A: Continued driving is not recommended when coolant is being lost or engine temperature is abnormal. A small leak can become more significant as temperature and cooling-system pressure rise. If overheating, steam, or substantial coolant loss occurs, stop safely and allow the system to cool before diagnosis.
Q: Can bent radiator fins cause a Wrangler to overheat?
A: A small number of bent fins usually does not confirm radiator failure. Severe fin damage, mud, debris, or a large blocked area can reduce airflow and heat transfer. Inspect the affected area and check for damaged coolant tubes before deciding whether replacement is necessary.
Q: Should I replace the thermostat when replacing a Wrangler radiator?
A: Not automatically. Replace the thermostat when testing, service history, contamination, or the vehicle-specific repair procedure provides a reason to do so. Replacing unrelated cooling-system components without diagnosis can increase repair cost without correcting the original problem.
