What does a car A/C system diagram show?

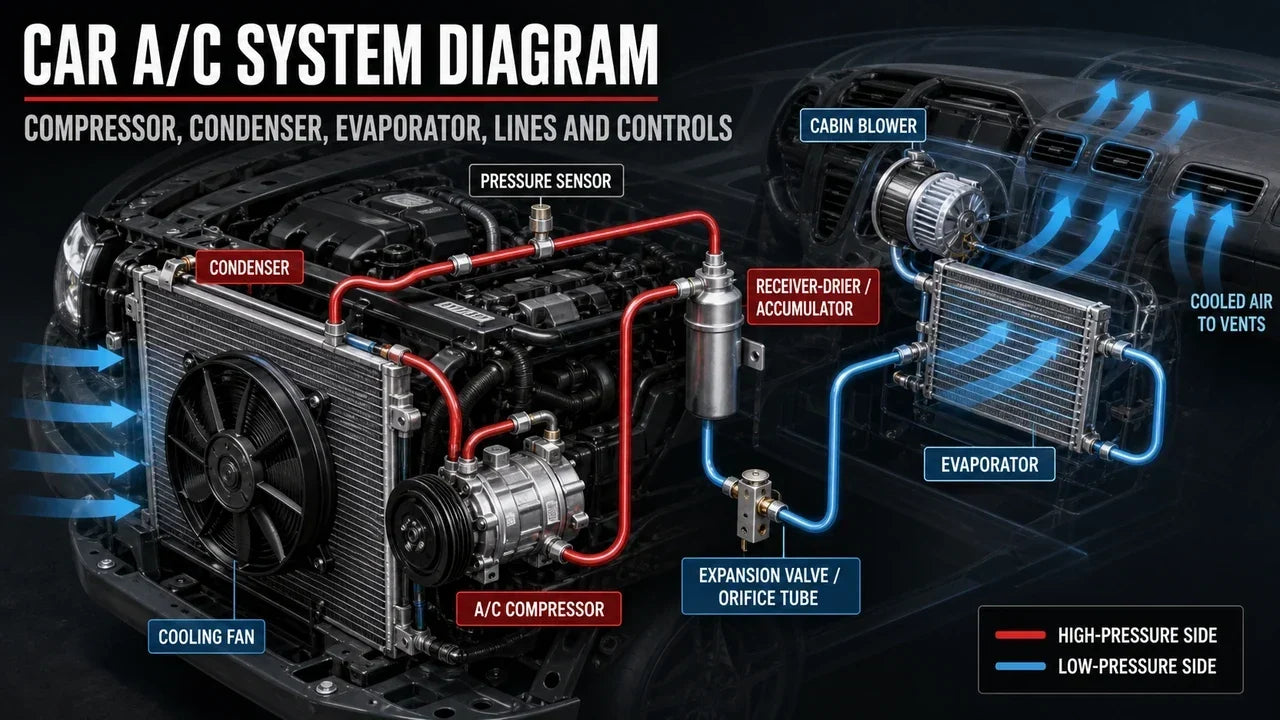

A car A/C system diagram shows how refrigerant moves through the compressor, condenser, receiver-drier or accumulator, expansion valve or orifice tube, evaporator, and connecting lines. It also shows how airflow, pressure sensors, cooling fans, electrical controls, and HVAC doors affect cooling performance.
The refrigerant circuit is divided into a high-pressure side and a low-pressure side. The compressor creates the pressure difference, the condenser releases heat, the expansion device reduces pressure, and the evaporator absorbs heat from cabin air.
A diagram is useful during diagnosis because warm vent air, weak cooling at idle, rapid clutch cycling, evaporator icing, abnormal pressure, and compressor noise can originate from different parts of the same system. Component replacement should follow pressure, temperature, airflow, electrical, and leak-test evidence rather than symptom matching alone.
For the compressor’s basic role, review what an A/C compressor is. For the complete compression process, see how a car A/C compressor works.
Car A/C System Layout at a Glance
The automotive air-conditioning system can be understood as four connected functions:
- Compression: The compressor raises refrigerant pressure and temperature.
- Heat rejection: The condenser transfers refrigerant heat to outside air.
- Pressure reduction: The expansion valve or orifice tube meters refrigerant and lowers pressure.
- Heat absorption: The evaporator removes heat from cabin air.
The simplified refrigerant path is:
Evaporator → Compressor → Condenser → Receiver-Drier or Accumulator → Expansion Device → Evaporator
The exact arrangement varies by system design. Expansion-valve systems commonly use a receiver-drier on the high-pressure side, while fixed-orifice systems commonly use an accumulator on the low-pressure side.
Automotive A/C Components and Their Diagnostic Roles
| Component | Primary System Role | Common Failure Pattern | Key Diagnostic Evidence |
|---|---|---|---|
| A/C compressor | Compresses and circulates refrigerant | Weak pressure separation, noise, seizure, leakage, or control failure | High- and low-side pressure, command signal, clutch or control-valve operation |
| Condenser | Releases refrigerant heat to outside air | High pressure, weak cooling at idle, restriction, damaged fins, or leakage | Fan operation, airflow, temperature drop, high-side pressure |
| Cooling fan | Moves air through the condenser at low vehicle speed | Cooling weakens in traffic or at idle | Fan command, fan speed, direction, current draw, airflow |
| Receiver-drier | Stores high-pressure liquid refrigerant and removes moisture | Restriction, moisture contamination, or desiccant breakdown | Temperature difference across the component, contamination evidence |
| Accumulator | Separates liquid from vapor and protects the compressor | Restriction, moisture saturation, poor oil return | Line temperature, pressure behavior, oil condition |
| Expansion valve | Meters refrigerant into the evaporator | Restriction, overfeeding, icing, or unstable cooling | Pressure relationship, inlet and outlet temperature, evaporator behavior |
| Orifice tube | Creates a fixed refrigerant restriction | Debris blockage, icing, or abnormal pressure | Screen contamination, line-temperature change, pressure pattern |
| Evaporator | Absorbs heat from cabin air | Leakage, icing, odor, restricted airflow, or poor heat transfer | Vent temperature, airflow, drain evidence, evaporator temperature |
| A/C lines and hoses | Carry refrigerant and oil between components | Leaks, kinks, damaged crimps, or internal restriction | Oil residue, UV dye, temperature change, fitting condition |
| Pressure sensors and switches | Protect and control compressor operation | No engagement, rapid cycling, incorrect command, or fault codes | Scan data, voltage signal, wiring continuity, pressure comparison |
| HVAC doors and actuators | Control airflow direction and outlet temperature | Warm air despite normal refrigerant operation | Actuator command, door movement, left-right vent-temperature comparison |
The High-Pressure Side of the A/C Diagram
The high-pressure side begins at the compressor discharge port and continues through the condenser, receiver-drier where equipped, and the inlet side of the expansion device.
Compressor discharge
Refrigerant leaves the compressor as high-pressure, high-temperature vapor. Discharge pressure depends on refrigerant charge, ambient temperature, condenser airflow, compressor output, and system restriction.
Condenser heat rejection
The condenser transfers refrigerant heat to outside air. As heat is removed, refrigerant changes from vapor toward a high-pressure liquid state.
Condenser performance depends on:
- Correct cooling-fan operation
- Unrestricted airflow through the fins
- Correct refrigerant quantity
- Internal condenser flow
- Ambient temperature
- Engine-bay heat load
Receiver-drier function
In many expansion-valve systems, the receiver-drier stores liquid refrigerant, filters debris, and absorbs moisture. A restricted receiver-drier may create an abnormal temperature drop and reduce refrigerant flow.
High-pressure side warning signs
- High-side pressure rises rapidly after compressor engagement
- Cooling weakens at idle
- Condenser fan does not operate
- Discharge line becomes excessively hot
- Temperature changes sharply across a restricted component
- Compressor load increases and belt noise appears
The Low-Pressure Side of the A/C Diagram
The low-pressure side begins after refrigerant passes through the expansion valve or orifice tube. It includes the evaporator, accumulator where equipped, suction line, and compressor inlet.
Pressure reduction at the expansion device
The expansion device meters refrigerant and creates the pressure drop required for evaporator heat absorption.
Evaporator heat absorption
Cabin air passes across the evaporator fins. Heat transfers from the air into the refrigerant, and the blower moves the cooled air through the HVAC ducts.
Accumulator protection
Fixed-orifice systems commonly use an accumulator after the evaporator. The accumulator helps prevent liquid refrigerant from reaching the compressor and provides an area for oil return.
Low-pressure side warning signs
- Low-side pressure remains unusually high
- Low-side pressure pulls excessively low
- Suction line does not cool as expected
- Evaporator or suction line develops abnormal frost
- Vent temperature remains high despite compressor operation
- Airflow decreases as the evaporator ices
How Refrigerant Changes State Through the System
| Location | Typical Refrigerant State | Pressure Zone | Energy Transfer |
|---|---|---|---|
| Evaporator outlet | Low-pressure vapor | Low side | Cabin heat has been absorbed |
| Compressor discharge | High-pressure, high-temperature vapor | High side | Compression adds heat and pressure |
| Condenser outlet | High-pressure liquid | High side | Heat has been released outside |
| Expansion-device outlet | Low-pressure refrigerant mixture | Low side | Pressure drops before heat absorption |
| Evaporator core | Low-pressure refrigerant changing toward vapor | Low side | Cabin heat enters the refrigerant |
Where Airflow Fits Into the A/C System Diagram
The refrigerant circuit cannot be diagnosed separately from airflow. Two airflow paths are essential:
Outside airflow through the condenser
Outside air must pass through the condenser so refrigerant heat can be released. At road speed, vehicle movement supplies airflow. At idle, cooling fans provide most of the required airflow.
Cabin airflow through the evaporator
The blower must move air through the cabin filter and evaporator. A restricted cabin filter, weak blower, iced evaporator, or closed HVAC door can reduce outlet airflow even when refrigerant pressures appear reasonable.
Airflow faults can imitate refrigerant faults
Weak condenser airflow can create high pressure and poor cooling. Weak evaporator airflow can produce icing, reduced vent flow, or incorrect temperature readings. Airflow should therefore be checked before interpreting pressure as compressor failure.
Electrical Controls Shown Around the A/C Diagram
The mechanical refrigerant circuit depends on electronic commands and protection logic. Modern systems may include:
- A/C request from the climate-control panel
- Low- and high-pressure sensors
- Evaporator temperature sensor
- Ambient temperature sensor
- Engine coolant temperature input
- Compressor clutch relay
- Variable-displacement control valve
- Cooling-fan control module
- Engine or powertrain control module
- High-voltage compressor controller
The control system may disable compressor operation when pressure is too low, pressure is too high, engine temperature is excessive, wide-open throttle is detected, or a high-voltage fault is present.
For clutch and command diagnosis, review how the car A/C clutch works and why it may not engage.
How to Read a Car A/C Diagram During Diagnosis
Start with the observed operating condition
Identify whether the condition involves warm air, weak airflow, intermittent cooling, noise, frost, refrigerant loss, abnormal cycling, or cooling that changes with vehicle speed.
Locate the relevant system zone
Separate the system into:
- Compression
- Heat rejection
- Pressure reduction
- Heat absorption
- Electrical control
- Cabin airflow
Compare pressure and temperature together
Pressure readings should be compared with refrigerant-line temperatures, ambient temperature, engine speed, fan operation, and vent temperature. One gauge value is not sufficient for component diagnosis.
Confirm refrigerant quantity
Static or operating pressure does not confirm correct refrigerant weight. Recovering and weighing the refrigerant may be required when charge quantity is uncertain.
Verify mechanical and electrical command
Confirm that the compressor is being commanded correctly and that the clutch, control valve, or electric drive is responding.
Diagnostic Scenario Map
Scenario 1: Cooling is strong at road speed but weak at idle
This pattern often points to insufficient condenser airflow. Vehicle movement forces air through the condenser at road speed, while idle operation depends heavily on cooling-fan performance.
Relevant diagram area:
Compressor discharge → Condenser → Cooling fan
Inspection priorities:
- Cooling-fan command and speed
- Fan direction
- Condenser fin blockage
- High-side pressure at idle
- Refrigerant charge
- Air gap between condenser and radiator
Scenario 2: Cooling returns after recharge but becomes warm again
Temporary cooling improvement followed by recurring warm air commonly indicates refrigerant loss.
Relevant diagram area:
Entire refrigerant circuit
Leak inspection should include:
- Compressor front seal
- Compressor ports and O-rings
- Hose crimps
- Condenser tubes and end tanks
- Service ports
- Receiver-drier or accumulator connections
- Evaporator where applicable
Compressor replacement without locating the leak may leave the original failure condition unchanged.
Scenario 3: The clutch engages, but vent air remains warm
Clutch engagement confirms that the compressor shaft may be driven, but it does not confirm sufficient refrigerant compression or correct system heat transfer.
Relevant diagram areas:
- Compressor pressure output
- Refrigerant charge
- Condenser airflow
- Expansion-device operation
- Evaporator airflow
- Blend-door position
Scenario 4: High-side pressure rises excessively
Excessive high-side pressure may result from poor condenser airflow, overcharge, internal restriction, or non-condensable gas in the system.
Relevant diagram area:
Compressor discharge → Condenser → Expansion-device inlet
Inspection priorities:
- Cooling-fan operation
- Condenser blockage
- Specified refrigerant weight
- Evacuation quality
- Receiver-drier restriction
- Expansion-device inlet restriction
Scenario 5: Low-side pressure pulls very low and frost develops
Very low suction pressure and frost may indicate restricted refrigerant flow, low charge, insufficient evaporator airflow, or an expansion-device problem.
Relevant diagram area:
Expansion device → Evaporator → Suction line
Inspection priorities:
- Expansion valve or orifice tube
- Evaporator airflow
- Cabin filter condition
- Evaporator icing
- Refrigerant quantity
- Temperature difference across the restriction
Scenario 6: Airflow becomes weak after several minutes of cooling
Airflow that begins normally and then decreases may indicate evaporator icing rather than compressor failure.
Relevant diagram areas:
- Expansion device
- Evaporator core
- Evaporator temperature sensor
- Cabin-air filter
- Blower and HVAC doors
Scenario 7: One side of the cabin is warm and the other side is cold
Uneven left-right vent temperature often points to HVAC door control, actuator position, or refrigerant distribution issues rather than immediate compressor failure.
Relevant diagram area:
Evaporator and HVAC air-distribution case
Inspection priorities:
- Dual-zone blend-door actuators
- Temperature-door calibration
- Evaporator temperature distribution
- Refrigerant charge
- Scan-tool HVAC data
Scenario 8: The compressor was replaced, but cooling remains weak
Poor cooling after compressor replacement may result from incorrect charge, incorrect oil quantity, remaining contamination, condenser restriction, weak fan airflow, expansion-device restriction, air or moisture in the system, or an incorrect compressor variant.
Relevant diagram area:
Complete refrigerant, airflow, and control circuit
Inspection priorities:
- Refrigerant weight
- Oil type and amount
- Vacuum and evacuation quality
- Condenser condition
- Drier or accumulator replacement
- Expansion-device condition
- Control-valve command
- Replacement compressor fitment
Scenario 9: Compressor noise appears only when A/C is active
Noise beginning after compressor engagement may involve internal compressor wear, clutch drag, excessive system pressure, belt tensioner load, or pulley alignment.
Relevant diagram areas:
- Compressor
- Accessory belt drive
- Condenser airflow
- High-pressure circuit
Scenario 10: Metal debris is found in the orifice tube or refrigerant oil
Metal contamination indicates internal mechanical damage and requires system-level evaluation before a replacement compressor is installed.
Relevant diagram area:
Complete refrigerant circuit downstream of the compressor
Inspection may be required for:
- Condenser
- Receiver-drier or accumulator
- Expansion valve or orifice tube
- Refrigerant lines
- Oil condition
- Flushable and non-flushable components
For internal compressor evidence, see inside an A/C compressor: parts, internals, and failure clues.
Pressure Patterns and the System Areas They Suggest
| General Pressure Pattern | Possible System Area | Additional Evidence Required |
|---|---|---|
| Low side high, high side low | Weak compressor output or low displacement command | Clutch operation, control-valve command, refrigerant charge, compressor design |
| Both sides lower than expected | Low charge or restricted refrigerant supply | Recovered refrigerant weight, leak test, line temperature |
| High side excessively high | Condenser airflow, overcharge, restriction, or contamination | Fan operation, refrigerant weight, condenser temperature, evacuation history |
| Low side excessively low | Expansion restriction, low flow, or evaporator airflow fault | Evaporator temperature, icing, line temperature, cabin airflow |
| Pressures barely change when compressor operates | Compressor not pumping or displacement control fault | Clutch drive, shaft movement, control-valve signal, refrigerant quantity |
Pressure patterns are diagnostic clues rather than final conclusions. Ambient temperature, humidity, refrigerant type, engine speed, fan operation, blower speed, and system design must be considered.
Compressor vs Condenser vs Evaporator
| Component | What It Does | Common Diagnostic Clue |
|---|---|---|
| Compressor | Creates refrigerant pressure and circulation | Weak pressure separation, noise, seizure, leakage, or control failure |
| Condenser | Releases refrigerant heat outside the vehicle | High pressure, weak idle cooling, physical blockage, or fan-related problems |
| Evaporator | Absorbs heat from cabin air | Leakage, icing, odor, low airflow, or uneven vent temperature |
For a focused warm-air comparison, review A/C compressor vs condenser diagnosis.
Evidence Required Before Replacing a Major A/C Component
A component should not be condemned from one symptom or one pressure reading. A professional evaluation should include:
- Exact refrigerant quantity
- Leak-test results
- High-side and low-side pressure under controlled conditions
- Refrigerant-line temperature
- Cooling-fan operation
- Condenser and evaporator airflow
- Compressor clutch or control-valve command
- Diagnostic trouble codes and scan data
- Oil condition and contamination evidence
- HVAC door and actuator operation
Professional A/C Diagnostic Workflow
1. Verify the operating condition
Confirm whether the system has warm air, weak cooling, low airflow, intermittent cooling, noise, frost, refrigerant loss, or abnormal cycling.
2. Identify the system design
Determine whether the system uses an expansion valve or fixed orifice, receiver-drier or accumulator, clutch compressor, variable-displacement compressor, or high-voltage electric compressor.
3. Inspect refrigerant lines and components
Check for oil residue, damaged hoses, loose fittings, condenser damage, compressor leakage, and previous repair evidence.
4. Confirm electrical command
Review A/C request, compressor command, pressure-sensor data, fan command, fuses, relays, wiring, and diagnostic trouble codes.
5. Verify airflow
Check condenser fan operation, condenser fin condition, cabin filter, blower output, evaporator airflow, and HVAC door position.
6. Recover and verify refrigerant quantity
Recovering and weighing refrigerant may be necessary because pressure alone does not confirm correct charge.
7. Measure operating pressure and temperature
Evaluate high-side pressure, low-side pressure, vent temperature, suction-line temperature, discharge-line temperature, and ambient conditions together.
8. Locate the faulty system zone
Use the diagram to determine whether the evidence points toward compression, heat rejection, pressure reduction, heat absorption, airflow, leakage, or electrical control.
9. Inspect for contamination
Metal debris, dark oil, desiccant material, or blocked screens may require a larger repair scope.
10. Confirm replacement fitment and service procedure
When compressor replacement is required, confirm the OE number, compressor type, clutch or control design, pulley, electrical connector, refrigerant ports, oil, and mounting points.
For replacement selection, review the A/C compressor fitment guide.
Service and Safety Notes
- Refrigerant should be recovered with approved service equipment.
- System pressure can remain high after compressor shutdown.
- Refrigerant contact can cause frostbite and eye injury.
- Rotating belts, pulleys, and cooling fans require safe inspection procedures.
- Hybrid and electric compressors may operate from high voltage.
- Electric compressors require the specified electrically insulating oil.
- Refrigerant type and service fittings must be confirmed before connection.
- Charging should follow the specified refrigerant weight rather than gauge pressure alone.
FAQs
Q1: What are the main parts in a car A/C system diagram?
A1: The main parts are the compressor, condenser, receiver-drier or accumulator, expansion valve or orifice tube, evaporator, refrigerant lines, cooling fans, sensors, and HVAC controls.
Q2: Which side of the A/C system is high pressure?
A2: The high-pressure side begins at the compressor discharge and continues through the condenser to the inlet of the expansion device.
Q3: Which side of the A/C system is low pressure?
A3: The low-pressure side begins after the expansion device and includes the evaporator, accumulator where equipped, suction line, and compressor inlet.
Q4: What does the compressor do in the diagram?
A4: It draws in low-pressure refrigerant vapor, compresses it, and sends high-pressure vapor toward the condenser.
Q5: What does the condenser do?
A5: The condenser releases refrigerant heat to outside air and changes refrigerant toward a high-pressure liquid state.
Q6: What does the evaporator do?
A6: The evaporator absorbs heat from cabin air as low-pressure refrigerant passes through it.
Q7: What is the difference between a receiver-drier and an accumulator?
A7: A receiver-drier is normally located on the high-pressure liquid side of an expansion-valve system. An accumulator is normally located on the low-pressure side of a fixed-orifice system.
Q8: Why is the A/C cold while driving but warm at idle?
A8: Insufficient condenser airflow at idle is a common cause. Cooling-fan operation, condenser blockage, refrigerant charge, and high-side pressure should be checked.
Q9: Why does the A/C become warm again after recharge?
A9: Recurring warm air after recharge commonly indicates an unrepaired refrigerant leak.
Q10: Can a clogged condenser cause compressor problems?
A10: Yes. A restricted condenser can increase high-side pressure and compressor load.
Q11: Can an expansion valve cause warm air?
A11: Yes. A restricted, stuck, or incorrectly controlled expansion valve can reduce refrigerant flow and evaporator heat absorption.
Q12: Why does the evaporator freeze?
A12: Possible causes include insufficient airflow, abnormal refrigerant flow, sensor faults, expansion-device problems, or control issues.
Q13: Can the compressor engage while another part causes poor cooling?
A13: Yes. Compressor engagement does not confirm correct refrigerant charge, condenser airflow, expansion-device operation, evaporator airflow, or HVAC door position.
Q14: What does low-side pressure that remains high indicate?
A14: It may indicate weak compressor output, low displacement command, excessive heat load, or another system condition. Additional tests are required.
Q15: What does excessively high high-side pressure indicate?
A15: Possible causes include poor condenser airflow, overcharge, restriction, or non-condensable gas in the system.
Q16: Can pressure readings confirm the correct refrigerant charge?
A16: No. Recovering and weighing the refrigerant is the more reliable method when charge quantity is uncertain.
Q17: Why is one vent warm while another vent is cold?
A17: Possible causes include blend-door position, actuator faults, uneven evaporator temperature, or low refrigerant charge.
Q18: What should be checked before replacing the compressor?
A18: Check refrigerant quantity, leaks, pressure behavior, compressor command, condenser airflow, expansion-device operation, oil condition, contamination, and complete replacement fitment.
Final Technical Summary
A car A/C system diagram should be read as a connected refrigerant, airflow, heat-transfer, and electrical-control system. The compressor creates pressure and circulation, the condenser releases heat, the expansion device reduces pressure, and the evaporator absorbs cabin heat.
Warm air, pressure imbalance, weak idle cooling, evaporator icing, clutch cycling, or compressor noise should be traced to the relevant system zone before parts are replaced. Reliable diagnosis combines refrigerant weight, pressure, temperature, airflow, electrical command, leak evidence, and contamination checks.
