Inside an A/C Compressor: Technical Overview
An automotive A/C compressor contains precision mechanical parts that draw in low-pressure refrigerant vapor, reduce its internal volume, and discharge it as high-pressure vapor. The exact internal layout depends on whether the compressor uses pistons, a swash plate, a wobble plate, scroll elements, rotary vanes, fixed displacement, or variable displacement.

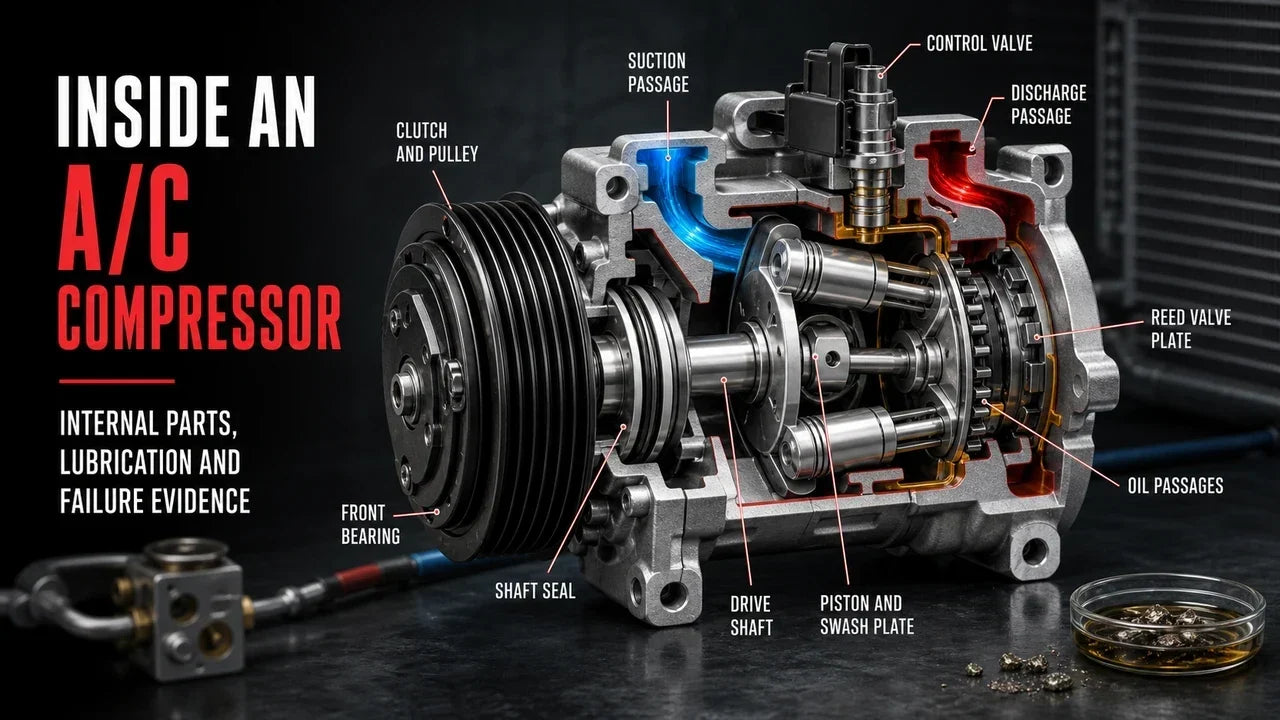

Most compressor assemblies include a housing, drive shaft, bearings, internal pumping elements, suction and discharge valves, seals, oil passages, refrigerant ports, and a clutch, pulley, control valve, or electric motor depending on the design.
Internal compressor failure rarely remains isolated to the compressor itself. Metal particles, degraded oil, seal material, moisture, and internal debris can move through the condenser, refrigerant lines, receiver-drier or accumulator, expansion valve, or orifice tube. Repair scope should therefore be based on contamination evidence rather than compressor replacement alone.
For the compressor’s system role, review what an A/C compressor does in a car. For the complete refrigerant path, see the car A/C system diagram covering the compressor, condenser, evaporator, and lines.
Internal A/C Compressor Architecture
The compressor can be divided into five functional zones:
- Drive zone: Pulley, clutch, shaft, bearing, or electric motor transfers rotational force.
- Compression zone: Pistons, scrolls, vanes, or other pumping elements raise refrigerant pressure.
- Flow-control zone: Suction valves, discharge valves, reed plates, and control valves regulate refrigerant movement.
- Sealing zone: Shaft seals, case seals, port seals, and O-rings contain refrigerant and oil.
- Lubrication zone: Oil passages and refrigerant flow distribute lubricant across moving surfaces.
Why compressor design matters during diagnosis
A clutch-equipped fixed-displacement compressor may fail differently from a continuously driven variable-displacement compressor. A pulley that rotates normally does not confirm that internal pumping elements are producing adequate displacement. Likewise, a non-engaging clutch does not prove that the internal compressor mechanism is damaged.
For clutch operation and engagement faults, review how the car A/C clutch works and why it may not engage.
Internal Parts and the Evidence They Leave Behind
| Compressor Part | Primary Function | Typical Failure Mode | Observable Evidence |
|---|---|---|---|
| Housing | Contains internal parts and refrigerant passages | Crack, distortion, corrosion, or case-joint leakage | Oil trace, refrigerant leak, damaged mounting point, misalignment |
| Drive shaft | Transfers pulley, clutch, or motor rotation into the pumping mechanism | Wear, bending, seizure, or excessive end play | Drag, noise, clutch overload, shaft resistance |
| Front shaft seal | Contains refrigerant and oil around the rotating shaft | Seal wear, heat damage, or surface scoring | Oil residue behind the clutch or around the shaft area |
| Bearings | Support shaft and pulley rotation | Pitting, lubrication loss, overheating, or mechanical wear | Grinding, growling, wobble, rough rotation |
| Pistons and swash plate | Convert shaft rotation into reciprocating compression | Scoring, piston wear, plate damage, or seizure | Weak pressure separation, metal debris, abnormal noise |
| Scroll elements | Compress refrigerant through orbiting scroll motion | Surface wear, fracture, or internal leakage | Low output, debris, vibration, abnormal operating sound |
| Rotary vanes | Trap and compress refrigerant inside rotating chambers | Vane wear, scoring, sticking, or housing damage | Reduced displacement, pressure instability, contamination |
| Reed plate or internal valves | Control suction and discharge flow direction | Cracking, carbon buildup, warping, or leakage | Poor compression, unusual pressure behavior, reduced output |
| Variable-displacement control valve | Adjusts compressor pumping capacity | Sticking, electrical failure, contamination, or command loss | Pulley rotates but pressure change remains weak or unstable |
| Oil passages | Distribute lubricant to moving surfaces | Restriction, poor oil return, incorrect oil quantity | Scoring, heat damage, rapid internal wear |
| Clutch and pulley | Connect engine belt drive to the compressor shaft | Slip, bearing failure, coil failure, excessive air gap | No engagement, squeal, heat discoloration, pulley noise |
Three Main Internal Failure Categories
1. Friction and lubrication failure
Internal compressor surfaces depend on correct oil type, oil quantity, refrigerant flow, and system cleanliness. Lubrication failure may cause scoring, heat discoloration, bearing damage, piston wear, scroll damage, or seizure.
Common contributing conditions include:
- Low refrigerant charge caused by an active leak
- Incorrect compressor oil
- Incorrect oil quantity
- Poor oil balancing during replacement
- Restricted oil return
- Moisture contamination
- Debris blocking internal oil passages
2. Mechanical breakage
Mechanical breakage may affect pistons, scroll elements, vanes, reed plates, shafts, bearings, or internal retainers. Severe failure can release metal into the refrigerant circuit.
Possible evidence includes:
- Metal particles in recovered oil
- Debris in an orifice-tube screen
- Grinding or knocking during operation
- Compressor shaft seizure
- Minimal pressure change after confirmed engagement
- Abnormally dark or burnt oil
3. Internal flow or control failure
A compressor may rotate without producing the expected pressure difference if internal valves leak, the pumping surfaces are worn, or a variable-displacement control valve does not respond correctly.
This failure category may produce:
- Low side remaining higher than expected
- High side remaining lower than expected
- Weak cooling despite normal pulley rotation
- Cooling that changes unpredictably with engine speed
- Pressure behavior that does not follow control-valve command
Failure Clues by Evidence Type
Sound evidence
Sound should be evaluated by operating state rather than by volume alone.
| Sound Pattern | Possible Source | Additional Checks |
|---|---|---|
| Noise only after clutch engagement | Compressor internals, clutch drag, high compressor load | Pressure behavior, belt movement, tensioner load, compressor output |
| Noise with A/C switched off | Pulley bearing, idler, tensioner, alternator, accessory drive | Component isolation, bearing condition, pulley alignment |
| Short metallic knock during engagement | Clutch air gap, clutch plate, shaft play, mounting movement | Clutch face, mounting bolts, shaft movement |
| Continuous grinding during operation | Internal wear, bearing damage, mechanical contamination | Oil inspection, shaft resistance, pressure separation |
| Belt squeal during engagement | Compressor drag, belt slip, weak tensioner, pulley misalignment | Belt condition, tensioner travel, clutch and shaft load |
Oil evidence
Oil condition can reveal internal wear, contamination, leakage, or incorrect service history.
- Clear or lightly colored oil: May be normal depending on oil type and system condition.
- Dark oil: May indicate heat damage, oxidation, moisture, or internal wear.
- Metallic oil: Indicates mechanical wear or internal component damage.
- Oil around the front seal: May indicate shaft-seal leakage.
- Oil at ports or hose crimps: May indicate an external refrigerant leak rather than internal failure.
Pressure evidence
Internal failure may affect high-side and low-side pressure, but pressure must be interpreted with ambient temperature, refrigerant charge, condenser airflow, compressor command, and system design.
- Low side high and high side low may indicate weak compression.
- Pressures that barely separate may indicate poor displacement.
- Excessive high-side pressure may originate from condenser airflow or restriction rather than compressor internals.
- Very low suction pressure may indicate a metering-device restriction rather than compressor failure.
For system-level pressure interpretation, review the automotive A/C system diagram and component guide.
Leak evidence
Oil residue around the compressor should be traced to the highest wet point. Fluid from an engine seal, valve cover, power-steering component, or nearby fitting may collect on the compressor body.
Leak inspection should include:
- Front shaft seal
- Case joints
- Pressure-relief area
- Suction and discharge ports
- Hose crimps
- Service ports
- Nearby engine-fluid sources
How Internal Failure Spreads Through the A/C System
Compressor discharge sends refrigerant and oil directly into the high-pressure side. When internal parts break down, contamination can travel downstream through the entire refrigerant circuit.
Contamination path
Compressor → Discharge Line → Condenser → Receiver-Drier or Accumulator → Expansion Device → Evaporator → Suction Line → Replacement Compressor
Why the condenser is critical
Modern parallel-flow condensers contain narrow internal passages that may trap metal debris and degraded oil. Complete debris removal may not be practical when severe contamination is present.
A contaminated condenser can:
- Restrict refrigerant flow
- Reduce heat rejection
- Increase high-side pressure
- Release trapped debris into the replacement compressor
- Cause repeat compressor failure
Why the expansion device matters
An orifice-tube screen or expansion-valve passage may collect debris from internal compressor wear. A restricted metering device can produce abnormal pressure, icing, weak cooling, or compressor load.
Why the drier or accumulator matters
The receiver-drier or accumulator controls moisture and captures some contamination. Once exposed to atmosphere or contaminated oil, its ability to protect the system may be reduced.
Compressor Failure Case Files
Case 1: Clutch engages, but high-side and low-side pressures remain close
Confirmed clutch engagement without useful pressure separation may indicate internal leakage, worn pumping elements, damaged valves, or a variable-displacement control problem.
Verification should include:
- Correct refrigerant charge by weight
- Confirmed shaft drive
- Control-valve command
- Compressor design identification
- Ambient and test conditions
- Condenser airflow
Case 2: Grinding begins only when A/C is active
Grinding after engagement may originate from compressor internals, clutch drag, pulley misalignment, or excessive system load.
Inspection priorities include:
- Belt and tensioner movement
- High-side pressure
- Clutch-face condition
- Compressor shaft resistance
- Oil condition
- Mounting-bracket stability
Case 3: Metal particles are found in the orifice tube
Metal on the orifice screen strongly suggests upstream mechanical wear. The compressor, condenser, lines, accumulator, and oil condition should be evaluated before replacement.
A new compressor should not be installed into an unverified contaminated circuit.
Case 4: Oil appears behind the clutch plate
Oil behind the clutch area may indicate front shaft-seal leakage. The source should be confirmed because oil from above may migrate onto the clutch and compressor face.
Relevant checks include:
- UV dye evidence
- Leak detector response
- Compressor shaft area
- Nearby engine-oil sources
- Refrigerant loss history
Case 5: Compressor seized after refrigerant loss
Extended operation with low refrigerant may reduce oil circulation and internal cooling. The resulting wear can progress from noise and drag to complete seizure.
The repair scope should include leak identification, contamination inspection, oil balancing, and evaluation of downstream components.
Case 6: Replacement compressor fails shortly after installation
Early repeat failure commonly points to a system condition that remained unresolved.
Possible causes include:
- Metal debris left in the condenser or lines
- Incorrect compressor oil
- Incorrect oil quantity
- Unrepaired refrigerant leak
- Restricted expansion device
- Incorrect refrigerant charge
- Air or moisture contamination
- Poor condenser airflow
- Incorrect compressor variant
Case 7: Compressor rotates but cooling varies unpredictably
Unstable cooling on a variable-displacement compressor may result from a sticking control valve, electrical command issue, pressure-sensor error, contamination, or internal displacement wear.
Diagnosis may require:
- Scan-tool command data
- Control-valve duty cycle
- Current measurement
- Pressure response
- Line-temperature comparison
Case 8: Dark oil is present without visible metal
Dark oil may indicate overheating, oxidation, moisture, incorrect oil, or long-term wear. Absence of visible metal does not confirm a clean system.
Service decisions should consider oil odor, texture, recovered refrigerant condition, system history, and manufacturer procedures.
When the Compressor Is Not the Root Cause
Several external conditions can imitate internal compressor failure.
| Observed Condition | Possible External Cause | Required Verification |
|---|---|---|
| Weak cooling at idle | Cooling-fan failure or condenser airflow restriction | Fan command, airflow, high-side pressure |
| No clutch engagement | Low charge, relay, fuse, wiring, pressure-sensor input | Electrical command and pressure data |
| High high-side pressure | Overcharge, blocked condenser, fan failure, non-condensable gas | Refrigerant weight, fan operation, evacuation history |
| Very low low-side pressure | Expansion-device restriction or evaporator airflow problem | Line temperature, icing, airflow, metering device |
| Warm vent air with normal pressure | Blend-door or HVAC actuator fault | Door command, actuator movement, vent-temperature comparison |
| Belt-area noise | Idler, tensioner, alternator, pulley bearing, belt alignment | Accessory-drive inspection |
For compressor and condenser separation, review A/C compressor vs condenser warm-air diagnosis.
Contamination Severity and Repair Scope
Low contamination evidence
Low contamination may include clear oil, no visible debris, no abnormal screen material, and no internal compressor noise. Repair scope still depends on the confirmed failure mode and service procedure.
Moderate contamination evidence
Moderate contamination may include dark oil, fine metallic residue, seal material, or restricted screens without complete compressor seizure.
Possible service scope:
- Compressor replacement
- Receiver-drier or accumulator replacement
- Expansion valve or orifice tube replacement
- Approved line flushing
- Condenser evaluation
- Correct oil balancing
Severe contamination evidence
Severe contamination may include metal fragments, burnt oil, seized compressor parts, heavy screen blockage, or widespread debris.
Possible service scope:
- Compressor replacement
- Condenser replacement where debris cannot be removed reliably
- Drier or accumulator replacement
- Expansion-device replacement
- Flushing or replacing affected lines
- Evaporator evaluation according to system design
- Complete oil-balance correction
Repair scope should follow compressor manufacturer requirements and vehicle-specific service information.
Evidence Checklist Before Installing a Replacement Compressor
| Inspection Area | What to Verify | Why It Matters |
|---|---|---|
| Old compressor oil | Color, odor, metallic particles, moisture, debris | Helps determine contamination severity |
| Condenser | Restriction, debris, physical damage, airflow | Trapped material may damage the replacement compressor |
| Expansion device | Screen blockage, debris, sticking, icing evidence | Restriction can create repeat pressure and cooling problems |
| Drier or accumulator | Contamination, moisture exposure, service requirement | Protects the system from moisture and debris |
| Refrigerant lines | Debris, kinks, damaged crimps, flushability | Contamination can remain in lines after replacement |
| Oil specification | Correct type and total system quantity | Incorrect lubrication can cause immediate damage |
| Refrigerant charge | Specified refrigerant type and weight | Charge affects pressure, oil circulation, and cooling |
| Electrical command | Clutch or control-valve signal | Prevents incorrect diagnosis of a control fault |
| Replacement fitment | OE number, pulley, connector, ports, mounting layout | Prevents installation of an incorrect compressor variant |
Replacement Compressor Fitment After Internal Failure
Internal failure does not remove the need for complete fitment verification. Compressors that appear similar may differ in displacement, control strategy, pulley offset, connector, port orientation, and mounting layout.
Confirm:
- Vehicle year, make, model, and engine
- OE or interchange number
- Fixed- or variable-displacement design
- Clutch, clutchless, or electric operation
- Pulley diameter and groove count
- Pulley offset
- Electrical connector shape and position
- Suction and discharge port orientation
- Mounting-ear position
- Refrigerant type
- Compressor oil specification
For a complete physical comparison process, review the replacement A/C compressor fitment guide.
Workshop Validation Sequence
- Confirm the compressor failure mode.
- Recover the refrigerant using approved equipment.
- Inspect recovered oil and refrigerant condition.
- Inspect the expansion valve or orifice tube for debris.
- Evaluate the condenser for contamination and restriction.
- Determine which lines can be flushed or must be replaced.
- Replace the drier or accumulator when required.
- Confirm the correct replacement compressor and oil specification.
- Balance total system oil quantity.
- Evacuate the system and verify vacuum stability.
- Charge refrigerant by the specified weight.
- Verify clutch or control-valve command.
- Check high-side and low-side pressure.
- Confirm condenser-fan operation and vent temperature.
- Inspect for leaks, noise, and belt-drive instability.
Technical Boundaries and Safety Notes
- Opening an A/C compressor is generally performed for failure analysis rather than field repair.
- Refrigerant must be recovered before disconnecting system components.
- System pressure can remain high after compressor shutdown.
- Refrigerant and oil type must match the vehicle specification.
- Hybrid and electric compressors may operate at high voltage.
- Electric compressors require the specified electrically insulating oil.
- Parallel-flow condensers may not be reliably flushable after severe contamination.
- Manufacturer service procedures should determine final replacement scope.
FAQs
Q1: What is inside an A/C compressor?
A1: An A/C compressor typically contains a housing, shaft, bearings, pumping elements, valves, seals, oil passages, refrigerant ports, and a clutch, pulley, control valve, or electric motor depending on the design.
Q2: What parts compress the refrigerant?
A2: Refrigerant may be compressed by pistons, scroll elements, rotary vanes, or another internal pumping mechanism.
Q3: What does the compressor shaft do?
A3: The shaft transfers rotational force from the pulley, clutch, or electric motor into the internal pumping mechanism.
Q4: What causes internal compressor wear?
A4: Common causes include low refrigerant, poor oil circulation, incorrect oil, contamination, restrictions, overheating, and long-term mechanical wear.
Q5: What does metal in A/C compressor oil mean?
A5: Metallic particles indicate internal mechanical wear or component damage and require inspection of the entire refrigerant circuit.
Q6: Can a compressor rotate but fail to build pressure?
A6: Yes. Worn pumping elements, leaking valves, internal damage, or a failed variable-displacement control valve can reduce output while the shaft continues to rotate.
Q7: What causes oil around the front of the compressor?
A7: Oil behind the clutch area may indicate front shaft-seal leakage, although fluid from another component must also be ruled out.
Q8: Does compressor noise always mean internal failure?
A8: No. The clutch, pulley bearing, belt, tensioner, idler, bracket, or abnormal system pressure can produce similar noise.
Q9: Why does compressor failure contaminate the condenser?
A9: Refrigerant and oil carry debris from the compressor discharge into the condenser, where narrow internal passages may trap it.
Q10: Can a contaminated condenser damage a new compressor?
A10: Yes. Trapped metal and degraded oil can restrict flow or return to the replacement compressor.
Q11: Should the receiver-drier or accumulator be replaced with the compressor?
A11: Replacement may be required when the system is opened, contaminated, exposed to moisture, or when specified by the service procedure.
Q12: Can A/C lines be flushed after compressor failure?
A12: Some lines can be flushed using approved methods, while mufflers, parallel-flow condensers, and certain components may not be reliably flushable.
Q13: What does dark compressor oil indicate?
A13: Dark oil may indicate overheating, oxidation, moisture, contamination, or internal wear.
Q14: Why can a new compressor fail quickly?
A14: Common causes include remaining debris, incorrect oil, incorrect refrigerant charge, unrepaired leaks, restrictions, poor condenser airflow, or incorrect fitment.
Q15: What should be checked before installing a replacement compressor?
A15: Check oil condition, contamination, condenser condition, drier or accumulator, expansion device, refrigerant lines, oil specification, refrigerant charge, control command, and complete fitment.
Q16: Can only the compressor be replaced after internal failure?
A16: Not always. Severe contamination may require replacement or service of the condenser, drier, accumulator, expansion device, and affected lines.
Q17: What is a variable-displacement control valve?
A17: It regulates the compressor’s internal pumping capacity according to cooling demand and system command.
Q18: Is opening an A/C compressor a normal repair procedure?
A18: Compressor disassembly is generally used for inspection or remanufacturing rather than normal vehicle-side repair.
Final Technical Summary
The inside of an A/C compressor contains precision pumping, sealing, drive, flow-control, and lubrication components. Internal wear may produce weak pressure separation, abnormal noise, oil leakage, shaft drag, metal particles, or complete seizure.
Internal compressor failure must be evaluated as a refrigerant-circuit contamination event. The condenser, drier or accumulator, expansion device, refrigerant lines, oil condition, charge quantity, airflow, electrical control, and replacement fitment should be verified before a new compressor is installed.
