How to Choose a Replacement A/C Compressor Without Ordering the Wrong Part

Replacement A/C Compressor Selection Starts Before the Parts Search

Choosing an A/C compressor replacement is not simply a matter of entering the vehicle name into a parts catalog. The same vehicle model may use different compressors based on engine size, production date, refrigerant system, accessory-drive layout, factory option, or compressor manufacturer.

A correct replacement must satisfy three separate requirements:

1. The compressor failure must be confirmed.
2. The replacement must physically and electrically match the original system.
3. The A/C circuit must be clean, correctly lubricated, leak-free, and ready to accept the new compressor.

An A/C compressor that bolts into place can still be incorrect if the pulley offset, connector, control valve, refrigerant ports, displacement, oil specification, or clutch strategy differs from the original unit.

For the compressor’s role in the refrigerant circuit, review what an A/C compressor does in a car. For a system-level view, see the car A/C system diagram covering the compressor, condenser, evaporator, and refrigerant lines.

Do Not Order Yet: Five Conditions That Require Diagnosis First

A replacement compressor should not be selected from a symptom alone. Several common A/C complaints can originate outside the compressor.

1. Cooling returns after recharge but becomes warm again

This pattern strongly supports refrigerant loss. The leak may be at the compressor, but it may also be located at:

• Condenser
• Evaporator
• Service port
• Hose crimp
• Line connection
• Receiver-drier or accumulator
• Pressure sensor or switch seal

Replacing the compressor without confirming the leak source can leave the original fault unchanged.

2. Cooling is acceptable while driving but weak at idle

Cooling that improves with vehicle speed commonly points toward condenser airflow rather than immediate compressor failure.

Check:

• Cooling-fan command
• Fan speed and direction
• Condenser fin blockage
• Debris between the condenser and radiator
• High-side pressure at idle
• Refrigerant charge by weight

For this comparison, review A/C compressor vs condenser warm-air diagnosis.

3. The compressor clutch does not engage

No clutch engagement may result from:

• Low refrigerant pressure
• Excessive system pressure
• Blown fuse
• Failed relay
• Damaged wiring or connector
• Pressure-sensor input
• Control-module logic
• Open clutch coil
• Excessive clutch air gap

For a complete engagement test sequence, review how the car A/C clutch works and why it may not engage.

4. Belt-area noise is present

Noise near the compressor may come from the pulley bearing, clutch, idler, tensioner, alternator, belt alignment, mounting bracket, or internal compressor mechanism.

The sound should be compared with:

• A/C switched off
• A/C requested on
• Cold engine-bay condition
• Normal operating temperature
• High-side pressure and compressor load

5. Warm air remains after compressor engagement

Clutch engagement does not prove adequate compressor output. Low charge, weak displacement, condenser airflow loss, restriction, incorrect blend-door position, or evaporator airflow problems can still produce warm air.

The Fitment Evidence Hierarchy

Not all fitment evidence has equal value. Use the strongest available information first and use visual similarity only as a supporting check.

Evidence Level	Fitment Information	Reliability	Important Limitation
Level 1	Verified OE number and vehicle-specific catalog data	Highest starting value	OE supersessions and production changes must still be checked
Level 2	VIN, engine code, production date, refrigerant system	Strong vehicle identification	Catalog interpretation must be accurate
Level 3	Original compressor manufacturer and model number	Strong component-family evidence	Label may be damaged or replaced previously
Level 4	Mounting, pulley, connector, ports, and body comparison	Essential physical confirmation	Similar appearance does not confirm internal specification
Level 5	Vehicle name and general model-year listing	Basic search filter only	Multiple engines and compressor variants may exist

Vehicle Identity Checks That Prevent Wrong-Part Orders

Model year

Model year is necessary but not sufficient. Midyear production changes, early and late build variants, and different factory A/C packages may use different compressors.

Make and model

Vehicle name narrows the catalog but does not confirm engine, pulley, ports, or electrical control.

Engine size and engine code

Engine variation can change:

• Accessory brackets
• Belt routing
• Pulley groove count
• Pulley offset
• Compressor mounting position
• Refrigerant-line routing
• Electrical connector location

Production date

A production-date split may explain why two different compressors are listed for the same model year and engine.

Refrigerant type

The compressor must be compatible with the vehicle’s specified refrigerant and oil. Refrigerant type should be confirmed from the underhood label or vehicle-specific service information.

Factory option or rear A/C configuration

Some SUVs, vans, and multi-zone vehicles use different compressor displacement or refrigerant capacity when rear air conditioning is installed.

OE Number Matching: Best Starting Point, Not the Final Step

The OE or interchange number is one of the strongest fitment references. It may be found on:

• The original compressor label
• A manufacturer service catalog
• An electronic parts catalog
• A previously verified repair record
• The compressor manufacturer identification plate

Why OE numbers can still create confusion

• The original number may have been superseded.
• The old compressor may already be an incorrect replacement.
• The label may identify a compressor family rather than the complete assembly.
• A clutch or connector variation may exist within the same housing family.
• A remanufactured label may cover the original identification.

After OE-number matching, compare the replacement part physically with the original compressor.

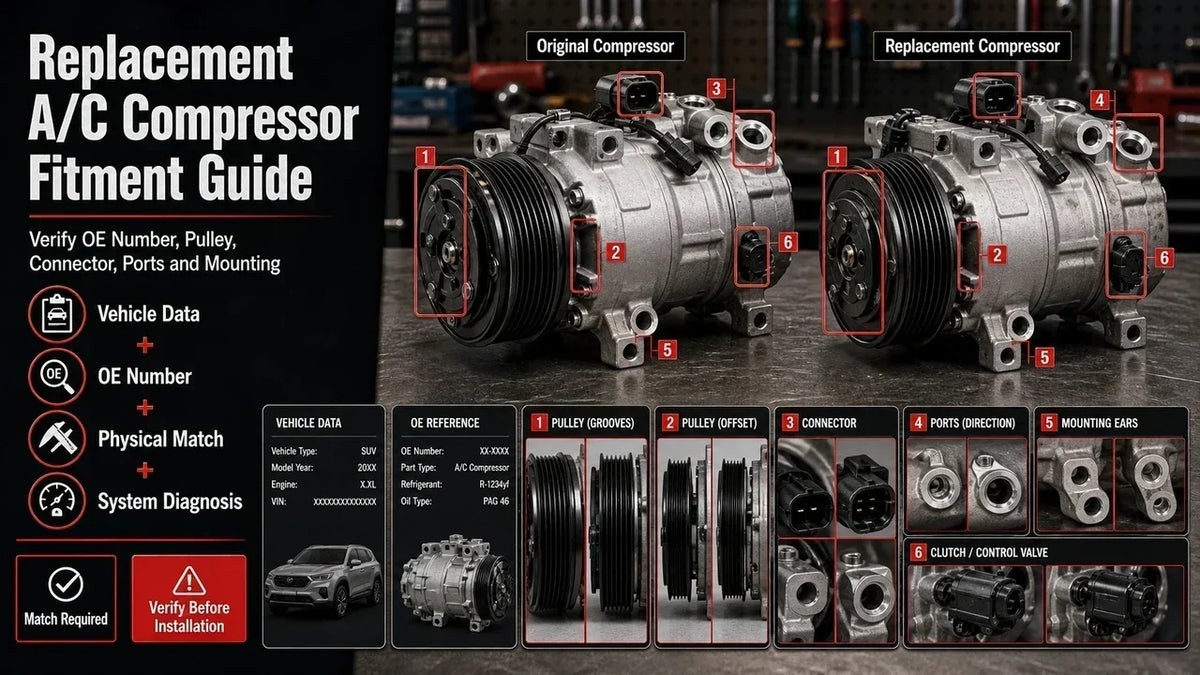

Physical Fitment Audit: Compare the Original and Replacement Side by Side

Place the original and replacement compressors in the same orientation and compare each fitment zone before installation.

Zone 1: Compressor body and mounting ears

Check:

• Overall body shape
• Mounting-ear count
• Ear position
• Bolt-hole diameter
• Bolt spacing
• Bracket-contact surfaces
• Case clearance near the engine and frame

Mounting bolts should align without pulling the compressor sideways or forcing the case against the bracket.

Zone 2: Pulley groove count

The pulley grooves must match the accessory belt. An incorrect groove count can create belt misalignment, unused grooves, edge loading, belt walk, or premature wear.

Zone 3: Pulley diameter and offset

Pulley diameter and side-to-side position affect:

• Belt tracking
• Compressor speed
• Clearance from nearby components
• Alignment with the crankshaft and accessory pulleys

A pulley that appears similar from the front may have a different rear offset.

Zone 4: Clutch or clutchless design

Confirm whether the system uses:

• Conventional electromagnetic clutch
• Continuously driven clutchless compressor
• Variable-displacement control valve
• Hybrid or electric compressor

A conventional clutch compressor should not be substituted for a different control strategy without verified application approval.

Zone 5: Electrical connector

Compare:

• Pin count
• Connector shape
• Locking tab
• Connector angle
• Harness reach
• Coil or control-valve location

Do not cut or modify the vehicle harness to make an unverified compressor fit.

Zone 6: Suction and discharge ports

Compare:

• Port spacing
• Port angle
• Manifold-block orientation
• Sealing surface
• Bolt position
• Refrigerant-line clearance

Refrigerant lines should meet the compressor naturally. Do not bend, twist, or preload the lines to reach incorrect port locations.

Zone 7: Sensors, switches, and control valves

Some compressors include a control valve, thermal switch, pressure switch, speed sensor, or separate electrical connection. The replacement configuration must match the vehicle control system.

Wrong-Part Scenario Files

Scenario 1: Two compressors are listed for the same model year

This usually means the catalog is separating applications by engine, production date, pulley, control strategy, or OE number.

Resolve the split by checking:

• VIN
• Engine code
• Production date
• Original OE number
• Pulley groove count
• Connector shape
• Port orientation

Scenario 2: The product listing says it fits, but the connector is different

A connector mismatch may indicate:

• Wrong engine application
• Different production split
• Clutch versus control-valve variation
• Incorrect compressor family
• Incomplete or inaccurate catalog data

Do not install the compressor until the electrical-control difference is resolved.

Scenario 3: The mounting bolts align, but the pulley sits forward

A pulley-offset mismatch can cause belt misalignment even when the body bolts to the bracket.

Possible consequences include:

• Belt edge wear
• Belt walk
• Tensioner oscillation
• Pulley noise
• Repeated clutch or bearing damage

Scenario 4: The refrigerant lines are close but do not sit flat

This commonly indicates an incorrect port angle, compressor body, manifold block, or production variation.

Forcing the line block into position can damage:

• O-rings
• Aluminum lines
• Compressor ports
• Retaining bolt threads
• Hose crimps

Scenario 5: The original compressor label is unreadable

When the label cannot be used, combine multiple evidence sources:

1. Vehicle VIN and engine code
2. Production date
3. Catalog application split
4. Compressor manufacturer casting marks
5. Pulley measurements
6. Connector and port comparison
7. Mounting-ear layout

Scenario 6: The old compressor may already be the wrong part

Do not assume the removed compressor is factory-correct. Evidence of prior modification may include:

• Modified wiring
• Forced refrigerant-line alignment
• Extra spacers or washers
• Incorrect belt length
• Misaligned pulley
• Damaged mounting bracket

Vehicle-specific OE data should take priority over an obviously modified installation.

Scenario 7: The replacement compressor is correct, but the belt does not fit

The incorrect belt may have been installed previously, or the replacement pulley may not match the verified application.

Check:

• Belt part number
• Belt routing
• Groove count
• Pulley diameter
• Tensioner range
• Accessory configuration

Scenario 8: The new compressor includes oil, but the amount is unknown

Oil prefill does not confirm that the compressor contains the correct total quantity for the entire system.

Before installation, determine:

• Oil type
• Oil quantity inside the replacement compressor
• Total system oil specification
• Oil removed with the failed compressor
• Oil retained in replaced or flushed components

Too little oil can cause wear. Too much oil can reduce heat-transfer volume and affect cooling performance.

Scenario 9: A compressor kit contains parts that do not match the vehicle

A kit should not be treated as proof that every included component fits every application listed.

Verify each included part separately:

• Compressor
• Receiver-drier or accumulator
• Expansion valve or orifice tube
• O-rings and seals
• Line hardware
• Oil type

Scenario 10: The compressor fits physically, but cooling remains weak

Physical fitment does not confirm system performance.

Possible unresolved causes include:

• Incorrect refrigerant charge
• Condenser airflow problem
• System restriction
• Incorrect oil quantity
• Air or moisture in the system
• Contamination
• Electrical-control fault
• Incorrect compressor displacement or control type
• HVAC blend-door fault

When an A/C Compressor Kit Makes Technical Sense

An A/C compressor kit may help organize supporting parts, but the correct kit depends on the failure mode and system design.

Failure Condition	Possible Supporting Parts	Why They May Be Needed
External compressor leak without contamination	O-rings, seals, drier where required	Restores opened joints and moisture protection
Clutch or control fault with clean system	Application-specific compressor or clutch assembly	Repair scope may remain limited if internals are clean
Internal compressor wear	Drier or accumulator, expansion device, seals	Debris and degraded oil may affect supporting components
Compressor seizure with metal contamination	Condenser, drier or accumulator, expansion device, line service	Protects the replacement compressor from trapped debris
System open for an extended period	Drier or accumulator, seals, evacuation service	Moisture contamination may reduce reliability

Common kit components

• A/C compressor
• Receiver-drier
• Accumulator
• Expansion valve
• Orifice tube
• O-rings
• Sealing washers
• Compressor oil
• Installation hardware

Kit contents should be verified against the exact vehicle and failure condition. More parts do not automatically mean a more complete or correct repair.

Contamination Determines Whether the System Is Ready for a New Compressor

Internal compressor failure can distribute metal, degraded oil, seal material, and moisture through the A/C circuit.

For contamination patterns, review inside an A/C compressor: parts, internals, and failure clues.

Low contamination evidence

• Oil remains relatively clean
• No visible metal particles
• No debris at the metering-device screen
• No compressor seizure

Moderate contamination evidence

• Dark oil
• Fine metallic residue
• Seal or desiccant material
• Partial expansion-device restriction

Severe contamination evidence

• Metal fragments
• Burnt oil
• Seized compressor
• Heavy orifice-screen blockage
• Debris in the discharge line or condenser

Modern parallel-flow condensers may trap debris in narrow passages and may not be reliably flushable after severe internal failure.

Replacement Compressor Receiving Inspection

Inspect the replacement compressor before removing caps, adding oil, or beginning installation.

Packaging and shipping condition

• Check for impact damage.
• Inspect mounting ears for cracks.
• Check pulley and clutch surfaces.
• Confirm ports remain sealed.
• Look for oil leakage from shipping caps.

Part identification

• Verify label and part number.
• Confirm the application and engine.
• Compare OE or interchange references.
• Confirm clutch or control design.

Side-by-side comparison

• Body shape
• Mounting ears
• Pulley grooves
• Pulley offset
• Connector
• Control valve
• Suction port
• Discharge port

Do not install when:

• The ports require forced line alignment.
• The connector does not match.
• The pulley does not align with the belt path.
• The mounting ears require modification.
• The compressor design differs from the verified application.
• Shipping damage is present.

Installation Readiness Gate

The replacement compressor should not enter the system until each readiness condition is confirmed.

Readiness Check	Required Confirmation	Risk if Skipped
Root cause	Compressor failure is supported by evidence	Unnecessary replacement or unresolved warm air
Leak source	Active leaks identified and repaired	Rapid refrigerant loss
Contamination	Oil, condenser, lines, and expansion device inspected	Repeat compressor failure
Condenser airflow	Fan, fins, shroud, and airflow verified	High pressure and excessive compressor load
Oil balance	Correct oil type and total system quantity	Internal wear or reduced cooling
Fitment	OE, body, pulley, connector, ports, and mounts match	Installation damage or control failure
Supporting parts	Drier, accumulator, expansion device, and seals serviced as required	Moisture, restriction, or contamination remains

Installation Practices That Protect the Replacement Compressor

Recover refrigerant correctly

Refrigerant should be recovered using approved service equipment. It should not be released into the atmosphere.

Keep the system sealed

Open lines should be capped to limit moisture and debris entry.

Replace opened seals

Use the correct O-rings or sealing washers and lubricate them with the specified compatible oil before assembly.

Verify oil specification and total quantity

Oil quantity should account for the compressor and every component that is replaced, flushed, or retained.

Do not rotate or energize the compressor without required preparation

Some replacement compressors require oil distribution or shaft rotation procedures before startup. Follow the supplied and vehicle-specific service instructions.

Evacuate the system

Evacuation removes air and moisture. Vacuum stability also provides one leak-check indicator, although it does not replace all leak-detection methods.

Charge by specified refrigerant weight

Do not charge by pressure alone or by estimating can quantity. Correct refrigerant mass affects pressure, cooling, and oil circulation.

Post-Installation Commissioning Checklist

Installation is not complete when the engine starts and the clutch engages.

1. Confirm the accessory belt is centered on every pulley.
2. Check clutch or control-valve operation.
3. Inspect refrigerant fittings for leakage.
4. Verify cooling-fan command and airflow.
5. Monitor high-side and low-side pressure.
6. Measure center-vent temperature.
7. Check cooling at idle and elevated engine speed.
8. Listen for clutch, pulley, bearing, and internal compressor noise.
9. Inspect the belt tensioner for excessive movement.
10. Confirm HVAC mode and blend-door operation.
11. Recheck for leaks after the system stabilizes.

Common Replacement Decisions and the Correct Response

Observed Situation	Incorrect Response	Better Technical Response
Warm air after recharge	Order a compressor immediately	Find the active leak and confirm the leaking component
Clutch does not engage	Assume internal compressor failure	Check pressure protection, command, fuse, relay, wiring, coil, and air gap
Cooling weak at idle	Replace the compressor	Check fan airflow, condenser condition, charge, and high-side pressure
Product looks almost identical	Install based on appearance	Verify OE number, engine, pulley, connector, ports, and mounting
Lines do not align	Bend the lines into place	Stop installation and resolve the fitment mismatch
Old compressor contains metal	Install the new compressor only	Evaluate condenser, drier, metering device, lines, and oil contamination
New compressor contains oil	Assume oil quantity is correct	Verify oil type, compressor fill, and total system oil balance

Professional Replacement Compressor Selection Sequence

1. Confirm the A/C complaint and operating condition.
2. Determine whether the compressor has actually failed.
3. Identify the vehicle by VIN, engine, production date, and refrigerant type.
4. Locate the original compressor OE or manufacturer number.
5. Review catalog production splits and application notes.
6. Compare compressor body and mounting ears.
7. Confirm pulley groove count, diameter, and offset.
8. Confirm clutch, clutchless, variable, or electric design.
9. Compare electrical connector and control-valve position.
10. Compare suction and discharge port orientation.
11. Inspect the old system for leaks and contamination.
12. Determine whether a kit or supporting parts are required.
13. Verify compressor oil type and total system oil quantity.
14. Inspect the delivered part before installation.
15. Complete evacuation, weighted recharge, and post-installation testing.

Technical Boundaries and Service Safety

• Vehicle name alone does not confirm compressor fitment.
• Static refrigerant pressure does not confirm correct charge quantity.
• Clutch engagement does not confirm correct compressor output.
• Refrigerant lines should not be bent to fit incorrect ports.
• Electrical connectors should not be modified to fit an unverified compressor.
• Refrigerant should be recovered with approved equipment.
• Hybrid and electric compressors may contain high voltage.
• Electric compressors require the specified electrically insulating oil.
• Parallel-flow condensers may require replacement after severe contamination.
• Oil quantity, refrigerant weight, torque values, and replacement scope vary by application.

FAQs

Q1: How do I choose the correct A/C compressor replacement?

A1: Match the VIN or vehicle data, engine, production date, OE number, compressor body, mounting ears, pulley, connector, refrigerant ports, control design, oil, and refrigerant specification.

Q2: Can I order an A/C compressor by vehicle name alone?

A2: No. The same vehicle may use different compressors based on engine, production date, factory option, and control system.

Q3: Is the OE number enough to confirm fitment?

A3: It is a strong starting point, but physical configuration, supersessions, engine application, and electrical-control details should still be checked.

Q4: Where can the compressor OE number be found?

A4: It may be found on the original label, manufacturer plate, vehicle parts catalog, service record, or verified interchange listing.

Q5: Why are two compressors listed for the same vehicle?

A5: The applications may differ by engine, production date, pulley, connector, refrigerant port layout, compressor supplier, or control strategy.

Q6: Why does pulley groove count matter?

A6: Incorrect groove count can prevent correct belt alignment and may cause belt wear or pulley damage.

Q7: Why does pulley offset matter?

A7: Pulley offset determines alignment with the other accessory-drive pulleys.

Q8: Can refrigerant lines be bent to fit a replacement compressor?

A8: No. Forced line alignment usually indicates incorrect port orientation or compressor fitment and can damage lines, seals, and fittings.

Q9: What if the electrical connector is different?

A9: Stop installation and verify the application. A connector difference may indicate the wrong compressor or control strategy.

Q10: Does a non-engaging clutch mean the compressor must be replaced?

A10: No. Low refrigerant, pressure protection, a fuse, relay, wiring, sensor, coil, or air-gap fault may prevent engagement.

Q11: Does warm air after recharge mean the compressor is bad?

A11: Not necessarily. Cooling that fades after recharge commonly indicates an unrepaired leak.

Q12: What is included in an A/C compressor kit?

A12: Depending on the application, a kit may include the compressor, drier or accumulator, expansion device, seals, oil, or installation hardware.

Q13: Is a compressor kit always required?

A13: No. Required supporting parts depend on the failure type, contamination, system design, and service procedure.

Q14: Should the condenser be replaced after compressor failure?

A14: It may require replacement when severe metal contamination, internal restriction, or a non-flushable parallel-flow design is present.

Q15: How much oil should be added to a replacement compressor?

A15: Oil quantity must follow the vehicle and compressor specification and account for oil already in the compressor and retained in the system.

Q16: Should refrigerant be charged by pressure or weight?

A16: The system should be charged by the specified refrigerant weight after proper evacuation.

Q17: What should be checked when the new compressor arrives?

A17: Check shipping damage, label, part number, body shape, mounting ears, pulley, connector, ports, control valve, seals, and oil information.

Q18: What should be tested after compressor replacement?

A18: Verify belt alignment, clutch or control operation, fan airflow, high- and low-side pressure, vent temperature, refrigerant leaks, noise, and HVAC operation.

Final Technical Summary

The correct A/C compressor replacement must match more than the vehicle name. Reliable fitment confirmation combines VIN and engine data, production date, OE number, compressor design, mounting ears, pulley configuration, electrical connector, refrigerant ports, refrigerant type, and oil specification.

Diagnosis and system preparation are equally important. Leaks, condenser airflow faults, electrical-control problems, restrictions, incorrect charge, and contamination should be corrected before installation. A physically correct compressor can still fail quickly when the original root cause remains in the A/C circuit.
