Quick Answer

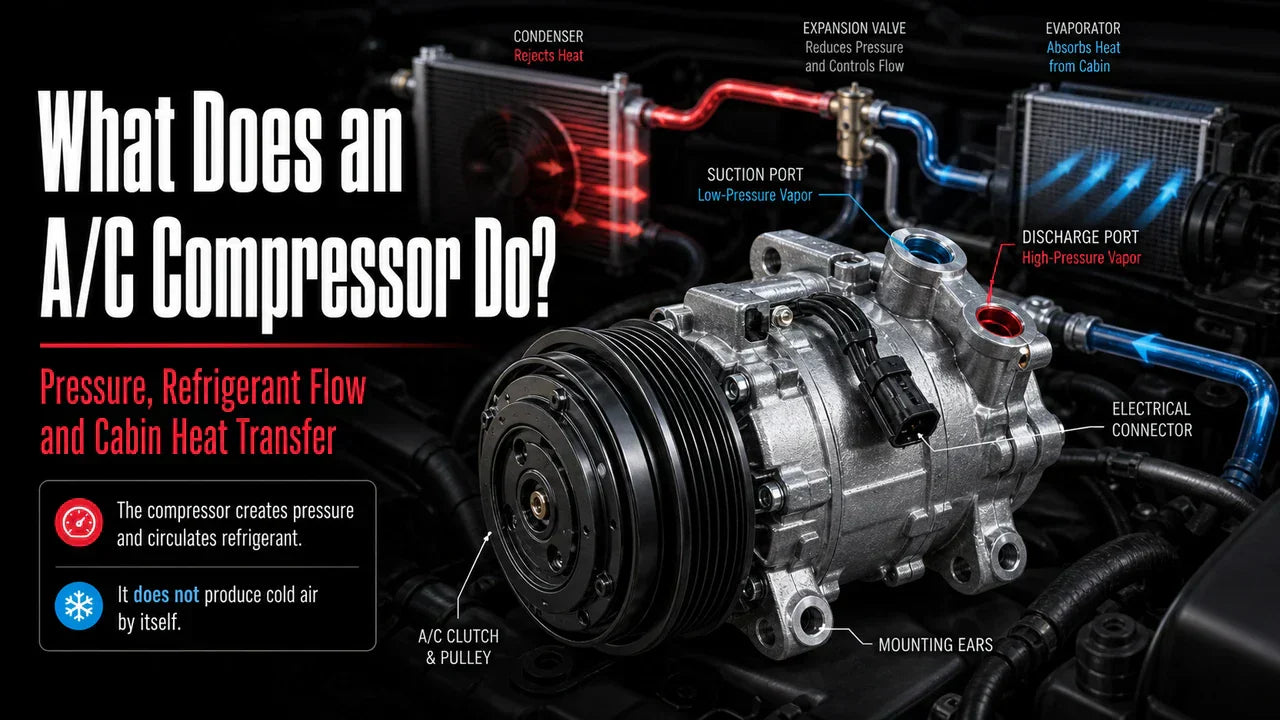

What does an A/C compressor do in a car?
The A/C compressor pressurizes refrigerant and keeps it circulating through the vehicle’s air-conditioning system. It draws low-pressure refrigerant vapor from the evaporator side, compresses it into a high-pressure and high-temperature state, and sends it toward the condenser so heat can be released outside the vehicle.
The compressor does not produce cold air by itself. It creates the pressure difference that allows the condenser, expansion device, evaporator, refrigerant lines, sensors, cooling fans, and HVAC controls to complete the cooling cycle.
Warm vent air, weak cooling, clutch non-engagement, compressor noise, or belt drag may involve the compressor, but these symptoms do not confirm compressor failure. Low refrigerant, active leaks, condenser airflow problems, electrical faults, incorrect refrigerant charge, restricted components, or blend-door problems can produce similar operating conditions.
For a basic definition of the component, read what an A/C compressor is. For a step-by-step explanation of refrigerant movement, see how a car A/C compressor works.
The Core Function of an A/C Compressor
It creates the pressure difference needed for refrigerant flow
The automotive A/C system has a low-pressure side and a high-pressure side. The compressor creates the pressure difference between them. Without this pressure change, refrigerant cannot move through the condenser, expansion device, and evaporator in the required sequence.
It moves refrigerant from the low-pressure side to the high-pressure side
Low-pressure refrigerant vapor returns from the evaporator to the compressor. The compressor raises the vapor pressure and sends it into the high-pressure side of the system.
It supports heat transfer
The purpose of the A/C system is to move heat from the cabin to the outside air. The compressor prepares refrigerant for heat release at the condenser and supports the pressure reduction needed for heat absorption at the evaporator.
It helps circulate refrigerant oil
Compressor oil travels with refrigerant and lubricates internal moving parts. Correct refrigerant charge, oil type, and oil quantity are essential for compressor durability and system performance.
It responds to system demand and control inputs
Depending on the vehicle design, compressor operation may be controlled by an electromagnetic clutch, variable-displacement control valve, engine control module, HVAC control module, pressure sensor, temperature sensor, or electric drive system.
A/C Compressor Function in Repair Terms
- Creates the pressure difference required for refrigerant circulation
- Moves refrigerant from the evaporator side to the condenser side
- Raises refrigerant pressure and temperature before heat rejection
- Supports cabin heat removal through the condenser and evaporator
- Circulates refrigerant oil for internal lubrication
- Responds to electrical commands and pressure conditions
- Depends on correct refrigerant charge and clean system components
- Works with the belt, clutch, pulley, control valve, sensors, and cooling fans
How the Compressor Supports the Cooling Cycle
| System Stage | Compressor or System Action | Expected Cooling Result |
|---|---|---|
| Compressor intake | Low-pressure refrigerant vapor returns from the evaporator | The refrigerant cycle prepares to repeat |
| Compression | Refrigerant pressure and temperature increase | No immediate vent-temperature change occurs at this stage |
| Condenser flow | High-pressure refrigerant releases heat to outside air | System cooling improves when condenser airflow is adequate |
| Expansion | Refrigerant pressure drops through the expansion valve or orifice tube | The refrigerant becomes ready to absorb cabin heat |
| Evaporation | Refrigerant absorbs heat inside the evaporator | Cooler air exits the vents |
| Cycle repeat | Low-pressure vapor returns to the compressor | Vent temperature remains stable when the complete system operates correctly |
For a visual component layout, review the car A/C system diagram showing the compressor, condenser, and evaporator.
Why the Compressor Is Not a Standalone Cooling Part
A new compressor cannot correct every warm-air condition
Installing a new A/C compressor does not automatically restore cold vent air. System performance may remain poor when other refrigerant, airflow, electrical, or HVAC faults are present.
A replacement compressor may still perform poorly when the system has:
- Low refrigerant caused by an unrepaired leak
- A blocked or damaged condenser
- A failed radiator or condenser fan
- A restricted expansion valve or orifice tube
- Incorrect refrigerant charge
- Too much or too little compressor oil
- Air or moisture contamination
- A stuck HVAC blend door
- Electrical control or sensor faults
The compressor depends on the rest of the system
The compressor can operate correctly only when refrigerant flow, heat rejection, airflow, electrical command, lubrication, and system cleanliness remain within the required operating range.
For this reason, the complete A/C system should be diagnosed before compressor replacement.
What Happens When the Compressor Is Working Correctly?
Pressure changes match the operating conditions
A healthy compressor should create a useful pressure difference between the low and high sides of the system. Exact pressure values depend on ambient temperature, refrigerant type, engine speed, system design, blower setting, and humidity.
Cooling remains stable
When the complete system is healthy, vent temperature should remain reasonably stable instead of changing sharply between idle and road-speed operation.
The compressor operates without abnormal noise or drag
Clutch engagement may create a small change in engine load, but grinding, severe rattling, belt squeal, pulley wobble, or heavy engine drag is not normal.
Refrigerant and oil remain contained
The compressor body, shaft seal, ports, fittings, and nearby refrigerant connections should not show active refrigerant-oil leakage.
What Happens When Compressor Function Breaks Down?
Insufficient refrigerant compression
If the compressor cannot create the required pressure difference, refrigerant flow and cooling performance may weaken. Common results include warm vent air, weak cooling at idle, or improved cooling only at higher engine speed.
Internal wear or leakage
Internal wear may allow refrigerant to leak past the compressor’s pumping surfaces instead of being compressed effectively. The compressor may rotate without producing adequate output.
Mechanical seizure or excessive drag
A seized or binding compressor can overload the belt, tensioner, clutch, or electric drive system. Severe drag may cause belt smoke, squealing, pulley damage, or abnormal engine load.
Clutch or control failure
On clutch-style systems, compressor engagement may be prevented by a failed clutch coil, excessive air gap, relay fault, blown fuse, wiring problem, pressure-sensor input, or mechanical seizure. Variable-displacement compressors may have a failed control valve even when the pulley continues to rotate.
For clutch-specific diagnosis, read how the car A/C clutch works and why it may not engage.
Low Refrigerant and Poor Compressor Lubrication
Low refrigerant can reduce oil circulation
Refrigerant oil circulates with refrigerant through the system. When refrigerant charge becomes significantly low because of a leak, oil movement may also decrease.
Warm vent air may be the most visible symptom, while reduced refrigerant charge may also limit oil circulation and increase internal compressor wear.
Find the leak before replacing the compressor
If cooling repeatedly weakens after recharge, inspect for leaks at:
- Compressor front seal
- Compressor body or case joints
- Refrigerant ports and O-rings
- Hose crimps and fittings
- Condenser
- Service ports
- Evaporator where applicable
Repeated refrigerant top-offs without leak repair can increase compressor wear and system contamination.
Restrictions and Abnormal High Pressure
A restriction can make a healthy compressor appear faulty
A blocked condenser, receiver-drier, expansion valve, or orifice tube can change pressure behavior and reduce cooling. The compressor may become noisy or heavily loaded because it is operating against abnormal system pressure.
Common restriction-related clues
- Abnormally high high-side pressure
- Rapid pressure rise after compressor engagement
- Weak cooling despite compressor operation
- Temperature differences across a restricted component
- Increased belt load or engine drag
- Repeat compressor failure after replacement
Installing a new compressor does not remove a restriction
If the restriction is not identified and corrected, the replacement compressor may operate under the same abnormal pressure and fail again.
Electrical Control Problems
The compressor may be mechanically sound but unable to operate
Electrical faults can prevent compressor operation even when the internal mechanism remains serviceable.
Possible causes include:
- Blown A/C fuse
- Failed compressor relay
- Damaged wiring or connector
- Faulty pressure sensor or pressure switch
- Clutch-coil failure
- Excessive clutch air gap
- HVAC control fault
- Engine control module not commanding operation
- Variable-displacement control-valve circuit problem
Pressure protection can prevent engagement
The control system may intentionally prevent compressor operation when refrigerant pressure is too low or too high. This protection strategy does not automatically indicate clutch, relay, or compressor failure.
Common Symptoms and What They May Mean
| Observed Symptom | Possible Compressor Connection | Other Causes to Check First |
|---|---|---|
| Warm air from vents | Compressor not pumping or not commanded on | Low refrigerant, leak, blend door, condenser airflow, or electrical fault |
| Weak cooling at idle | Weak compressor output at low speed | Cooling fan, condenser blockage, incorrect charge, or overcharge |
| Clutch does not engage | Clutch coil, air gap, or seized compressor | Fuse, relay, wiring, pressure sensor, or low refrigerant |
| Noise when A/C is switched on | Internal wear, clutch drag, or bearing damage | Belt, tensioner, idler, alternator bearing, or bracket movement |
| Oil trace near compressor | Front-seal, body, or port leak | Hose fitting, O-ring, or nearby refrigerant line |
| Belt squeal or engine drag | Compressor or clutch binding | Weak tensioner, contaminated belt, or pulley misalignment |
| Cooling changes with engine speed | Weak displacement or internal leakage | Fan operation, refrigerant charge, control valve, or condenser airflow |
A/C Compressor Diagnosis by Real-World Operating Scenario
Scenario 1: The A/C cools while driving but becomes warm at idle
Poor condenser airflow is a common cause of cooling that improves at road speed but weakens at idle. Vehicle movement forces air through the condenser while driving, whereas idle operation depends heavily on the electric cooling fan.
Diagnostic checks should include:
- Condenser and radiator fan operation
- Condenser fin blockage
- High-side pressure at idle
- Refrigerant charge
- Compressor output at different engine speeds
Scenario 2: The clutch does not engage when A/C is requested
The compressor may remain mechanically sound while the control system prevents engagement because refrigerant pressure is too low, pressure is too high, engine temperature is excessive, or an electrical command is missing.
Diagnostic checks should include:
- A/C request signal
- Fuse and relay
- Pressure-sensor data
- Clutch-coil voltage and ground
- Clutch air gap
- Refrigerant leak condition
Scenario 3: Noise appears only when the A/C is switched on
Noise that begins with compressor engagement may originate from internal compressor wear, the clutch assembly, a heavily loaded tensioner, or another belt-driven component reacting to increased load.
Noise that continues with the A/C switched off may point more strongly to the pulley bearing, belt, idler, tensioner, or another accessory.
Scenario 4: The system was recharged and became warm again
If cooling temporarily improves after recharge and then weakens again, an active refrigerant leak is more likely than immediate compressor failure.
Repeated refrigerant addition without leak diagnosis can reduce oil circulation and cause long-term compressor damage.
Scenario 5: Cooling is weak after compressor replacement
A new compressor may still produce poor cooling when the system has:
- Incorrect refrigerant weight
- Incorrect oil quantity
- Air or moisture remaining after incomplete evacuation
- A restricted condenser or expansion device
- Weak cooling-fan airflow
- Contamination from the previous failure
- An incorrect compressor variant
Scenario 6: The compressor pulley turns, but the system does not cool
A rotating pulley does not prove that refrigerant is being compressed. On clutch-style systems, the pulley may rotate while the clutch plate remains disengaged. On clutchless or variable-displacement systems, the compressor may turn continuously while producing little or no useful displacement.
Scenario 7: The compressor failed and metal debris is present
Metal contamination changes the repair from a single-component replacement to a system-level repair.
Inspection or replacement may be required for:
- Condenser
- Receiver-drier or accumulator
- Expansion valve or orifice tube
- Refrigerant lines
- Oil balance
- System flushability
Scenario 8: The vehicle uses a hybrid or electric powertrain
Hybrid and electric vehicles may use a high-voltage electric A/C compressor. These systems require model-specific isolation procedures, correct electrically insulating compressor oil, and qualified service equipment.
Incorrect oil or testing procedures can create a high-voltage safety risk.
A/C System Diagnosis Checklist
- Does cooling improve while driving compared with idle?
- Does the clutch engage when A/C is requested?
- Does the compressor pulley rotate normally?
- Was the system recently recharged and then lost cooling again?
- Is oily residue visible around compressor ports or refrigerant fittings?
- Does noise appear only when the A/C is switched on?
- Do the cooling fans operate with A/C demand?
- Do pressure readings indicate weak compression or a restriction?
- Does vent temperature change significantly between idle and road speed?
- Are the belt and tensioner stable during compressor operation?
Professional Diagnosis Before Replacing the Compressor
Step 1: Confirm the exact operating condition
Identify whether the issue is no cooling, weak cooling, intermittent cooling, noise, clutch non-engagement, belt drag, or refrigerant leakage.
Step 2: Inspect the system visually
Check for oil residue, damaged hoses, loose connectors, belt wear, blocked condenser fins, previous repairs, and incorrect components.
Step 3: Verify refrigerant charge and leak condition
Pressure alone does not confirm correct refrigerant charge. Recovering and weighing the refrigerant may be necessary.
Step 4: Verify electrical command
Check the A/C request, fuse, relay, clutch or control-valve command, pressure-sensor input, wiring, and diagnostic trouble codes.
Step 5: Confirm condenser airflow
Verify that the cooling fans operate and that the condenser is not blocked by dirt, debris, bent fins, or installed accessories.
Step 6: Read high-side and low-side pressure
Interpret pressure readings together with ambient temperature, engine speed, refrigerant type, and manufacturer specifications.
Step 7: Measure vent temperature
Compare vent temperature with ambient temperature, humidity, blower speed, and recirculation mode.
Step 8: Inspect the belt and tensioner
A slipping belt or weak tensioner can reduce compressor speed and create noise that resembles compressor failure.
Step 9: Test clutch or variable-displacement control
Check clutch engagement and air gap on clutch systems. On variable-displacement compressors, evaluate control-valve command and pressure response.
Step 10: Compare compressor behavior with the rest of the system
Confirm that condenser restriction, expansion-device faults, evaporator icing, or HVAC airflow problems are not causing the operating condition.
A/C Compressor vs Condenser: Different Jobs
| Component | Main Function | Common Failure Pattern |
|---|---|---|
| A/C compressor | Compresses and circulates refrigerant | Weak pressure difference, noise, seizure, leakage, or control failure |
| Condenser | Releases refrigerant heat to outside air | High pressure, poor cooling at idle, blocked fins, or physical damage |
For a detailed warm-air comparison, read A/C compressor vs condenser diagnosis.
Internal Compressor Parts That Support Its Function
Depending on compressor design, internal and external parts may include:
- Pulley and bearing
- Electromagnetic clutch
- Compressor shaft
- Front shaft seal
- Swash plate or scroll mechanism
- Pistons or vanes
- Variable-displacement control valve
- Suction and discharge valves
- Refrigerant ports
- Oil passages
For a deeper mechanical breakdown, see inside an A/C compressor: parts, internals, and failure clues.
Where Is the A/C Compressor Located?
On most gasoline and diesel vehicles, the compressor is mounted on the engine and driven by the accessory belt. It is commonly positioned low on the front or side of the engine, although access varies by vehicle layout.
Hybrid and electric vehicles may use a separately mounted electric compressor that does not depend on the engine belt.
For identification guidance, read where the A/C compressor is located in a car.
Choosing a Replacement A/C Compressor
Do not match by vehicle name alone
A replacement compressor should match the complete vehicle application and physical configuration.
Confirm:
- Year, make, model, and engine
- OE or interchange number
- Compressor type
- Clutch or clutchless design
- Pulley diameter and groove count
- Electrical connector
- Refrigerant port orientation
- Mounting-ear layout
- Oil specification
- Refrigerant specification
For a complete selection process, read the replacement A/C compressor fitment guide.
Common Replacement Mistakes
Replacing the compressor without finding the leak
An unrepaired leak can reduce lubrication and cause the replacement compressor to operate with insufficient refrigerant.
Ignoring contamination from the old compressor
Metal debris and degraded oil can damage the replacement unit.
Using the wrong oil or oil quantity
Incorrect oil can reduce cooling performance, damage components, or create electrical isolation problems on electric compressor systems.
Charging refrigerant by pressure only
Automotive A/C systems should generally be charged by the specified refrigerant weight using suitable service equipment.
Ignoring the condenser and cooling fan
A replacement compressor can still operate under excessive pressure if heat cannot leave the condenser.
Ordering the wrong pulley, connector, or port layout
A visually similar compressor may not fit or operate correctly.
FAQs
Q1: What does an A/C compressor do in a car?
A1: It compresses and circulates refrigerant so the system can move heat from the cabin to the outside air.
Q2: What is the main function of an A/C compressor?
A2: Its main function is to create the pressure difference needed for refrigerant circulation and heat transfer.
Q3: Does the compressor create cold air?
A3: No. It supports the refrigerant cycle, but cold vent air depends on the complete A/C system.
Q4: Can a bad compressor cause warm air?
A4: Yes, but warm air can also result from leaks, low refrigerant, fan problems, electrical faults, restrictions, or blend-door issues.
Q5: Why does the A/C cool better while driving?
A5: Better cooling while driving often points to weak condenser airflow at idle, although refrigerant charge and compressor output should also be checked.
Q6: Why does the A/C compressor clutch not engage?
A6: Possible causes include low refrigerant, pressure-sensor input, a failed fuse or relay, wiring faults, clutch-coil failure, incorrect air gap, or compressor seizure.
Q7: Can the compressor pulley turn even if the compressor is bad?
A7: Yes. The pulley may rotate while the clutch is disengaged, or a variable-displacement compressor may turn without producing adequate output.
Q8: Can low refrigerant damage the compressor?
A8: It can. Low refrigerant may reduce oil circulation and increase compressor wear.
Q9: Why did the A/C become warm again after a recharge?
A9: An unrepaired refrigerant leak is a common cause. The system should be leak-tested instead of repeatedly topped off.
Q10: Can a restriction damage the compressor?
A10: Yes. A blocked condenser, drier, expansion valve, or orifice tube can create abnormal pressure and compressor load.
Q11: Can only the compressor be replaced?
A11: Sometimes, but internal failure or contamination may require replacement of the drier, accumulator, condenser, expansion device, or other components.
Q12: Why is the A/C weak after compressor replacement?
A12: Possible causes include incorrect charge, incorrect oil, contamination, weak fan airflow, restrictions, or incorrect compressor fitment.
Q13: Can an A/C compressor cause belt squeal?
A13: Yes. A binding compressor or clutch can increase belt load, but the belt, tensioner, and pulley alignment should also be checked.
Q14: Is the compressor the same as the condenser?
A14: No. The compressor pressurizes and moves refrigerant, while the condenser releases heat.
Q15: Where is the A/C compressor located?
A15: It is usually mounted on the engine and driven by the accessory belt, although hybrid and electric vehicles may use a separate electric compressor.
Q16: How should a replacement compressor be selected?
A16: Match the exact vehicle, engine, OE number, compressor type, pulley, connector, ports, mounting points, oil, and refrigerant specification.
Final Technician Recommendations
Understand the compressor’s role before replacement
The A/C compressor creates pressure and circulates refrigerant, but proper cooling depends on the complete air-conditioning system.
Diagnose refrigerant, electrical, airflow, and mechanical conditions
Check refrigerant charge, leak condition, electrical command, condenser airflow, pressure readings, belt condition, and HVAC operation before condemning the compressor.
Treat internal failure as a complete-system concern
If metal debris or degraded oil is present, inspect the condenser, drier or accumulator, expansion device, and refrigerant lines before installing a replacement.
Match the replacement by complete fitment
Use the exact engine, OE number, pulley, clutch or control design, connector, ports, oil, refrigerant, and mounting layout rather than vehicle name alone.
