Quick Answer

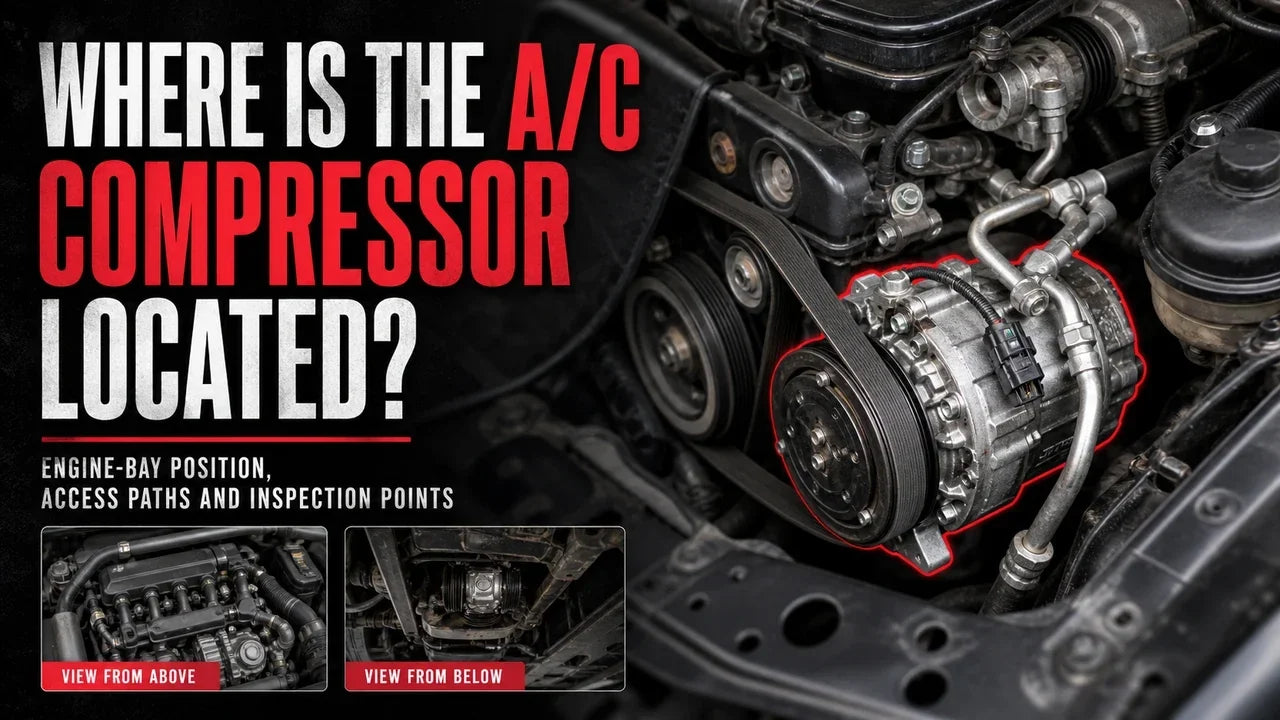

Where is the A/C compressor located in a car?
The A/C compressor is usually mounted to the engine accessory-drive system and is driven by the serpentine belt or a dedicated accessory belt. On many gasoline and diesel vehicles, it is positioned at the front, lower front, or lower side of the engine.
Compressor location varies with engine orientation, vehicle platform, drivetrain layout, engine-bay packaging, and compressor design. A transverse-engine car may require inspection from below, while a pickup truck or longitudinal-engine vehicle may provide a clearer view from above.
The component can usually be identified by its belt-driven pulley, refrigerant-line connections, electrical connector, and rigid mounting ears. Hybrid and electric vehicles may use a separately mounted high-voltage electric compressor that is not driven by an engine belt.
For a basic explanation of the component, review what an A/C compressor is. For its role in the refrigerant circuit, see what an A/C compressor does in a car.
Start With the Engine Accessory Drive
The fastest way to locate a conventional A/C compressor is to identify the accessory-belt path. The compressor pulley is normally one of several pulleys driven by the crankshaft.
Other belt-driven components may include:
- Alternator
- Water pump
- Power-steering pump where equipped
- Idler pulleys
- Belt tensioner
- A/C compressor
The compressor is distinguished from the other accessories by the presence of two refrigerant-line connections. One line connects to the low-pressure suction side, and the other connects to the high-pressure discharge side.
Common visual identification points
- A grooved pulley aligned with the accessory belt
- A clutch plate on many conventional compressors
- Two aluminum refrigerant tubes or hose assemblies
- An electrical connector for the clutch or control valve
- A cast aluminum compressor body
- Several mounting ears attached to an engine bracket
Typical A/C Compressor Locations by Vehicle Layout
| Vehicle Layout | Typical Compressor Position | Likely Access Direction | Common Inspection Limitation |
|---|---|---|---|
| Front-wheel-drive car with transverse engine | Lower front or lower side of the engine | From below or through a wheel-well opening | Splash shield, subframe, radiator support, or limited line of sight |
| Rear-wheel-drive car with longitudinal engine | Front accessory-drive area | Usually from above, sometimes from below | Radiator fan, intake ducting, or accessory brackets |
| Pickup truck | Front or lower side of the engine | Often visible from above | Fan shroud, skid plate, suspension crossmember, or large accessory bracket |
| Body-on-frame SUV | Front accessory-drive area or lower engine side | Above and below access may both be useful | Skid plates, fan shroud, four-wheel-drive components, or narrow line clearance |
| Minivan | Lower side of a transverse engine | Frequently from below or through the wheel well | Tight subframe clearance and restricted connector access |
| Compact car | Low in a tightly packaged engine bay | Often from below after shield removal | Limited view of ports, connector, and mounting bolts |
| Hybrid vehicle | Engine bay, subframe area, or separate electric-compressor mounting location | Vehicle-specific | High-voltage components and special service procedures |
| Battery-electric vehicle | Front compartment, subframe, or thermal-management module area | Vehicle-specific | No belt drive; high-voltage isolation required |
How Engine Orientation Changes Compressor Access
Transverse engines
A transverse engine is mounted sideways across the engine bay. The compressor may sit close to a frame rail, radiator support, lower subframe, or wheel-well liner.
Common access methods include:
- Raising the vehicle safely
- Removing the lower splash shield
- Removing a front wheel and inner fender liner
- Releasing belt tension from below
- Moving an intake duct or coolant reservoir where permitted
On tightly packaged platforms, the compressor may be visible from above but removable only from below.
Longitudinal engines
A longitudinal engine is mounted front-to-rear. The compressor is commonly attached to the front accessory drive and may be easier to identify from above.
Access can still be limited by:
- Cooling-fan shroud
- Radiator hose routing
- Air-intake ducting
- Alternator or power-steering components
- Large engine-mount or accessory brackets
High-mounted vs low-mounted compressors
A high-mounted compressor may provide easier connector, pulley, and port inspection. A low-mounted compressor is more exposed to road debris, splash, oil contamination, and underbody restrictions.
Compressor position also affects labor time because removal may require access to bolts from more than one direction.
How to Locate the Compressor Without Confusing It With Another Pulley
Confirm refrigerant lines
The most reliable identification feature is the pair of refrigerant connections. The suction line is typically larger in diameter, while the discharge line is generally smaller.
Identify the clutch face where equipped
On a conventional clutch compressor, the front face contains a clutch plate inside or immediately in front of the pulley. The pulley may rotate whenever the engine runs, while the clutch plate engages only when the compressor is commanded on.
Check for a control-valve connector
Variable-displacement compressors may have an electrical control-valve connector on the rear or side of the compressor body. Some designs do not use an obvious cycling clutch.
Trace the belt diagram
Many vehicles include an accessory-belt routing label under the hood. The compressor may be identified by an A/C symbol or by following the belt path from the crankshaft pulley.
For a full explanation of pulley and clutch operation, read how the car A/C clutch works and why it may not engage.
Access Paths Before Inspection or Removal
Finding the compressor visually does not confirm the correct service path. Access direction should be planned before removing parts.
Top-access inspection
Top access may allow inspection of:
- Clutch-face movement
- Electrical connector condition
- Upper refrigerant fittings
- Belt tracking
- Oil residue
- Mounting-bracket movement
Bottom-access inspection
Bottom access may be required to inspect:
- Lower mounting bolts
- Compressor case joints
- Drainage or oil contamination from above
- Belt alignment
- Lower line connections
- Subframe and splash-shield clearance
Wheel-well access
Some transverse-engine platforms provide the clearest access through the inner fender after the wheel and liner are removed. This route may expose the pulley, clutch face, belt, and lower compressor bolts.
Do not assume visibility equals removability
A compressor may be easy to see but difficult to remove because the refrigerant lines, mounting bolts, subframe, cooling fan, or engine bracket block the removal path.
What to Inspect Once the Compressor Is Located
Inspection Zone 1: Pulley, clutch, and belt
Inspect the accessory-drive area for:
- Clutch engagement where applicable
- Pulley wobble
- Bearing noise
- Clutch-face discoloration
- Excessive clutch air gap
- Belt glazing or cracking
- Belt misalignment
- Tensioner oscillation
Noise from the belt area should be separated between the compressor, pulley bearing, tensioner, idler, alternator, and other accessories.
Inspection Zone 2: Suction and discharge ports
Inspect refrigerant connections for:
- Oil residue
- UV dye evidence
- Damaged O-rings
- Corrosion
- Loose retaining hardware
- Line contact with brackets or bodywork
- Previous bending or forced alignment
The replacement compressor must match the original port position and angle. Refrigerant lines should not be bent or forced to reach mismatched ports.
Inspection Zone 3: Electrical connector
Check the connector and harness for:
- Broken locking tabs
- Corroded terminals
- Heat damage
- Oil saturation
- Wire tension
- Previous splices
- Contact with the belt or pulley
A loose or damaged connector can prevent clutch engagement or variable-displacement control while the compressor remains mechanically serviceable.
Inspection Zone 4: Mounting ears and brackets
Inspect for:
- Cracked mounting ears
- Loose bolts
- Missing spacers
- Bracket distortion
- Misalignment with the accessory belt
- Contact with nearby components
Mounting damage can create belt noise, line stress, pulley misalignment, and repeated compressor failure.
Inspection Zone 5: Compressor body and front seal
Oil residue around the shaft area, body seam, pressure-relief area, or case may indicate refrigerant leakage. Oil contamination from the engine should be traced carefully before identifying the compressor as the leak source.
Location-Based Diagnostic Scenarios
Scenario 1: Noise appears low in the engine bay when A/C is activated
A low-mounted compressor may transmit noise through the subframe or splash shield, making the source difficult to identify from above.
Inspection priorities:
- Clutch engagement timing
- Pulley bearing
- Belt and tensioner movement
- Compressor mounting bolts
- Splash-shield contact
- Refrigerant-line vibration
Scenario 2: The pulley rotates, but the clutch face does not
On a clutch-equipped system, pulley rotation without clutch-plate movement means the compressor shaft is not being driven.
Relevant checks include:
- A/C request signal
- Fuse and relay
- Clutch-coil power and ground
- Pressure-sensor data
- Clutch air gap
- Compressor shaft condition
Scenario 3: Oil residue is visible below the compressor
Residue below the compressor does not automatically confirm a compressor leak. Engine oil, power-steering fluid, or refrigerant oil may travel downward from another source.
Inspection should begin at the highest wet point and include:
- Compressor front seal
- Port fittings
- Hose crimps
- Valve-cover or engine-oil leaks above the compressor
- Nearby power-steering components
- UV dye evidence
Scenario 4: The compressor is visible, but the connector cannot be reached
Rear-mounted or upward-facing connectors may be blocked by the engine block, radiator fan, intake duct, or bracket. Disconnecting the connector by pulling on the wire can damage the harness.
The correct access path may require removal of a shield, duct, fan assembly, or adjacent bracket according to the service procedure.
Scenario 5: The replacement compressor looks similar but the lines do not align
Small differences in port angle, port spacing, case shape, or mounting-ear position can prevent correct installation.
Do not bend refrigerant lines or force mounting bolts into position. Compare:
- Port orientation
- Port spacing
- Mounting-ear layout
- Connector position
- Pulley offset
- Body clearance
Scenario 6: Access is blocked by a splash shield or wheel-well liner
Underbody panels and liners may conceal the compressor, protect the belt, and control airflow. Removing or leaving these panels incorrectly installed can expose the belt and compressor to water, debris, and road contamination.
Scenario 7: The compressor is positioned below another leaking component
Fluid from a valve cover, vacuum pump, power-steering component, or engine seal may collect on the compressor body. The highest source of contamination should be identified before replacing A/C components.
Scenario 8: The compressor is electric and no belt-driven unit is visible
Hybrid and battery-electric vehicles may use a high-voltage electric compressor mounted separately from the engine accessory drive.
Identification may require:
- Vehicle-specific service information
- High-voltage warning labels
- Orange high-voltage cables
- Refrigerant-line tracing
- Thermal-management system layout
High-voltage compressor inspection and service require qualified procedures and the correct electrically insulating oil.
Why Compressor Location Affects Labor Time
Labor time depends on more than the number of mounting bolts. Compressor position may require removal or repositioning of surrounding components.
Possible additional operations include:
- Recovering refrigerant
- Removing a splash shield
- Removing a wheel and inner fender liner
- Removing an intake duct
- Releasing and reinstalling the accessory belt
- Removing the cooling fan or fan shroud
- Supporting or repositioning the engine where specified
- Removing brackets or underbody panels
- Accessing mounting bolts from multiple directions
A compressor mounted low near the subframe may require more access work than a clearly visible high-mounted compressor, even when the components are otherwise similar.
Location Does Not Confirm Compressor Failure
Finding the compressor and observing a non-engaging clutch, oily surface, or belt-area noise does not complete the diagnosis.
Before replacement, verify:
- Refrigerant quantity
- Active leak location
- Clutch or control-valve command
- High-side and low-side pressure behavior
- Condenser airflow
- Belt and tensioner condition
- HVAC airflow and blend-door operation
- Internal contamination evidence
For a complete refrigerant-path overview, review the car A/C system diagram covering the compressor, condenser, evaporator, and lines.
Common Location Mistakes During Inspection
Confusing the compressor pulley with an idler
An idler pulley does not have refrigerant-line connections or a compressor body attached behind it.
Assuming the pulley must stop when A/C is off
On clutch-style systems, the pulley normally continues to rotate with the belt even when the clutch plate is disengaged.
Assuming every compressor has a visible clutch
Variable-displacement, clutchless, hybrid, and electric compressors may use different control designs.
Inspecting only from above
A lower case leak, rear connector, mounting bolt, or line contact point may only be visible from below.
Diagnosing a leak from surface oil alone
Oil can travel from another engine or accessory component. Leak diagnosis should identify the highest wet point and use suitable refrigerant-leak detection methods.
Forcing lines toward a replacement compressor
Incorrect port orientation or body configuration can place excessive stress on refrigerant lines and seals.
Replacement Fitment Checks Before Ordering
Compressor location and physical layout should be compared with the replacement part before installation.
Vehicle and engine identification
- Model year
- Make and model
- Engine size and engine code
- Drivetrain or production variation where applicable
Part-number verification
- OE number
- Interchange number
- Compressor manufacturer number where available
Physical compressor comparison
- Body shape
- Mounting-ear count and position
- Mounting-bolt spacing
- Pulley diameter
- Pulley groove count
- Pulley offset
- Clutch or clutchless design
- Electrical connector shape and location
- Suction and discharge port direction
- Pressure-switch or control-valve location
System compatibility
- Refrigerant type
- Compressor oil specification
- Control method
- Required drier, accumulator, or expansion-device service
- Contamination condition of the original system
For a complete purchasing and fitment process, read the replacement A/C compressor fitment guide.
Professional Location and Inspection Workflow
- Confirm the vehicle, engine, and compressor design.
- Review the accessory-belt routing.
- Trace the refrigerant lines to the compressor body.
- Determine whether access is best from above, below, or through the wheel well.
- Inspect the pulley, clutch, belt, and tensioner.
- Inspect refrigerant ports, fittings, and oil residue.
- Inspect the electrical connector and wiring.
- Inspect mounting ears, brackets, and alignment.
- Verify refrigerant, electrical, airflow, and pressure conditions.
- Compare the original compressor with the replacement before installation.
Service and Safety Notes
- Use approved lifting points and support equipment before working below a vehicle.
- Do not work near a rotating belt, pulley, or cooling fan.
- Cooling fans may operate unexpectedly under electronic control.
- Refrigerant should be recovered with approved equipment before line removal.
- System pressure can remain high after shutdown.
- Refrigerant contact can cause frostbite and eye injury.
- Hybrid and electric compressors may contain high voltage.
- Manufacturer service information should be followed for access and removal procedures.
FAQs
Q1: Where is the A/C compressor located in a car?
A1: It is usually mounted to the engine accessory drive near the serpentine belt, commonly at the front, lower front, or lower side of the engine.
Q2: How can the A/C compressor be identified?
A2: Look for a belt-driven pulley, two refrigerant-line connections, an electrical connector, and a cast aluminum body mounted to the engine.
Q3: Is the A/C compressor always visible from above?
A3: No. Many transverse-engine and compact vehicles require inspection from below or through the wheel well.
Q4: Is the A/C compressor near the alternator?
A4: It may be located near the alternator because both are part of the accessory drive, but exact placement varies by engine layout.
Q5: Why is the compressor often mounted low?
A5: Accessory packaging, belt routing, engine-bay space, line routing, and vehicle design determine the mounting position.
Q6: Does the compressor pulley always rotate?
A6: On many clutch-style systems, the pulley rotates whenever the engine belt moves, while the clutch plate turns only when the compressor is engaged.
Q7: Why is no compressor clutch visible?
A7: The system may use a clutchless, variable-displacement, hybrid, or electric compressor design.
Q8: Can the compressor be inspected from underneath?
A8: Yes. Lower mounting bolts, case leaks, connectors, and refrigerant-line routing may be easier to inspect from below.
Q9: What does oil around the compressor mean?
A9: It may indicate refrigerant-oil leakage from the compressor or fittings, but fluid from another component can also travel onto the compressor body.
Q10: Why does access require splash-shield removal?
A10: Splash shields often cover low-mounted compressors and protect the belt and accessory drive from road debris and water.
Q11: Can the A/C compressor be located by following the refrigerant lines?
A11: Yes. The suction and discharge lines connect directly to the compressor and provide a reliable identification path.
Q12: Where is the A/C compressor on a front-wheel-drive car?
A12: It is commonly mounted low on the front or side of the transverse engine and may require access from below.
Q13: Where is the A/C compressor on a pickup truck?
A13: It is commonly mounted on the front accessory drive and may be more visible from above than on a compact car.
Q14: Where is the compressor on a hybrid or electric vehicle?
A14: It may be mounted in the engine bay, on the subframe, or within a thermal-management area and may operate from high voltage without a belt.
Q15: Does compressor location affect replacement labor?
A15: Yes. Low mounting, limited bolt access, splash shields, wheel-well liners, fan assemblies, and subframe clearance can increase labor time.
Q16: What should be inspected after locating the compressor?
A16: Inspect the clutch or control system, pulley, belt, tensioner, refrigerant fittings, oil residue, connector, wiring, mounting ears, and bracket alignment.
Q17: Can a compressor be ordered by vehicle name alone?
A17: No. Match the year, engine, OE number, body shape, mounting points, pulley, connector, refrigerant ports, and control design.
Q18: Should refrigerant lines be bent to fit a replacement compressor?
A18: No. Forced line alignment usually indicates incorrect port orientation or compressor fitment and can damage the lines or seals.
Final Technical Summary
The A/C compressor is normally mounted on the engine accessory drive, but its exact location depends on engine orientation, vehicle layout, compressor design, and available space. Transverse-engine vehicles often require access from below, while longitudinal-engine cars and trucks may provide a clearer view from above.
Locating the compressor is only the beginning of the inspection. Clutch or control operation, pulley condition, belt alignment, refrigerant ports, electrical connections, mounting brackets, leaks, pressure behavior, airflow, and replacement fitment should all be verified before repair.
