Car A/C Clutch: How It Works and Why It May Not Engage

Car A/C Clutch Diagnosis Starts With One Important Distinction

A car A/C clutch is an electromagnetic coupling used on many belt-driven automotive air-conditioning compressors. Its purpose is to connect the rotating compressor pulley to the compressor shaft when cooling is requested and operating conditions are within the control system’s permitted range.

The pulley may rotate continuously with the accessory belt while the clutch plate remains stationary. Refrigerant compression begins only after the clutch plate is pulled into contact with the pulley and shaft rotation is transferred into the compressor.

A clutch that does not engage does not automatically confirm compressor failure. Low refrigerant pressure, excessive system pressure, a failed fuse, relay, wiring circuit, pressure-sensor input, control-module decision, clutch-coil fault, excessive air gap, or mechanical seizure can all prevent engagement.

For the compressor’s basic function, review what an A/C compressor does in a car. For the complete compressor operating sequence, see how a car A/C compressor works.

The A/C Clutch Is Only One Part of the Engagement Chain

Clutch engagement depends on a sequence of mechanical, electrical, refrigerant-pressure, and control conditions. A fault at any point in that chain can stop compressor operation.

The simplified engagement chain is:

A/C Request → Control-System Permission → Fuse and Relay Circuit → Clutch-Coil Power → Magnetic Force → Clutch-Plate Engagement → Compressor-Shaft Rotation

A/C request

The climate-control system requests compressor operation when cooling, dehumidification, or defrost logic requires refrigerant circulation.

Control-system permission

The control module may review several inputs before allowing engagement:

• Low- and high-side refrigerant pressure
• Ambient temperature
• Evaporator temperature
• Engine coolant temperature
• Engine speed and load
• Throttle position
• Cooling-fan availability
• Diagnostic trouble codes

Electrical power path

When operating conditions are acceptable, the clutch circuit receives power through the appropriate fuse, relay, wiring, and connector path.

Magnetic engagement

The energized clutch coil creates a magnetic field that pulls the clutch plate toward the rotating pulley. The remaining air gap closes, friction transfers pulley rotation to the hub, and the compressor shaft begins turning.

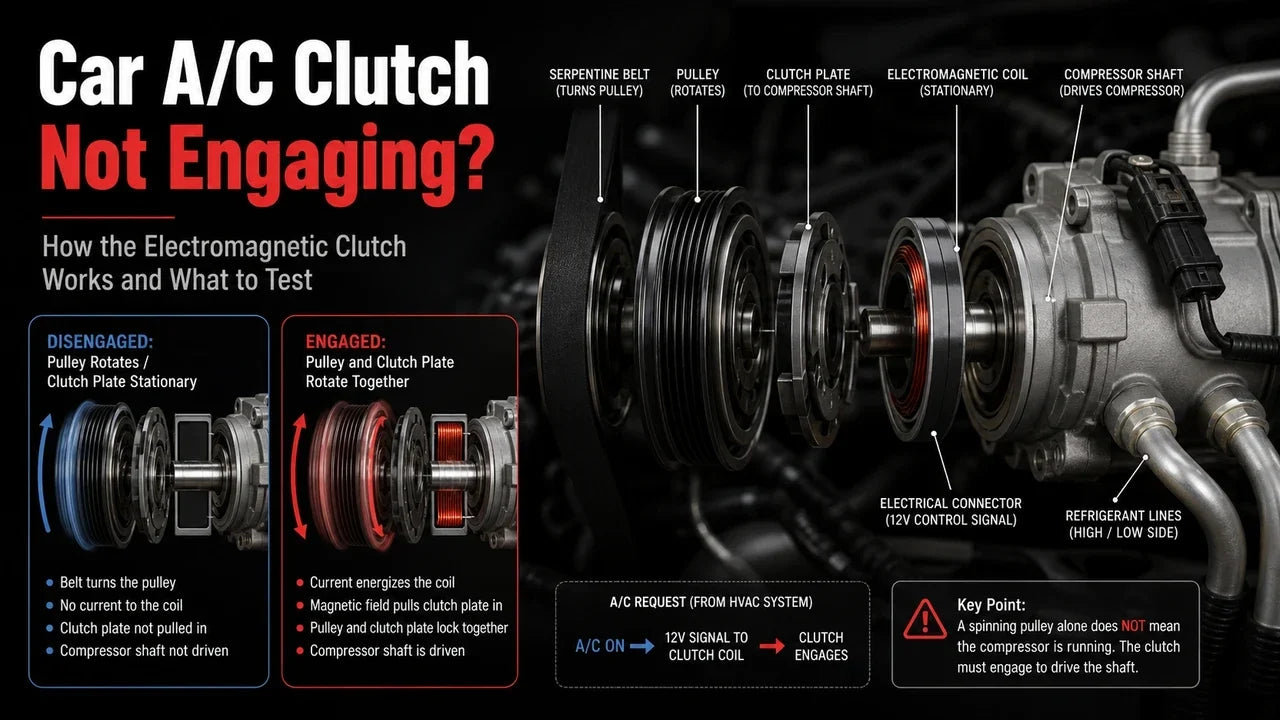

Inside the Electromagnetic Clutch Assembly

Clutch Component	Primary Function	Common Failure Evidence
Pulley	Rotates with the accessory belt	Wobble, heat discoloration, belt misalignment, rough rotation
Pulley bearing	Allows pulley rotation while the clutch is disengaged	Growling or grinding with A/C switched off
Clutch coil	Creates magnetic force when energized	Open circuit, shorted winding, heat damage, no magnetic pull
Clutch plate or hub	Connects pulley rotation to the compressor shaft	Slipping, heat spots, wear, weak engagement, broken hub
Air gap	Maintains clearance when disengaged	Excessive gap, intermittent engagement, weak pull-in when hot
Compressor shaft	Transfers clutch rotation to the internal pumping mechanism	Drag, seizure, internal noise, insufficient pressure output
Retaining hardware	Positions clutch components on the compressor nose	Loose plate, incorrect spacing, axial movement

How to Read Clutch Behavior Before Testing the Circuit

Pulley rotating, clutch plate stationary

This is normal when the compressor is not commanded on. It becomes a diagnostic condition only when an A/C command is present and the clutch should be engaged.

Clutch plate engages with a clear click

A clear engagement sound confirms mechanical movement, but it does not confirm correct refrigerant charge, compressor output, condenser airflow, or cabin cooling.

Clutch plate moves weakly or intermittently

Weak or delayed engagement may result from low voltage, poor ground, excessive air gap, heat-damaged coil windings, worn friction surfaces, or mechanical drag.

Clutch engages and releases repeatedly

Rapid cycling may result from low refrigerant charge, unstable pressure data, evaporator-temperature control, excessive system pressure, or normal operating strategy on some systems.

Clutch remains engaged but cooling is poor

Continuous engagement does not prove adequate compressor displacement. Refrigerant charge, pressure separation, control-valve operation, condenser airflow, expansion-device performance, and HVAC door position must still be evaluated.

The Five Diagnostic Branches of a Non-Engaging A/C Clutch

Branch 1: Refrigerant-pressure protection

The control system may block clutch engagement when pressure is below or above the permitted range.

Possible causes include:

• Active refrigerant leak
• Low refrigerant charge
• Overcharge
• Poor condenser airflow
• Condenser restriction
• Faulty pressure sensor
• Incorrect pressure-sensor signal

Static pressure alone does not confirm correct refrigerant quantity. Refrigerant recovery and weighing may be required.

Branch 2: Fuse, relay, and command circuit

A failed power or command circuit can stop engagement while the clutch and compressor remain mechanically serviceable.

Checks may include:

• A/C-related fuse condition
• Relay command and switched output
• Voltage drop across the circuit
• Control-module A/C request data
• Pressure-sensor data
• Ground integrity

Branch 3: Wiring and connector faults

Harness damage near the compressor is common because the wiring may be exposed to heat, oil, vibration, water, and moving belt components.

Inspection should include:

• Broken locking tabs
• Corroded terminals
• Loose pin fit
• Heat-damaged insulation
• Oil-saturated wiring
• Previous repairs or splices
• Harness contact with pulley or belt

Branch 4: Clutch-coil or air-gap fault

If command voltage and ground are present but the clutch does not engage, the clutch coil, coil resistance, magnetic pull, air gap, and clutch-plate condition require inspection.

Branch 5: Mechanical compressor drag or seizure

A clutch may fail to engage, slip, overheat, or create belt noise when the compressor shaft is heavily loaded or seized.

Mechanical evidence may include:

• Belt squeal during engagement
• Clutch-face heat discoloration
• Rapid belt tensioner movement
• Compressor shaft resistance
• Pulley or hub damage
• Metal debris in refrigerant oil

Electrical Evidence vs Mechanical Evidence

Observed Condition	More Likely Electrical or Control Cause	More Likely Mechanical Cause
No clutch movement and no voltage at connector	Fuse, relay, control command, pressure input, wiring	Mechanical condition not yet confirmed
Correct voltage and ground, no clutch movement	Open or weak clutch coil	Excessive air gap, stuck clutch plate
Clutch engages but slips	Low system voltage possible	Worn friction surface, excessive compressor load, incorrect air gap
Belt squeals immediately after engagement	Command circuit may be normal	Compressor drag, weak tensioner, pulley misalignment
Clutch engages but pressures barely change	Variable-control command issue possible	Weak internal compressor output or clutch slip
Clutch works cold but not after heat soak	Heat-sensitive coil resistance or voltage drop	Excessive air gap, thermal distortion, compressor drag

Workshop Scenario Files

Scenario 1: The pulley spins, but the clutch plate remains still

Pulley rotation is expected whenever the accessory belt is moving. The clutch plate should remain stationary until engagement is commanded.

When A/C operation is requested but the clutch plate remains still, the diagnostic sequence should include:

1. Confirm A/C request in scan data where available.
2. Check pressure-sensor input.
3. Verify relevant fuses.
4. Check relay command and output.
5. Measure clutch-coil voltage and ground.
6. Inspect connector and harness condition.
7. Measure clutch-coil resistance where specified.
8. Inspect clutch air gap.

Scenario 2: The clutch engages, but the vents remain warm

Engagement confirms that the compressor shaft is likely being driven, but it does not confirm that refrigerant is being compressed correctly.

Possible causes include:

• Low refrigerant charge
• Weak compressor output
• Clutch slip
• Variable-displacement control fault
• Poor condenser airflow
• Expansion-device restriction
• Blend-door fault

High-side and low-side pressure, refrigerant weight, condenser-fan operation, vent temperature, and HVAC door position should be evaluated together.

Scenario 3: The clutch engages and disengages every few seconds

Rapid cycling often indicates unstable pressure or temperature control. Low refrigerant charge is common, but pressure-sensor error, evaporator icing, inadequate airflow, or vehicle-specific control logic can produce similar behavior.

Required evidence may include:

• Recovered refrigerant weight
• Leak-test results
• High- and low-side pressure during cycling
• Evaporator-temperature data
• Pressure-sensor signal
• Ambient temperature

Scenario 4: The clutch works when cold but stops after the engine bay heats up

Heat-related intermittent engagement may result from clutch-coil resistance change, excessive air gap, relay heating, connector resistance, or voltage drop.

Testing should be repeated under the failed hot condition rather than only after the system cools.

Scenario 5: Belt squeal begins at the moment of engagement

Immediate belt squeal indicates increased accessory-drive load.

Inspection priorities include:

• Belt condition and contamination
• Tensioner movement
• Pulley alignment
• Clutch slip
• Compressor shaft resistance
• High-side pressure

Severe belt smoke, pulley wobble, or engine drag requires immediate shutdown and inspection.

Scenario 6: No clutch click is present after refrigerant recharge

Refrigerant addition does not restore engagement when the root cause is electrical, sensor-related, control-related, or mechanical.

Possible unresolved causes include:

• Blown fuse
• Failed relay
• Incorrect pressure-sensor input
• Open clutch coil
• Damaged wiring
• Excessive clutch air gap
• Compressor seizure

Scenario 7: The clutch engages when power is applied directly

Direct engagement proves that the clutch can move under that test condition, but it does not confirm that the control circuit, refrigerant charge, pressure protection, or compressor mechanical condition is correct.

Bypassing control logic can create compressor damage when system pressure or refrigerant quantity is unsafe. Manufacturer diagnostic procedures should be followed.

Scenario 8: The clutch plate is blue or heat-discolored

Heat discoloration may indicate prolonged slipping, excessive air gap, low voltage, worn friction surfaces, or excessive compressor load.

The compressor shaft, clutch air gap, voltage supply, belt system, and pressure conditions should be checked before replacing only the clutch components.

Scenario 9: The pulley bearing is noisy with A/C switched off

Noise while the clutch is disengaged often points toward the pulley bearing or another accessory-drive component rather than internal compressor pumping parts.

Inspection should include:

• Pulley bearing
• Idler pulleys
• Belt tensioner
• Alternator bearing
• Belt alignment

Scenario 10: A replacement clutch does not restore cooling

Replacing the clutch does not correct low refrigerant, internal compressor wear, control-valve failure, condenser airflow problems, restrictions, or HVAC faults.

Cooling performance should be verified through pressure, temperature, airflow, refrigerant weight, and electrical-command evidence.

Hot-Test and Cold-Test Differences

Some A/C clutch faults appear only after temperature changes. Testing should account for cold start, normal operating temperature, and heat-soak conditions.

Test Condition	Possible Finding	Diagnostic Value
Cold engine bay	Clutch engages normally	Does not rule out heat-related coil or air-gap fault
Normal operating temperature	Engagement becomes delayed	Check voltage drop, coil condition, and air gap
Heat soak after shutdown	No engagement after restart	Heat-sensitive electrical resistance or clearance change possible
High ambient temperature	High system pressure or fan demand	Verify condenser airflow and pressure protection

Voltage, Ground, and Coil Testing Principles

Voltage at the connector

Voltage should be measured while the clutch is commanded on. A normal open-circuit voltage reading may still collapse under load if resistance is present in the fuse, relay, connector, wiring, or ground path.

Ground integrity

A poor ground can reduce magnetic force and create weak or intermittent engagement. Voltage-drop testing under load is more useful than continuity testing alone.

Coil resistance

Clutch-coil resistance should be compared with the applicable service specification. An open circuit indicates a broken winding, while unusually low resistance may indicate an internal short.

Current draw

Current measurement can help identify coil or circuit problems, but expected values vary by application.

Air-gap measurement

Clutch air gap should be measured at multiple points around the plate. Excessive or uneven clearance may cause delayed, weak, or heat-sensitive engagement.

Why Refrigerant Pressure Can Disable the Clutch

The clutch circuit is commonly protected against operation at unsafe refrigerant pressure.

Low-pressure protection

Low refrigerant pressure may indicate a leak or insufficient charge. Disabling the clutch helps reduce the risk of poor oil circulation and compressor damage.

High-pressure protection

Excessive pressure may result from:

• Cooling-fan failure
• Condenser airflow restriction
• Overcharge
• Internal restriction
• Non-condensable gas

The control system may disengage the clutch until pressure returns to an acceptable range.

For the high- and low-pressure refrigerant path, review the car A/C system diagram covering the compressor, condenser, evaporator, and lines.

When the Clutch Is Not the Root Cause

Observed Condition	Possible Non-Clutch Cause	Required Verification
No engagement	Low refrigerant, high pressure, sensor input, control command	Pressure data, charge weight, scan data
Engagement but no cooling	Weak compressor output, low charge, restriction, blend door	Pressure, temperature, airflow, refrigerant quantity
Rapid cycling	Low charge, evaporator control, sensor instability	Leak test, pressure behavior, evaporator data
Squeal during engagement	Compressor drag, weak tensioner, belt contamination	Accessory-drive inspection and pressure test
Noise with clutch disengaged	Pulley bearing, idler, tensioner, alternator	Accessory bearing isolation

Clutch Repair vs Complete Compressor Replacement

Clutch-only service may be possible when:

• The compressor shaft rotates normally
• Internal compressor output is acceptable
• No metal contamination is present
• The compressor body is not leaking
• The pulley, coil, or clutch plate is serviceable separately
• Replacement clearances can be set correctly
• Application-specific service parts are available

Complete compressor replacement may be required when:

• The clutch is not serviced separately for the application
• The compressor shaft drags or is seized
• Internal mechanical noise is confirmed
• Pressure output remains weak after command and charge verification
• Metal debris is found in the refrigerant circuit
• The front seal or compressor body has an active leak
• The clutch and pulley are damaged together with internal wear
• The replacement assembly is supplied as a compressor with clutch

For internal damage and contamination evidence, review inside an A/C compressor: parts, internals, and failure clues.

Evidence Required Before Compressor Replacement

• Confirmed A/C request
• Verified fuse and relay operation
• Verified clutch-coil power and ground
• Pressure-sensor data consistent with gauge readings
• Correct refrigerant quantity or verified leak condition
• Measured clutch air gap where applicable
• Accessory-belt and tensioner inspection
• Confirmed compressor shaft condition
• High-side and low-side pressure analysis
• Oil and contamination inspection

Replacement Clutch and Compressor Fitment Checks

Clutch and compressor assemblies that appear similar may differ in pulley dimensions, connector design, coil resistance, mounting arrangement, refrigerant ports, and control strategy.

Clutch fitment

• Pulley diameter
• Pulley groove count
• Pulley offset
• Clutch-plate diameter
• Coil connector
• Coil mounting position
• Air-gap specification

Compressor fitment

• Vehicle year, make, model, and engine
• OE or interchange number
• Compressor type
• Mounting-ear position
• Suction and discharge port orientation
• Control-valve or clutch design
• Oil and refrigerant specification

For a complete fitment process, review the replacement A/C compressor fitment guide.

Professional A/C Clutch Diagnostic Sequence

1. Confirm whether the installed compressor uses a conventional clutch.
2. Verify the A/C request and control-module permission.
3. Review pressure-sensor data and refrigerant condition.
4. Inspect fuses, relay operation, wiring, and connectors.
5. Measure voltage and ground at the clutch connector under command.
6. Measure coil resistance or current where specified.
7. Inspect clutch-plate movement and air gap.
8. Inspect pulley bearing, belt, and tensioner behavior.
9. Confirm compressor-shaft rotation after engagement.
10. Evaluate high-side and low-side pressure.
11. Repeat testing under hot conditions if the fault is intermittent.
12. Determine whether clutch service or complete compressor replacement is justified.

Service and Safety Limits

• Do not place hands or tools near a moving belt, pulley, clutch, or cooling fan.
• Cooling fans may start unexpectedly under electronic control.
• Do not bypass pressure protection as a substitute for diagnosis.
• Direct clutch power should only be used when permitted by the service procedure.
• Refrigerant should be recovered with approved equipment before compressor removal.
• System pressure can remain high after shutdown.
• Clutch air gap, coil resistance, and circuit values vary by application.
• Clutchless and electric compressors require different diagnostic methods.

FAQs

Q1: What does a car A/C clutch do?

A1: It connects the rotating compressor pulley to the compressor shaft so the compressor can circulate refrigerant.

Q2: How does an A/C clutch work?

A2: An energized electromagnetic coil pulls the clutch plate against the rotating pulley, transferring rotation into the compressor shaft.

Q3: Why does the compressor pulley spin when the clutch is not engaged?

A3: The pulley rotates with the accessory belt while the clutch plate remains disconnected from the compressor shaft.

Q4: Why is the A/C clutch not engaging?

A4: Possible causes include low or high refrigerant pressure, a failed fuse, relay, wiring circuit, pressure sensor, clutch coil, excessive air gap, or compressor seizure.

Q5: Does no clutch click mean the compressor is bad?

A5: No. The electrical command, refrigerant pressure, fuse, relay, wiring, connector, and clutch coil must be checked first.

Q6: Can the clutch engage while the compressor is faulty?

A6: Yes. The clutch can drive the shaft even when internal wear prevents adequate refrigerant compression.

Q7: Why does the clutch cycle rapidly?

A7: Rapid cycling may result from low refrigerant, unstable pressure data, evaporator-temperature control, or application-specific operating logic.

Q8: Why does the clutch work when cold but fail when hot?

A8: Possible causes include heat-sensitive coil resistance, excessive air gap, relay heating, voltage drop, or thermal distortion.

Q9: Can excessive clutch air gap prevent engagement?

A9: Yes. Excessive clearance reduces magnetic pull and may cause delayed or intermittent engagement.

Q10: Why does the belt squeal when the clutch engages?

A10: Possible causes include compressor drag, belt slip, a weak tensioner, pulley misalignment, clutch slip, or excessive system pressure.

Q11: Can low refrigerant stop clutch engagement?

A11: Yes. Low-pressure protection may prevent engagement to reduce the risk of poor lubrication and compressor damage.

Q12: Can high refrigerant pressure stop the clutch?

A12: Yes. High-pressure protection may disable the clutch when condenser airflow, overcharge, restriction, or contamination causes excessive pressure.

Q13: Can a clutch coil be tested with resistance?

A13: Yes, but the measured value must be compared with the application-specific specification and should be supported by voltage and current testing.

Q14: Is direct power to the clutch a complete test?

A14: No. It only confirms that the clutch can move under the test condition and does not verify control logic, refrigerant pressure, or compressor condition.

Q15: Can the A/C clutch be replaced separately?

A15: Some applications allow separate clutch service, while others require replacement of the complete compressor assembly.

Q16: When should the complete compressor be replaced?

A16: Complete replacement may be required when the shaft is seized, internal output is weak, contamination is present, the compressor leaks, or the clutch is not separately serviceable.

Q17: Why is the pulley noisy when the A/C is off?

A17: Pulley-bearing wear, belt tensioner problems, idler noise, or accessory-drive misalignment may be responsible.

Q18: What should be checked before replacing the compressor?

A18: Verify refrigerant pressure and quantity, electrical command, fuse, relay, wiring, clutch coil, air gap, belt condition, shaft movement, pressure output, and contamination.

Final Technical Summary

The car A/C clutch is an electromagnetic connection between the belt-driven pulley and the compressor shaft. Engagement requires a valid A/C request, acceptable refrigerant pressure, correct control logic, a complete electrical circuit, sufficient magnetic force, correct air gap, and a mechanically serviceable compressor.

A non-engaging clutch should be separated into refrigerant-pressure, electrical-command, wiring, clutch-coil, air-gap, and mechanical branches before compressor replacement. An engaged clutch also does not confirm correct compressor output or complete A/C system performance.
