How Does a Car A/C Compressor Work?

Quick Answer

How does a car A/C compressor work?

A car A/C compressor draws low-pressure refrigerant vapor from the evaporator side of the air-conditioning system, compresses it into a high-pressure and high-temperature vapor, and sends it toward the condenser. This pressure increase allows the condenser to release heat and creates the pressure difference required for refrigerant to pass through the expansion device and absorb cabin heat inside the evaporator.

The compressor does not create cold air by itself. Cooling depends on correct refrigerant charge, compressor oil circulation, condenser airflow, expansion-device operation, evaporator airflow, electrical control, and unrestricted refrigerant flow.

On clutch-equipped systems, an electromagnetic clutch connects the pulley to the compressor shaft when cooling is requested and operating conditions are within the permitted range. Variable-displacement, clutchless, hybrid, and electric compressors may use different control strategies and may not produce an obvious clutch click.

For the basic role of this component, review what an A/C compressor is and what an A/C compressor does in a car.

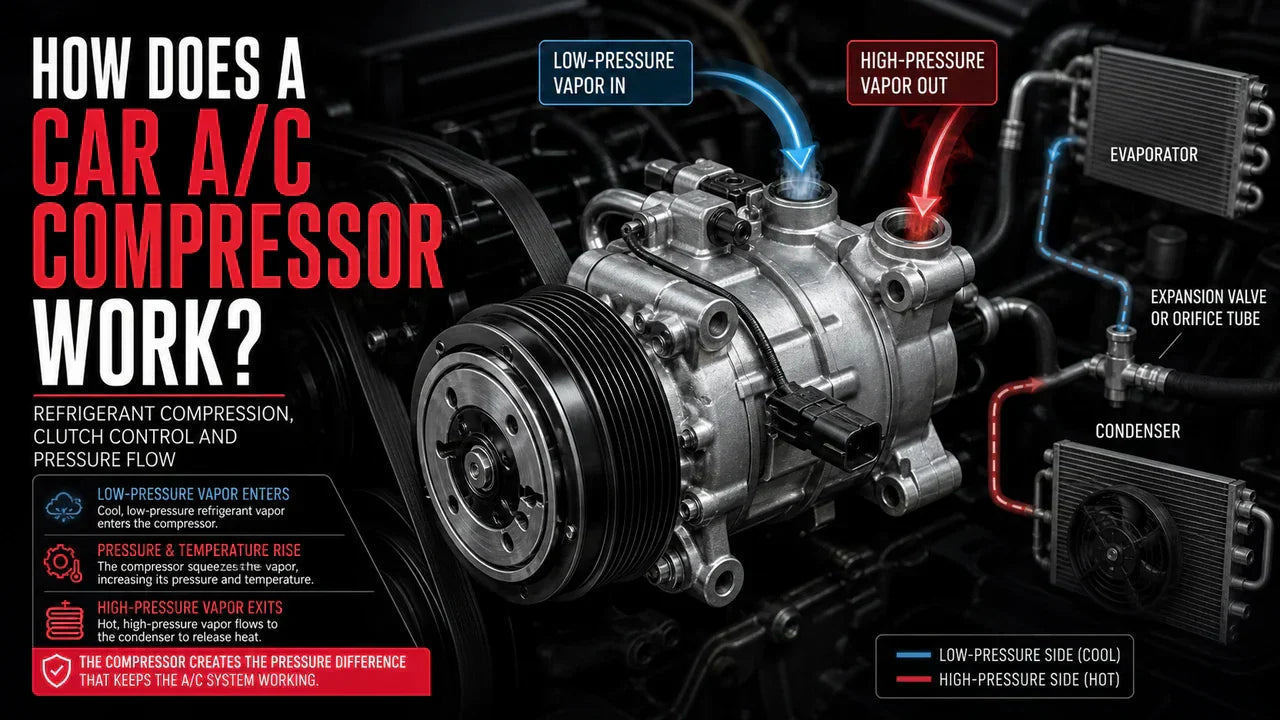

How a Car A/C Compressor Works in the Refrigerant Cycle

The automotive air-conditioning system operates as a closed refrigerant circuit. The compressor creates circulation and separates the system into a low-pressure side and a high-pressure side.

Step 1: Low-pressure refrigerant vapor returns from the evaporator

After absorbing heat inside the evaporator, refrigerant returns to the compressor as low-pressure vapor. The return line connects to the compressor suction port.

The compressor is designed to receive vapor rather than liquid refrigerant. Excessive liquid refrigerant entering the compressor can create severe mechanical stress because liquid cannot be compressed in the same way as vapor.

Step 2: The compressor raises refrigerant pressure and temperature

The internal pumping mechanism reduces the volume occupied by the refrigerant vapor. As the vapor is compressed, both pressure and temperature increase.

The exact internal mechanism depends on compressor design and may include:

• Pistons and a swash plate
• Scroll elements
• Rotary vanes
• Wobble-plate mechanisms
• Variable-displacement pumping assemblies

Step 3: High-pressure vapor flows to the condenser

High-pressure, high-temperature refrigerant leaves the compressor discharge port and travels toward the condenser.

The condenser transfers refrigerant heat to outside air. Adequate airflow through the condenser is essential, especially during idle and low-speed operation.

Step 4: The condenser removes heat

As refrigerant releases heat in the condenser, it changes from a high-pressure vapor toward a high-pressure liquid state.

Condenser performance depends on:

• Cooling-fan operation
• Airflow through the condenser fins
• Correct refrigerant charge
• Internal condenser flow
• Ambient temperature
• Engine-bay heat conditions

Step 5: The expansion device reduces refrigerant pressure

The expansion valve or orifice tube meters refrigerant into the evaporator and creates a substantial pressure drop.

This pressure reduction allows the refrigerant to absorb heat efficiently inside the evaporator.

Step 6: The evaporator absorbs cabin heat

Air passing across the evaporator transfers heat into the refrigerant. The refrigerant changes back toward a low-pressure vapor and returns to the compressor, allowing the cycle to continue.

For a visual component layout, see the car A/C system diagram covering the compressor, condenser, and evaporator.

The Refrigerant Path Through the A/C System

System Stage	Refrigerant Condition	Main Function	Typical Diagnostic Focus
Evaporator outlet	Low-pressure vapor	Returns refrigerant to the compressor	Suction-line temperature, superheat behavior, evaporator airflow
Compressor intake	Low-pressure vapor	Supplies refrigerant to the internal pumping mechanism	Low-side pressure, refrigerant charge, oil return
Compressor discharge	High-pressure, high-temperature vapor	Sends refrigerant toward the condenser	High-side pressure, discharge-line temperature, compressor output
Condenser outlet	High-pressure liquid	Transfers heat to outside air	Fan operation, condenser restriction, fin blockage
Expansion device	Rapid pressure reduction	Meters refrigerant into the evaporator	Restriction, icing, pressure relationship, temperature change
Evaporator	Low-pressure refrigerant	Absorbs heat from cabin air	Vent temperature, airflow, icing, blend-door position

How the Car A/C Clutch Works

Many belt-driven compressors use an electromagnetic clutch. The pulley rotates whenever the engine and accessory belt are moving, but the compressor shaft turns only when the clutch plate engages the pulley.

Main parts of an A/C compressor clutch

• Pulley
• Pulley bearing
• Electromagnetic clutch coil
• Clutch plate or hub
• Compressor shaft
• Clutch air gap

Clutch engagement sequence

1. The HVAC system requests cooling.
2. The control module checks refrigerant pressure, temperature, engine conditions, and other safety inputs.
3. Electrical current is supplied to the clutch coil.
4. The clutch coil creates a magnetic field.
5. The clutch plate is pulled against the rotating pulley.
6. The pulley transfers rotation to the compressor shaft.
7. The compressor begins circulating refrigerant.

Why the clutch may not engage

Clutch non-engagement does not automatically confirm compressor failure. The control system may prevent engagement because one or more operating conditions are outside the permitted range.

Common causes include:

• Low refrigerant pressure
• Excessively high refrigerant pressure
• Blown A/C fuse
• Failed compressor relay
• Damaged clutch-coil wiring
• Failed clutch coil
• Excessive clutch air gap
• Faulty pressure sensor or switch
• Engine overheating protection
• HVAC control-module fault
• Seized compressor shaft

For a complete electrical and mechanical diagnosis, review how the car A/C clutch works and why it may not engage.

A/C Clutch Conditions and Diagnostic Meaning

Observed Condition	Possible Meaning	Checks to Perform
No clutch click when A/C is requested	No command, open electrical circuit, pressure protection, or failed clutch coil	Fuse, relay, pressure data, clutch-coil voltage, ground, air gap
Clutch clicks but cooling remains weak	Compressor may not create sufficient pressure difference	High-side and low-side pressure, refrigerant weight, compressor output
Clutch engages and disengages rapidly	Pressure instability, low charge, sensor issue, or control strategy	Leak test, charge weight, pressure-sensor data, ambient conditions
Squeal occurs during engagement	Excessive compressor load, belt slip, or tensioner weakness	Belt condition, tensioner movement, pulley alignment, compressor drag
Clutch plate turns but pressures barely change	Weak internal compression or control-valve fault	Pressure response, displacement control, internal wear
Pulley is noisy with A/C switched off	Pulley-bearing or accessory-drive problem	Pulley bearing, idler, tensioner, belt alignment

Clutchless and Variable-Displacement Compressor Operation

Clutchless compressors may rotate continuously

Some modern belt-driven compressors do not use a conventional cycling clutch. The pulley and compressor shaft may rotate continuously while compressor output is controlled internally.

A rotating compressor does not confirm that correct refrigerant displacement is occurring.

Variable-displacement compressors adjust pumping capacity

A variable-displacement compressor changes internal pumping capacity according to cooling demand and control input. The system may reduce output instead of switching the compressor completely on and off.

Control methods may include:

• Mechanical pressure regulation
• Electronic control-valve command
• Pulse-width-modulated signals
• HVAC module control
• Engine control-module coordination

Diagnosis requires more than visual clutch inspection

Clutchless and variable-displacement systems may require:

• Scan-tool data
• Control-valve command testing
• Current or duty-cycle measurement
• High-side and low-side pressure analysis
• Line-temperature comparison
• Manufacturer-specific test procedures

The installed compressor design should be identified before applying a clutch-based diagnostic process.

How Electric A/C Compressors Work

Hybrid and electric vehicles may use an electrically driven compressor rather than an engine-driven belt and clutch.

An internal electric motor turns the compressor independently of engine speed. This allows cabin cooling when the gasoline engine is stopped or when no conventional engine is present.

Electric compressor service considerations

• High-voltage isolation procedures
• Correct electrically insulating compressor oil
• Compatible refrigerant service equipment
• High-voltage connector inspection
• Motor-current and control-data analysis
• Manufacturer-specific safety procedures

Incorrect oil can reduce electrical isolation and create a serious safety hazard. Hybrid and electric A/C compressor service should follow the vehicle manufacturer’s high-voltage procedures.

What Pressure Readings Reveal About Compressor Operation

High-side and low-side pressure readings help show whether the compressor is creating a usable pressure difference. However, pressure values must be interpreted with ambient temperature, humidity, engine speed, refrigerant type, blower setting, cooling-fan operation, and system design.

Pressure readings alone do not confirm refrigerant charge or compressor condition.

General Pressure Pattern	Possible Condition	Additional Checks
Low side remains high and high side remains low	Weak compressor output, internal leakage, or low displacement command	Control-valve command, clutch engagement, compressor design, refrigerant charge
Both sides are lower than expected	Low refrigerant charge or restricted refrigerant supply	Recover and weigh refrigerant, leak test, inspect expansion device
High side rises excessively	Poor condenser airflow, overcharge, restriction, or non-condensable gas	Cooling fans, condenser condition, charge weight, evacuation quality
Low side pulls unusually low	Expansion-device restriction, evaporator airflow problem, or low refrigerant flow	Line temperatures, evaporator airflow, icing, expansion-device condition
Pressures equalize rapidly after shutdown	May be normal for some systems or may indicate internal leakage	Compare with manufacturer procedure and system design
Pressures barely change after engagement	Compressor not pumping, clutch not driving the shaft, or displacement control fault	Clutch plate movement, shaft condition, control valve, compressor output

Why one pressure reading is not enough

Static pressure can indicate whether refrigerant is present, but it does not confirm correct refrigerant weight or compressor output. Dynamic high-side and low-side pressure must be evaluated while the system is operating under controlled conditions.

What a Professional A/C Compressor Test Includes

1. Confirm the exact operating condition

Identify whether the system has no cooling, weak cooling, intermittent cooling, clutch non-engagement, abnormal noise, belt drag, or refrigerant leakage.

2. Identify the compressor design

Determine whether the system uses a cycling clutch, variable-displacement compressor, clutchless compressor, or high-voltage electric compressor.

3. Verify refrigerant quantity

Pressure alone does not confirm correct charge. Recovering and weighing the refrigerant may be necessary when charge quantity is uncertain.

4. Check clutch or control command

Verify A/C request, clutch command, control-valve signal, pressure-sensor data, fuses, relays, wiring, and diagnostic trouble codes.

5. Measure high-side and low-side pressure

Compare pressure behavior with ambient conditions, engine speed, cooling demand, and manufacturer specifications.

6. Inspect condenser airflow

Verify cooling-fan operation and inspect the condenser for debris, bent fins, internal restriction, or installed components that block airflow.

7. Compare refrigerant-line temperatures

Line temperature can help identify abnormal heat rejection, restriction, weak compression, or incorrect refrigerant flow.

8. Inspect belt and tensioner behavior

Check for belt slip, tensioner oscillation, pulley misalignment, bearing noise, or excessive compressor load.

9. Inspect for refrigerant-oil leakage

Check the compressor front seal, case joints, ports, hose fittings, condenser, and service ports.

10. Evaluate the complete HVAC system

Confirm evaporator airflow, cabin-air filter condition, blower operation, blend-door position, and outlet temperature before condemning the compressor.

How a Car A/C Compressor Works in Real-World Operating Scenarios

Scenario 1: The compressor clutch engages, but the vents remain warm

Clutch engagement confirms that the pulley is connected to the compressor shaft, but it does not prove that adequate refrigerant compression is occurring.

Possible causes include:

• Low refrigerant charge
• Internal compressor wear
• Failed variable-displacement control valve
• Restricted expansion device
• Poor condenser airflow
• Blend-door fault

High-side and low-side pressure, vent temperature, refrigerant quantity, and condenser airflow should be checked before replacing the compressor.

Scenario 2: The pulley rotates, but the clutch plate does not move

On a clutch-equipped compressor, pulley rotation is normal whenever the accessory belt is moving. Compressor pumping begins only when the clutch plate engages.

Diagnostic checks should include:

• A/C request signal
• Clutch-coil voltage and ground
• Fuse and relay
• Pressure-sensor values
• Clutch air gap
• Clutch-coil resistance

Scenario 3: The A/C cools at road speed but becomes warm at idle

This pattern commonly points to insufficient condenser airflow rather than immediate compressor failure. Road speed forces air through the condenser, while idle operation depends heavily on the cooling fan.

Inspect:

• Condenser-fan operation
• Fan speed and direction
• Condenser blockage
• High-side pressure at idle
• Refrigerant charge
• Compressor output at different engine speeds

Scenario 4: The clutch cycles rapidly

Rapid clutch cycling may result from low refrigerant charge, unstable pressure-sensor data, insufficient evaporator airflow, abnormal ambient conditions, or the control strategy used by the vehicle.

Repeated cycling should not be diagnosed by clutch behavior alone. Refrigerant weight, pressure data, evaporator temperature, and control commands should be evaluated together.

Scenario 5: Belt squeal begins when the clutch engages

Engagement adds compressor load to the accessory drive. Squeal may result from a binding compressor, slipping belt, weak tensioner, pulley misalignment, or contaminated belt surface.

Severe drag, belt smoke, or pulley wobble requires immediate inspection.

Scenario 6: The system became warm again after recharge

Temporary cooling improvement followed by recurring warm air commonly indicates an unrepaired refrigerant leak.

Leak inspection should include:

• Compressor front seal
• Compressor ports and O-rings
• Hose crimps
• Condenser
• Service ports
• Evaporator where applicable

Scenario 7: A new compressor does not produce correct cooling

Weak cooling after compressor replacement may result from:

• Incorrect refrigerant charge
• Incorrect oil quantity
• Air or moisture remaining in the system
• Condenser restriction
• Weak cooling-fan airflow
• Expansion-device restriction
• Contamination from the previous compressor
• Incorrect compressor fitment
• Control valve not receiving the correct command

Scenario 8: Pressures do not separate after compressor engagement

If the low-side and high-side pressures remain close together after confirmed engagement, the compressor may not be creating adequate displacement.

However, clutch slip, control-valve command, low refrigerant, incorrect testing conditions, or an incorrect compressor design should also be considered.

Scenario 9: The compressor makes noise only when A/C is active

Noise that begins after clutch engagement may involve internal compressor wear, clutch drag, belt tensioner load, or pulley alignment.

Noise that remains with the A/C switched off is more likely to involve the pulley bearing, belt, idler, tensioner, or another accessory-drive component.

Scenario 10: Metal debris is found in the refrigerant circuit

Metal debris indicates internal mechanical damage and changes the repair from a single-component replacement to a system-level contamination repair.

Inspection may be required for:

• Condenser
• Receiver-drier or accumulator
• Expansion valve or orifice tube
• Refrigerant hoses and lines
• Oil condition and quantity
• Components that can or cannot be flushed

For a closer examination of internal mechanisms and failure evidence, read inside an A/C compressor: parts, internals, and failure clues.

Common A/C Compressor Failure Patterns

Mechanical wear

Mechanical wear can reduce pumping efficiency, create abnormal noise, increase friction, or release metal particles into the refrigerant circuit.

Possible evidence includes:

• Weak pressure separation
• Grinding or rattling during operation
• Metal debris in refrigerant oil
• Contamination in an orifice-tube screen
• Excessive shaft resistance
• Abnormal discharge-line temperature

Refrigerant or oil leakage

Oil residue around the front seal, compressor body, line fittings, or ports may indicate refrigerant leakage. A significant leak can reduce refrigerant quantity and limit oil circulation.

Electrical engagement fault

A failed fuse, relay, clutch coil, wiring circuit, pressure sensor, or control-module command can prevent engagement while the compressor remains mechanically serviceable.

Control-valve failure

A sticking or electrically failed control valve can prevent a variable-displacement compressor from producing the required output even though the shaft is rotating.

Liquid refrigerant entry

Liquid refrigerant entering the compressor may cause severe internal stress. Possible contributing conditions include overcharge, incorrect expansion-device operation, poor evaporator heat transfer, or incorrect system servicing.

Contamination and poor lubrication

Incorrect oil, insufficient oil circulation, moisture, debris, or refrigerant contamination can damage internal compressor surfaces and control components.

A/C Compressor vs Condenser During Diagnosis

Component	Main Function	Common Diagnostic Pattern
A/C compressor	Raises refrigerant pressure and circulates refrigerant	Weak pressure separation, noise, seizure, control failure, or leakage
Condenser	Releases refrigerant heat to outside air	High high-side pressure, weak cooling at idle, fan-related problems, or physical blockage

For a detailed comparison, review A/C compressor vs condenser warm-air diagnosis.

Where the A/C Compressor Is Located

On most gasoline and diesel vehicles, the compressor is mounted on the front or side of the engine and driven by the accessory belt. The exact position depends on engine layout, vehicle platform, mounting brackets, and available engine-bay space.

Hybrid and electric compressors may be mounted separately and connected to the high-voltage electrical system rather than the accessory belt.

For identification and access guidance, see where the A/C compressor is located in a car.

What to Check Before Replacing an A/C Compressor

• Confirm the compressor design and control strategy
• Verify refrigerant charge by specified weight
• Locate and repair active refrigerant leaks
• Confirm clutch or control-valve command
• Check high-side and low-side pressure behavior
• Verify cooling-fan and condenser airflow
• Inspect the accessory belt, tensioner, and pulley alignment
• Check expansion-device operation
• Inspect refrigerant oil for debris or discoloration
• Determine whether the condenser, drier, accumulator, or expansion device requires replacement
• Confirm correct oil type and quantity
• Verify the replacement compressor’s pulley, connector, ports, and mounting points

Choosing the Correct Replacement Compressor

A replacement A/C compressor must match the complete vehicle application and physical configuration. Vehicle name alone is not sufficient.

Confirm:

• Year, make, model, and engine
• OE or interchange number
• Fixed- or variable-displacement design
• Clutch, clutchless, or electric operation
• Pulley diameter and groove count
• Electrical connector
• Refrigerant port position and fitting design
• Mounting-ear layout
• Oil specification
• Refrigerant specification

For a full selection checklist, read the replacement A/C compressor fitment guide.

FAQs

Q1: How does a car A/C compressor work?

A1: It draws in low-pressure refrigerant vapor, compresses it into a high-pressure and high-temperature vapor, and sends it toward the condenser.

Q2: Does an A/C compressor create cold air?

A2: No. It creates refrigerant pressure and circulation. Cooling results from the complete cycle of heat rejection at the condenser and heat absorption at the evaporator.

Q3: How does an A/C compressor clutch work?

A3: An energized clutch coil creates magnetic force that pulls the clutch plate against the rotating pulley, connecting the pulley to the compressor shaft.

Q4: Does the compressor pulley always spin?

A4: On many clutch-equipped systems, the pulley spins whenever the accessory belt moves, but the compressor shaft turns only when the clutch engages.

Q5: Why does the A/C clutch not engage?

A5: Possible causes include low or high refrigerant pressure, a failed fuse, relay, clutch coil, wiring circuit, pressure sensor, excessive clutch air gap, or compressor seizure.

Q6: Can the clutch engage while the compressor is still bad?

A6: Yes. The clutch may drive the shaft even when internal wear prevents the compressor from creating adequate pressure.

Q7: How does a clutchless A/C compressor work?

A7: The compressor may rotate continuously while an internal mechanical or electronic control valve adjusts refrigerant displacement.

Q8: How does a variable-displacement compressor work?

A8: It changes internal pumping capacity to match cooling demand instead of relying only on repeated clutch cycling.

Q9: What pressure pattern suggests weak compressor output?

A9: A low side that remains relatively high and a high side that remains relatively low may indicate weak compression, but charge level and control-valve operation must also be checked.

Q10: Why does the A/C cool while driving but not at idle?

A10: Insufficient condenser airflow at idle is a common cause. Cooling-fan operation, condenser blockage, refrigerant charge, and compressor output should be evaluated.

Q11: Why does the clutch cycle rapidly?

A11: Rapid cycling may result from low refrigerant, unstable pressure data, evaporator airflow problems, or the vehicle’s normal control strategy.

Q12: Why does the belt squeal when the A/C engages?

A12: Possible causes include compressor drag, belt slip, weak tensioner, pulley misalignment, or contamination on the belt surface.

Q13: Can low refrigerant damage the compressor?

A13: Yes. Low refrigerant can reduce oil circulation and increase internal wear.

Q14: What happens if metal debris is found in the A/C system?

A14: The condenser, drier or accumulator, expansion device, lines, and oil condition must be evaluated before a replacement compressor is installed.

Q15: How does an electric A/C compressor work?

A15: An electric motor drives the compressor independently of engine speed, allowing cooling when the engine is stopped or absent.

Q16: What should be checked before replacing an A/C compressor?

A16: Check refrigerant quantity, leaks, clutch or control command, pressure behavior, condenser airflow, belt condition, oil, contamination, and complete compressor fitment.

Final Technician Recommendations

Confirm how the installed compressor is controlled

Clutch-equipped, clutchless, variable-displacement, and electric compressors require different diagnostic methods. Compressor design should be identified before testing begins.

Evaluate pressure as part of the complete system

High-side and low-side pressure must be interpreted with refrigerant charge, ambient temperature, condenser airflow, engine speed, line temperature, and control command.

Do not diagnose compressor failure from clutch behavior alone

A non-engaging clutch may result from electrical or pressure protection, while an engaged clutch does not confirm adequate internal compression.

Treat internal failure as a contamination concern

Metal debris or degraded oil requires inspection of the condenser, receiver-drier or accumulator, expansion device, and refrigerant lines before replacement.

Verify complete replacement fitment

Match the engine, OE number, compressor design, pulley, connector, ports, mounting points, refrigerant, and oil specification before installation.
